G mesh cable tray Magic® 75 A2
Type G-GRM 75 50 A2 | Item no. 6005553 | EAN 4012195686484
Item no. / Type
6005553 / G-GRM 75 50 A2
Maintain electrical functions
no
Smallest selling unit: 3 m
3m
Description
G-shaped mesh cable tray made of spot-welded steel wire with different side heights and widths.
Direct wall or ceiling mounting possible. Load capacity details regarding the different mounting methods are available upon request.
Magnetic shield insulation 15 dB.
Direct wall or ceiling mounting possible. Load capacity details regarding the different mounting methods are available upon request.
Magnetic shield insulation 15 dB.
Technical data

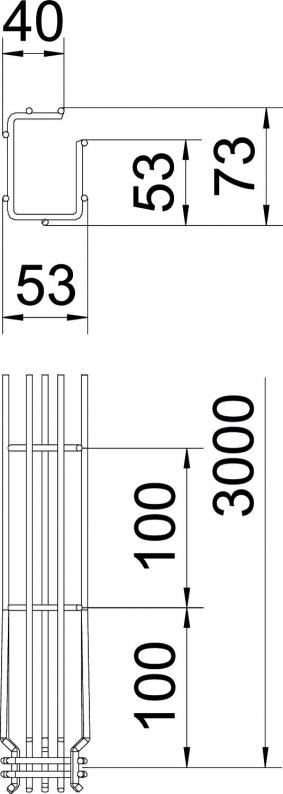

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 50 mm |
| Height | 75 mm |
| Dimension A | 53 mm |
| Dimension B | 53 mm |
| Dimension H | 73 mm |
| Dimension C | 38 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Integrated connector |
| Wide-span version | no |
| Usable cross-section | 22 cm² |
| Rustproof steel, pickled | yes |
| Usable cross-section | 2200 mm² |
| Integrated partition | Without |
| Screwless connector | yes |
| Profile shape | G-shaped |
| Wire diameter | 3,9 mm |
| Dimension | 75x50x3000 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
| Load test type according to IEC 61537 | Type II |
| Type of connector, cable support system | Click fastening |
| CO2 Footprint (GWP) Cradle-to-Gate | 4,0695 kg CO2e / 1 Meter |
