Fuse holder for FireBox T series
Type TE-FH 520 | Item no. 7205570 | EAN 4012195993162
Item no. / Type
7205570 / TE-FH 520
Connection type
Screw connection
Smallest selling unit: 1 piece
1piece
Description

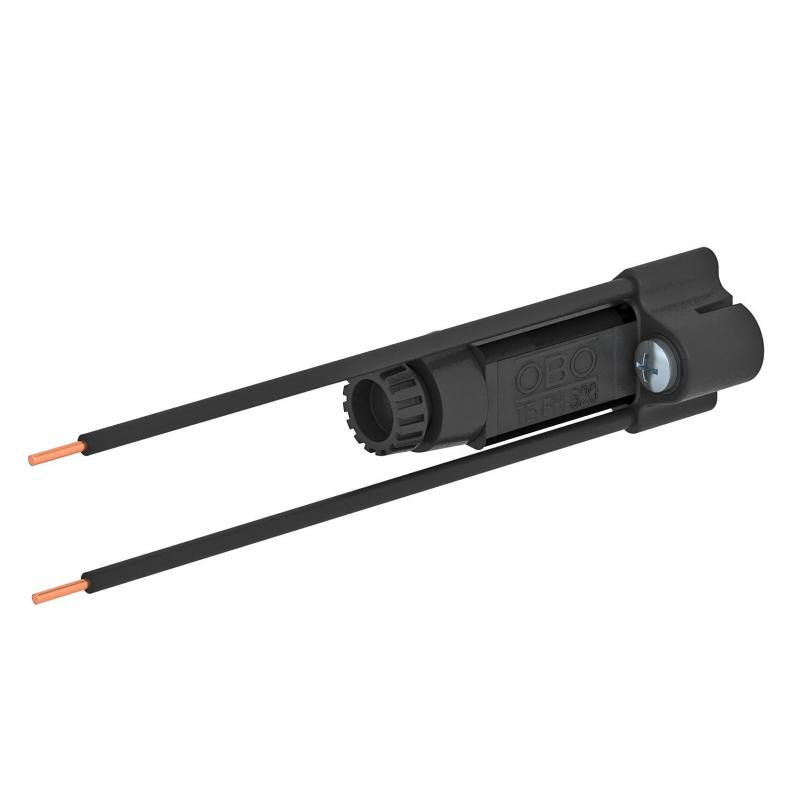

Fuse holder with bayonet lock for fine-wire fuse for dimensions Ø 5 x 20 mm. Connection wires that maintain electrical functionality with nominal cross-section 2.5 mm², ready-stripped. For mounting on one of the exposed domes in the junction box of the FireBox T series using the supplied screw.
Technical data
Technical data
| Maintain electrical functions | yes |
|---|---|
| Connection type | Screw connection |

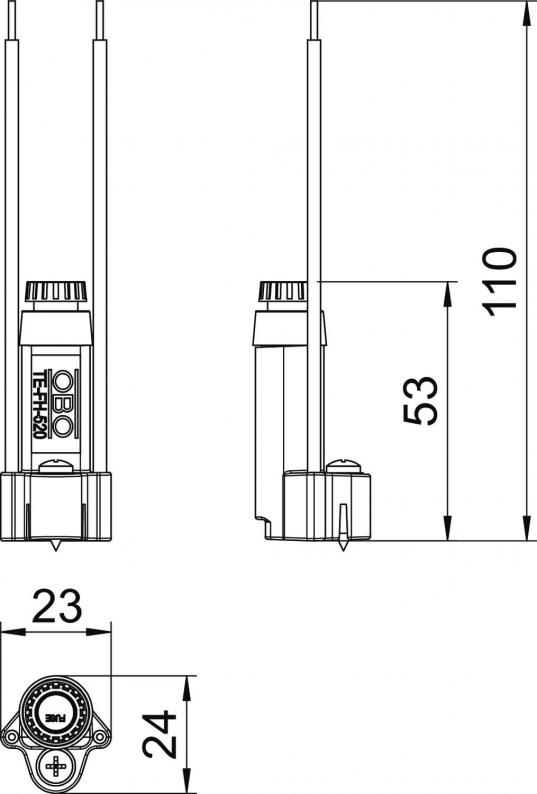

| Dimensions of the fine-wire fuse | 5 x 20 mm |
| Material | Steatit |
| Colour | Cream |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0784 kg CO2e / 1 Piece |
