Frame cassette for inspection opening, RK, nominal size 350-3, brass

Frame cassette for inspection opening, RK, nominal size 350-3, brass

Type RK M3 20
|
Item no. 7405876
|
EAN 4012195105763
Show all variants
Item no. / Type
Floor covering thickness
Dimension h

This item is a discontinued product!

Smallest selling unit: 1 piece

piece

Description

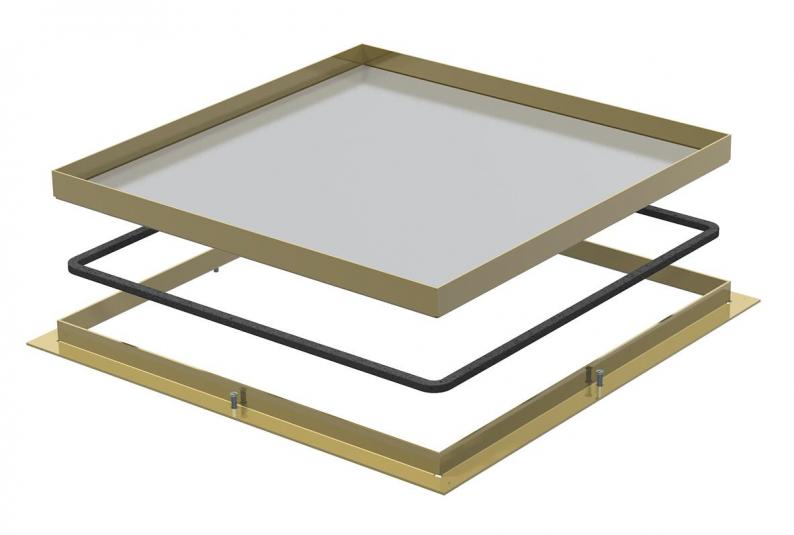

“Blank” frame cassette for the creation of an inspection opening in the UZD350-3 in dry or wet-cleaned floors indoors. Only suitable for smooth floor coverings.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives

Technical data

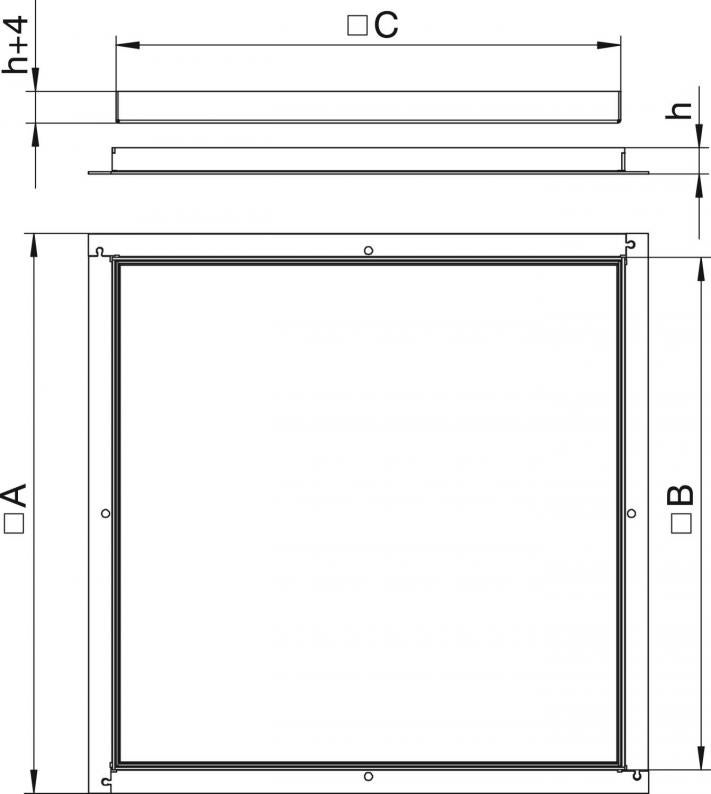

Dimensions

Dimension A424 mm
Dimension B388 mm
Dimension C382 mm
Dimension h20 mm

Technical data

Floor covering thickness18 mm
Floor careWet
Cable outlet versionNo cable outlet
Number of cable outlets0
Device support to accept mounting boxesno
Dimension383x383x20
MaterialBrass

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (2)
Certificates (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Floor covering thickness
Dimension h
RK M3 15
Item no.
7405872
Floor covering thickness
13
Dimension h
15
RK M3 20
Item no.
7405876
Floor covering thickness
18
Dimension h
20
RK M3 25
Item no.
7405880
Floor covering thickness
23
Dimension h
25
