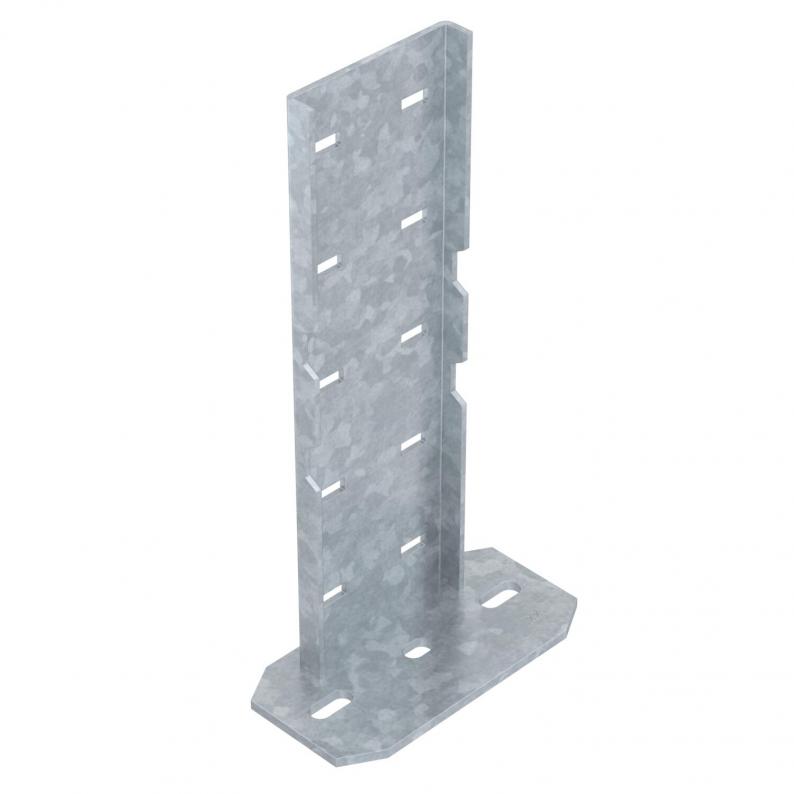

Foot plate for wide-span systems
Type WFP 110 FT | Item no. 6232500 | EAN 4012196423583
Item no. / Type
6232500 / WFP 110 FT
Smallest selling unit: 1 piece
1piece
Description
Base plate for accepting wide span systems, for example, for vertical routing of wide span cable trays.
Including appropriate bolts, washers and nuts.
Technical data
Dimensions
| Length | 380 mm |
|---|---|
| Width | 200 mm |
| Height | 110 mm |
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Angle range, max. | 90 mm |
| Angle range, min. | 90 mm |
| Suitable for panel fastening | no |
| Suitable for profile shapes | C profile |
| Version for | Screw head plate |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 6,7206 kg CO2e / 1 Piece |
