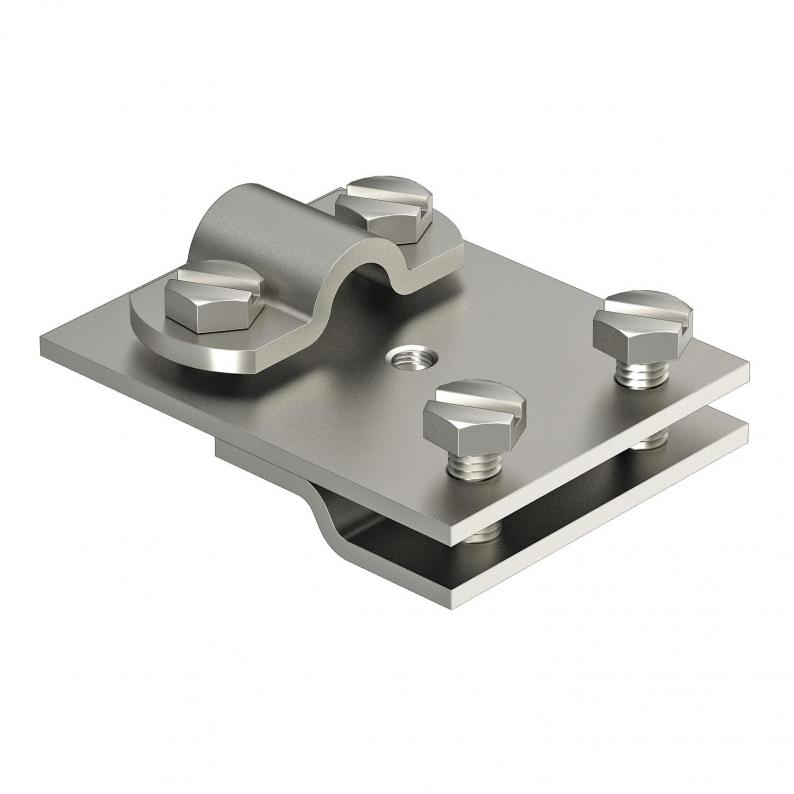

Folding clamp up to 5 mm plate thickness A2
Type 271 8-10 VA | Item no. 5317481 | EAN 4012195850861
Item no. / Type
5317481 / 271 8-10 VA
Smallest selling unit: 10 piece
10piece
Description
• Plate thickness to 5 mm

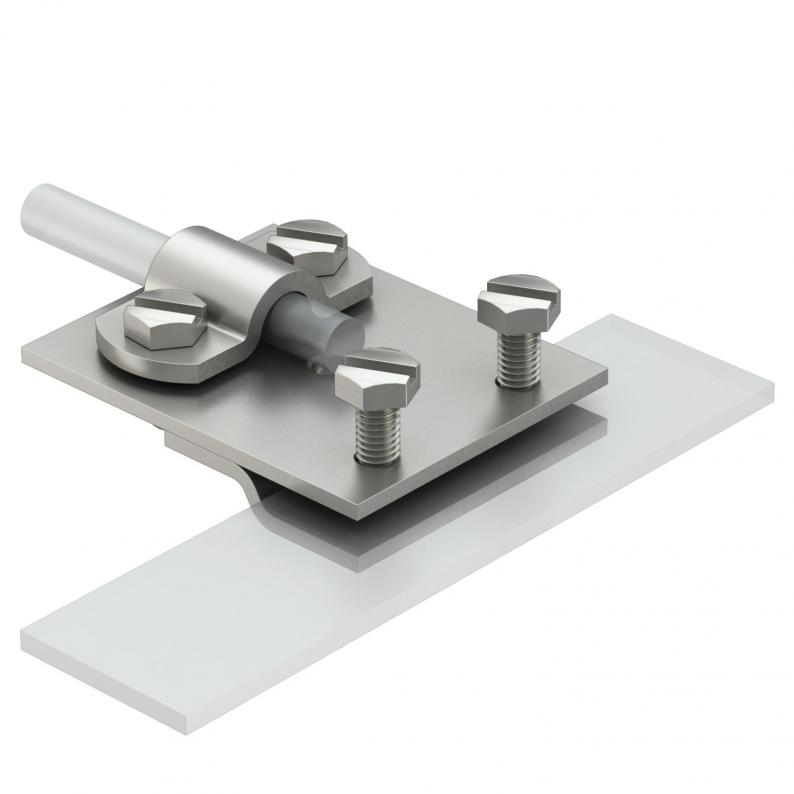

• For conductor routing transverse and longitudinal to plate
• With 4 hexagonal bolts M6 x 12
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)
• 271 Cu: with hexagonal bolts stainless steel (VA)
• For conductor routing transverse and longitudinal to plate
• With 4 hexagonal bolts M6 x 12
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)
• 271 Cu: with hexagonal bolts stainless steel (VA)
Technical data
Technical data
| Type of fastening screw | Hexagonal bolt |
|---|---|
| Type of connector | Folding clamp |
| Lightning current carrying capacity | N/50 kA |
| Fit | Rd 8-10 mm |
| Dimension | 8/10mm |
| Material | Stainless steel 1.4301 |
| Clamping range, max. | 5 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,6783 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Product images (3)
3D data downloads (3)
Tender specifications (2)
Variants
Type
Fit
Clamping range, max.
Item no.
271 8-10 VA
Rd 8-10
5
5317481
271 8-10 VA
Item no.
5317481
Fit
Rd 8-10
Clamping range, max.
5
