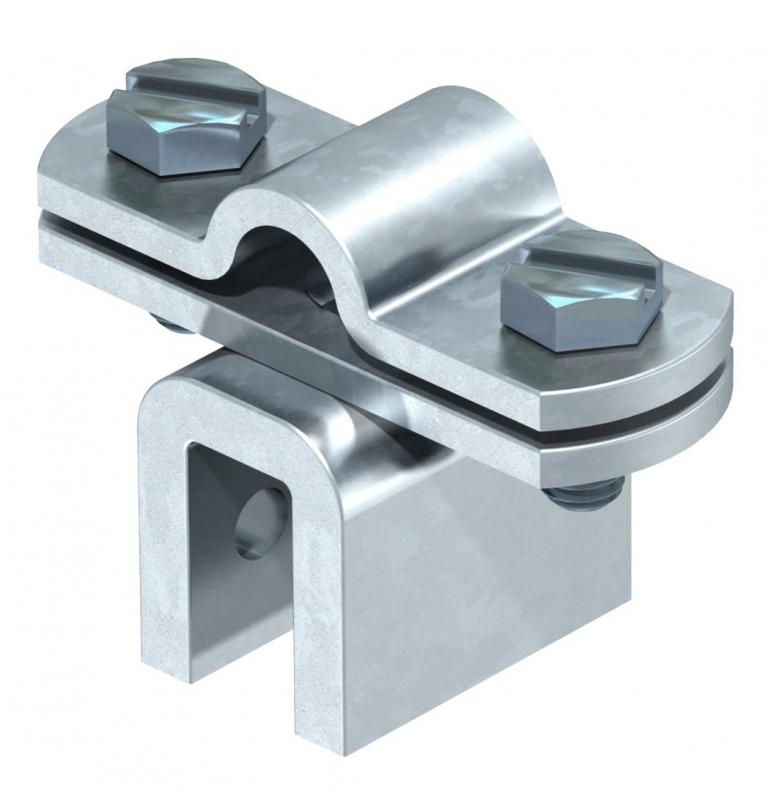

Folding clamp Rd 8-10 up to 10 mm plate thickness FT
Type 270 8-10 FT
|Item no. 5317207
|EAN 4012195420552
Item no. / Type
5317207 / 270 8-10 FT
Smallest selling unit: 20 piece
20piece
piece
Description
• Metal thickness to 10 mm

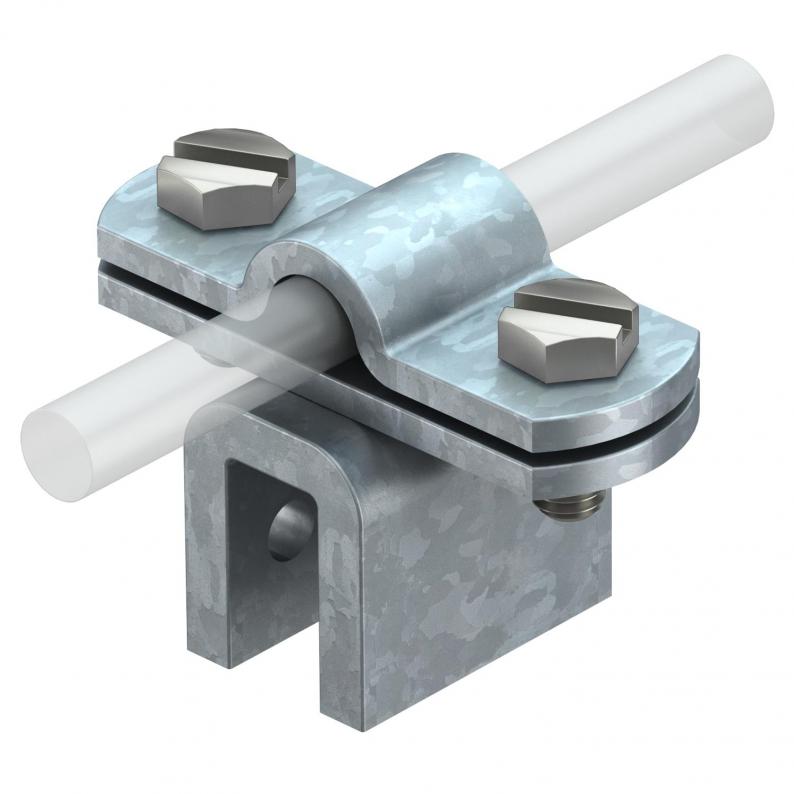

• For conductor routing transverse and in parallel to the plate
• Corresponds to the requirements to DIN V VDE V 0185-3 section 4.5
• For conductor routing transverse and in parallel to the plate
• Corresponds to the requirements to DIN V VDE V 0185-3 section 4.5
Technical data
Technical data
| Type of fastening screw | Hexagonal bolt |
|---|---|
| Type of connector | Folding clamp |
| Lightning current carrying capacity | N/50 kA |
| Fit | Rd 8-10 mm |
| Dimension | 8/10mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Clamping range, max. | 10 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3479 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Product images (3)
3D data downloads (2)
Tender specifications (2)
Variants
Type
Fit
Clamping range, max.
Item no.
270 8-10 FT
Rd 8-10
10
5317207
270 8-10 FT
Item no.
5317207
Fit
Rd 8-10
Clamping range, max.
10
