Flush-mount unit for data technology, type RM

Type DTE-RW G2RM1 | Item no. 6119490 | EAN 4012196410415

Data sheet (PDF)

Declaration of conformity (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Show all variants

Item no. / Type

6119490 / DTE-RW G2RM1

With dust protection

yes

Colour

Pure white; RAL 9010

Smallest selling unit: 1 piece

Description Technical data Downloads Variants

Description

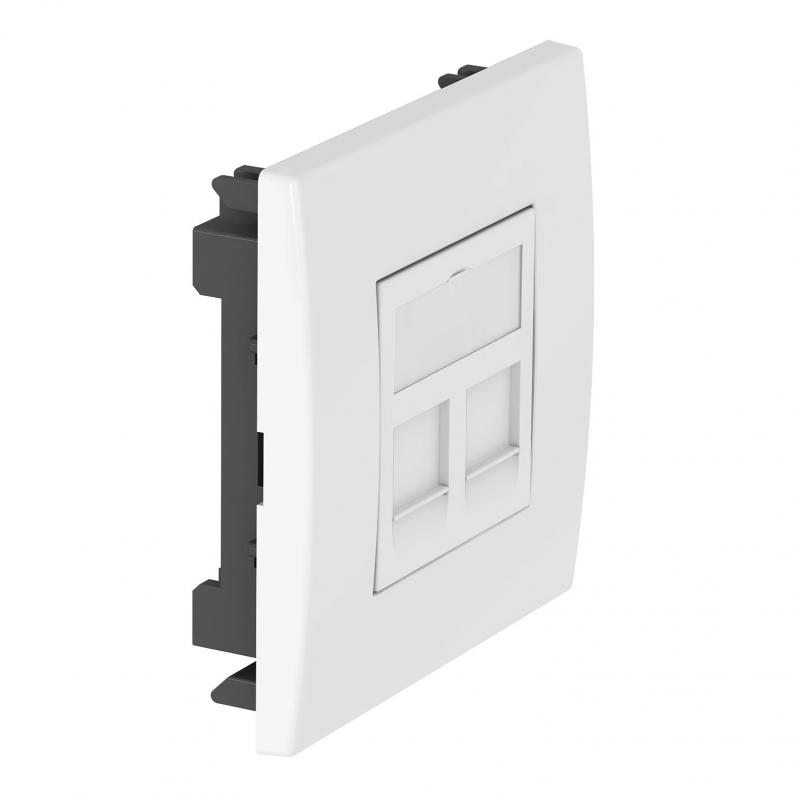

Installation unit to accommodate two type RM data technology modules, suitable for installation in Rapid 80 device installation trunking systems and ISS service poles. The type RM data technology support is suitable for accepting the following data connection modules: OBO (type): ASM-C5, ASM-C5 G, ASM-C6 and ASM-C6 G; R&M: Cat. 5 and Cat. 6 modules without support plate.

Installation unit, consisting of:
- Mounting support, single, type 71MT1 45
- Data technology support, straight outlet, type DTG-2RM, colour: see table
- Cover frame AR45, single, without labelling panel, colour: pure white

For installation in Rapid 80 device installation trunking and ISS service poles.

Technical data

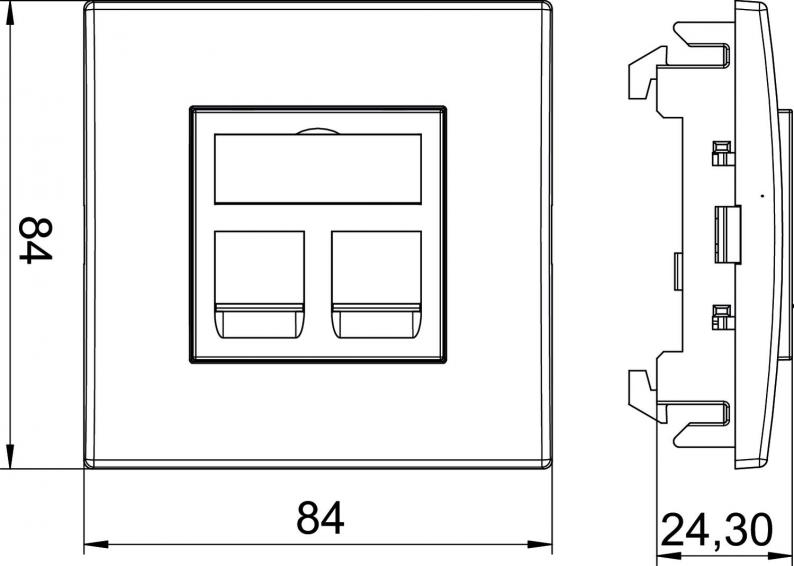

Dimensions

Length	84 mm
Width	84 mm

Technical data

Hinged cover	no
Halogen-free	yes
Strain relief option	no
Protection rating	IP20
Support ring	no
With dust protection	yes
With printed label	no
Lamp-wire connector	no
Depth	24,3 mm
Surface version	Matt
Transparent	no
Combination	Basic element with full cover plate
Use	Modular jack
Labelling panel	With labelling panel
Mounting type	Device installation duct
Dimension	84x84x59mm
Material	Polycarbonate
Colour	Pure white; RAL 9010
CO2 Footprint (GWP) Cradle-to-Gate	0,4299 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)

Catalogues & Flyers (1)

Declarations (3)

Product images (2)

Tender specifications (2)

Variants

DTE-RW G2RM1

Item no.

6119490

With dust protection

yes

Colour

Pure white; RAL 9010
