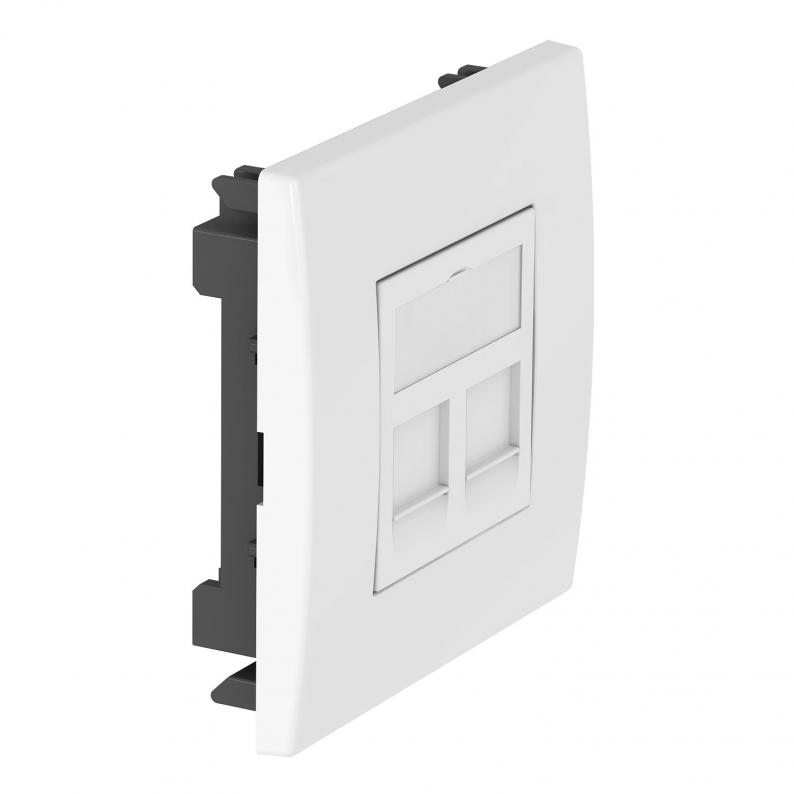

Flush-mount unit for data technology, type A

Flush-mount unit for data technology, type A

Type DTE-RW G2A1
|
Item no. 6119494
|
EAN 4012196439041
Show all variants
Item no. / Type
6119494 / DTE-RW G2A1
With dust protection
yes
Colour
Pure white; RAL 9010

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

Installation unit to accommodate two type A data technology modules, suitable for installation in Rapid 80 device installation trunking systems and ISS service poles. The type A data technology support is suitable for accepting the following data connection modules: AMP TYCO (without dust protection cap): SL Series 110Connect and SL Series Toolless; Brand-Rex: modules with item numbers ending in …JAKS000CR and …JAKU002; Nexans: LANmark RJ45 with blue adapter clip, LANmark GG45 with metal clip.


Installation unit, consisting of:
- Mounting support, single, type 71MT1 45
- Data technology support, straight outlet, type DTG-2A, colour: see table
- Cover frame AR45, single, without labelling panel, colour: pure white
For installation in Rapid 80 device installation trunking and ISS service poles.
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

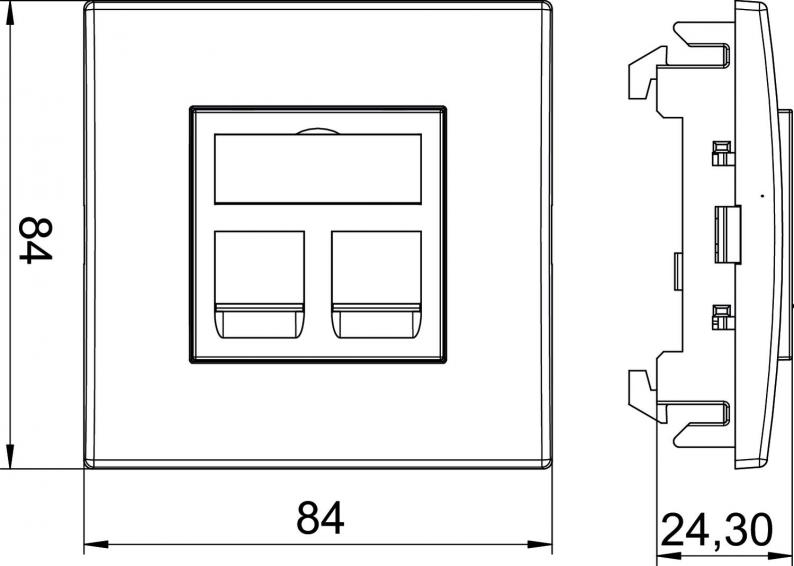

Dimensions

Length84 mm
Width84 mm

Technical data

Hinged coverno
Halogen-freeyes
Strain relief optionno
Protection ratingIP20
Support ringno
With dust protectionyes
With printed labelno
Lamp-wire connectorno
Depth24,3 mm
Surface versionMatt
Transparentno
CombinationBasic element with full cover plate
UseModular jack
Labelling panelWith labelling panel
Mounting typeDevice installation duct
Dimension84x84x59mm
MaterialPolycarbonate
ColourPure white; RAL 9010
CO2 Footprint (GWP) Cradle-to-Gate0,4201 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
Tender specifications (2)

Variants

DTE-RW G2A1
Item no.
6119494
With dust protection
yes
Colour
Pure white; RAL 9010
