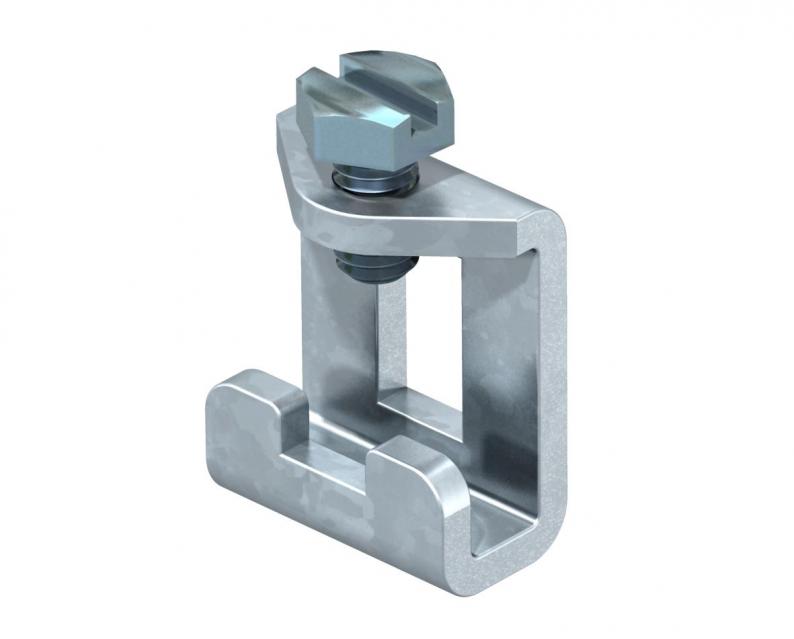

Flat conductor terminal from FL 30 for 1801 VDE
Type 1801 RK40
|Item no. 5015774
|EAN 4012195455837
Item no. / Type
5015774 / 1801 RK40
Connection options
FL 40 x 5
Smallest selling unit: 1 piece
1piece
piece
Description
• For flat conductors from FL 30
• 2 terminals always required for each flat conductor connection
• Lightning current carrying capacity 100 kA (10/350)
• Electrogalvanised steel
• 2 terminals always required for each flat conductor connection
• Lightning current carrying capacity 100 kA (10/350)
• Electrogalvanised steel
Technical data
Dimensions
| Width | 30 mm |
|---|
Materials and Packaging
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
Technical data
| Connection options | FL 40 x 5 |
|---|---|
| Dividing unit TE (10 mm) | 5 |
| Suitable for round cable connection | no |
| Suitable for sector conductor connection | no |
| Suitable for ribbon conductor connection | yes |
| Dimension | 40mm |
| Surface | Electrogalvanized |
| Material | Steel |
| Suitable for busbar | Other |
CO2 footprint (Product Carbon Footprint)
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1581 kg CO2e / 1 Piece |
|---|
