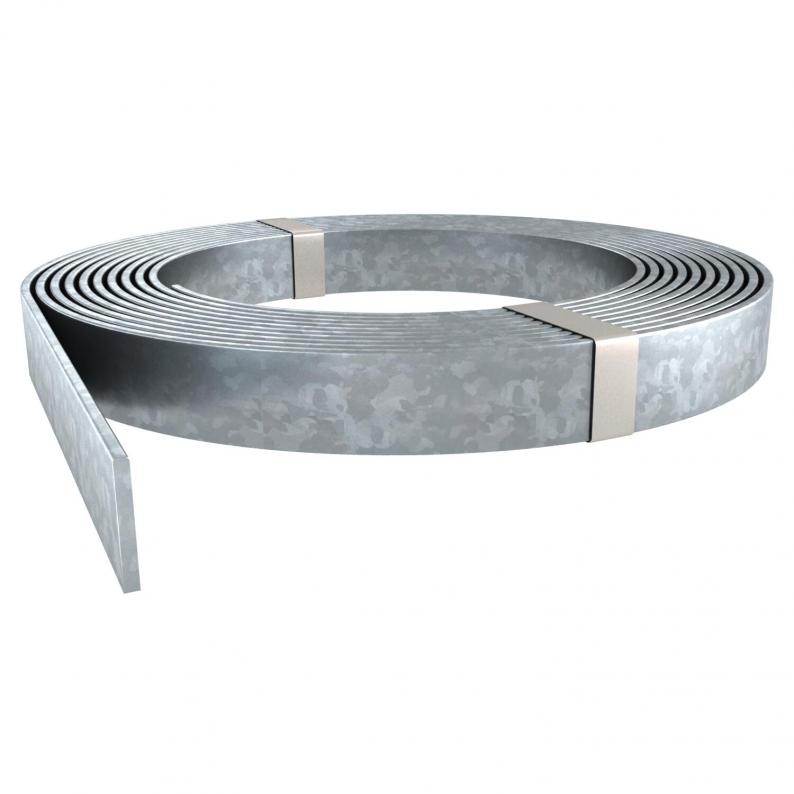

Flat conductor, galvanised steel for foundation earthing
Type 5052 25X3 | Item no. 5020751 | EAN 4012195316756
Item no. / Type
Width
Height
Smallest selling unit: 30 m
30m
Description
• Zinc coating: 225 g/m² (approx. 30 µm)
• Can be used as a conductor
• For foundation earthing, not routed in the ground
• Can be used as a conductor
• For foundation earthing, not routed in the ground
Technical data
Dimensions
| Width | 25 mm |
|---|---|
| Height | 3 mm |
| Dimension B | 25 mm |
| Dimension H | 3 mm |
Technical data
| Normal ring (ca. kg) | 18 |
|---|---|
| Cross-section | 75 mm² |
| Nomal ring (approx. m) | 30 |
| Dimension | 25x3mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Length tolerance ± | 5 % |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Height
Item no.
5052 30X3.5
30,5
3,5
5020638
5052 25X3
25
3
5020751
5052 30X3
30
3
5020808
Width
Height
5052 30X3.5
Item no.
5020638
Width
30,5
Height
3,5
5052 25X3
Item no.
5020751
Width
25
Height
3
5052 30X3
Item no.
5020808
Width
30
Height
3
