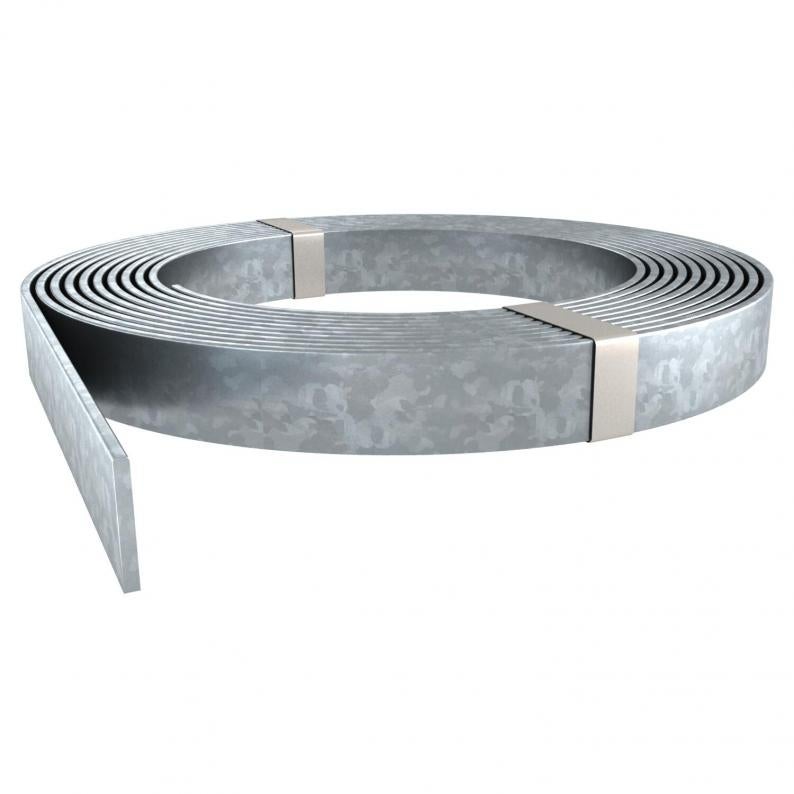

Flat conductor, galvanised steel
Type 5052 DIN 40X5
|Item no. 5019360
|EAN 4012195680512
Item no. / Type
Width
Height
Smallest selling unit: 30 m
30m
m
Description
• Can be used as a conductor and earthing conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Complies with the requirements of VDE 0185-305 (IEC 62305)
• Zinc coating: ≥ 500 g/m² (approx. 70 µm in mean value)
• For lightning protection, earthing systems and ring equipotential bonding
• Complies with the requirements of VDE 0185-305 (IEC 62305)
• Zinc coating: ≥ 500 g/m² (approx. 70 µm in mean value)
• For lightning protection, earthing systems and ring equipotential bonding
Technical data
Dimensions
| Width | 40 mm |
|---|---|
| Height | 5 mm |
| Dimension B | 40 mm |
| Dimension H | 5 mm |
Technical data
| Nomal ring (approx. m) | 50 |
|---|---|
| Cross-section | 200 mm² |
| Nomal ring (approx. m) | 30 |
| Dimension | 40x5mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Length tolerance ± | 5 % |
Accessories
Mounting accessories
Article
Type
Item no.
Amount
256 DIN 40 FT
5314623
Smallest selling unit: 10 piece
10piece
piece
256 A-DIN 40 FT
5314666
Smallest selling unit: 10 piece
10piece
piece
Item no. 5314623
DIN cross-connector for flat conductor, with intermediate plateType
256 DIN 40 FT
Smallest selling unit: 10 piece
10piece
piece
Item no. 5314666
DIN cross-connector for flat conductorType
256 A-DIN 40 FT
Smallest selling unit: 10 piece
10piece
piece
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Width
Height
Item no.
5052 DIN 20X2.5
20
2,5
5019340
5052 DIN 25X3
25
3
5019342
5052 DIN 30X3
30
3
5019344
5052 DIN 30X3.5
30
3,5
5019345
5052 DIN 30X3.5
30
3,5
5019347
5052 DIN 30X4
30
4
5019350
5052 DIN 40X4
40
4
5019355
5052 DIN 40X5
40
5
5019360
Width
Height
5052 DIN 20X2.5
Item no.
5019340
Width
20
Height
2,5
5052 DIN 25X3
Item no.
5019342
Width
25
Height
3
5052 DIN 30X3
Item no.
5019344
Width
30
Height
3
5052 DIN 30X3.5
Item no.
5019345
Width
30
Height
3,5
5052 DIN 30X3.5
Item no.
5019347
Width
30
Height
3,5
5052 DIN 30X4
Item no.
5019350
Width
30
Height
4
5052 DIN 40X4
Item no.
5019355
Width
40
Height
4
5052 DIN 40X5
Item no.
5019360
Width
40
Height
5
