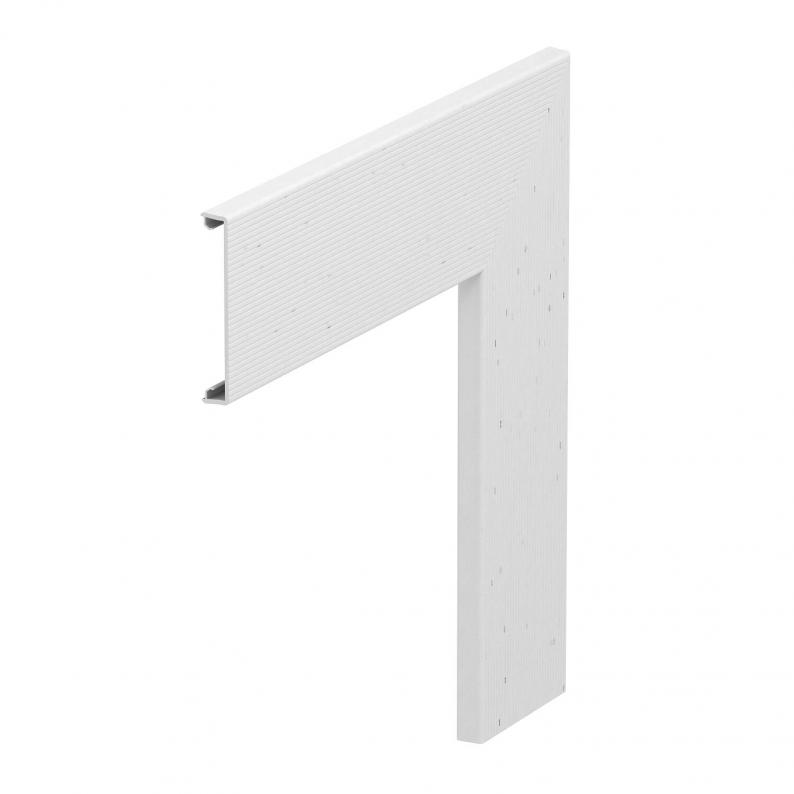

Flat angle cover, smooth
Type GKH-OTGFRW
|Item no. 6114250
|EAN 4012196450930
Item no. / Type
6114250 / GKH-OTGFRW
Smallest selling unit: 1 piece
1piece
piece
Description
Flat angle cover made of halogen-free PC/ABS.
Technical data

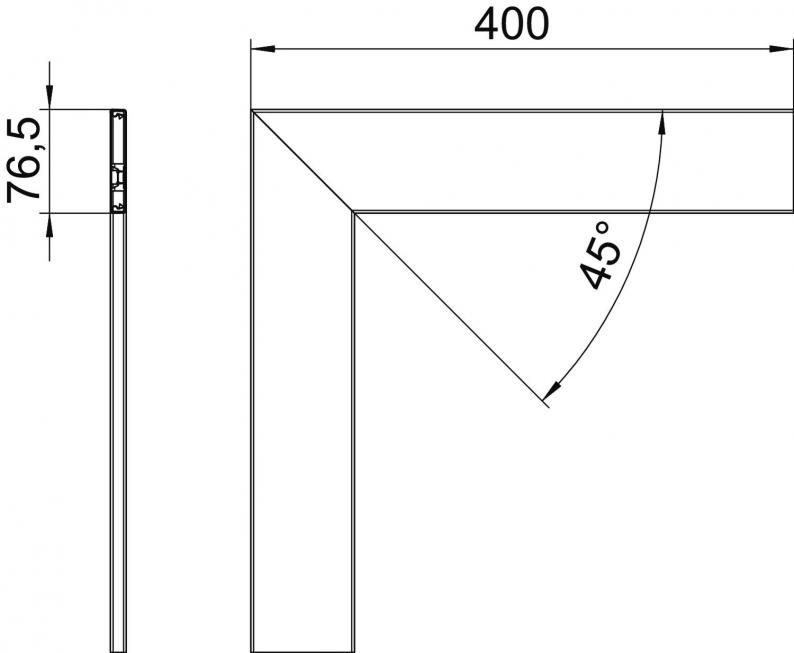

Dimensions
| Length | 400 mm |
|---|---|
| Width | 76,5 mm |
| Height | 12 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Protective film | yes |
| Protection rating | IP30 |
| Cover mounting type | Internal |
| Protection rating IK code | IK08 |
| Version for | Smooth |
| Permitted temperature range, min. | -15 °C |
| Permitted temperature range, max. | 90 °C |
| Material | Polycarbonate/Acrylnitrile-butadiene-styrene |
| Colour | Pure white; RAL 9010 |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,2 kg CO2e / 1 Piece |
