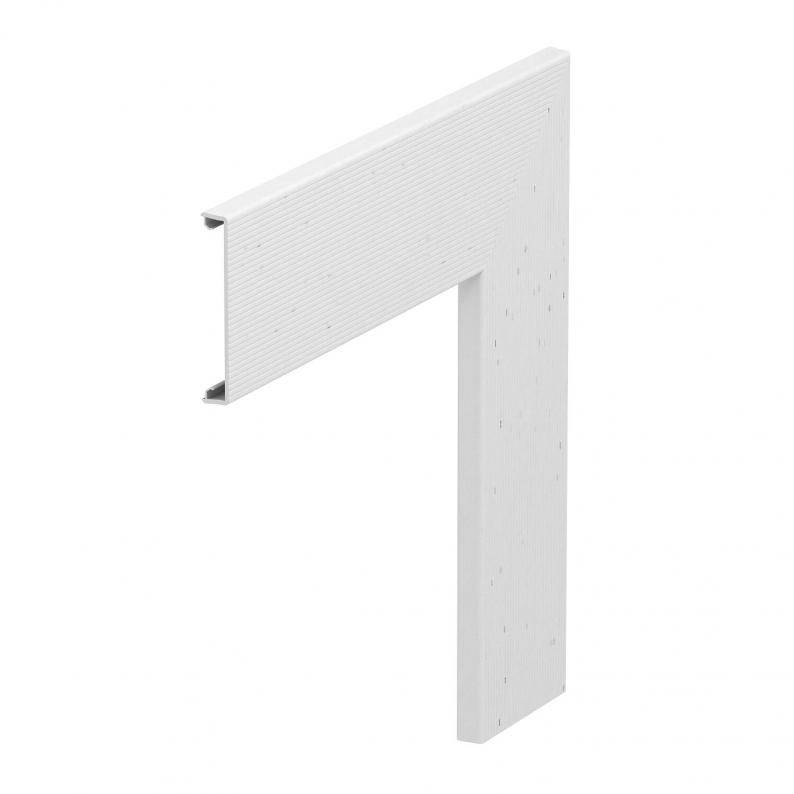

Flat angle cover, fluted
Type GK-OTKFRW
|Item no. 6274590
|EAN 4012195656999
Item no. / Type
6274590 / GK-OTKFRW
Smallest selling unit: 1 piece
1piece
piece
Description
Flat angle cover, fluted surface.
Technical data

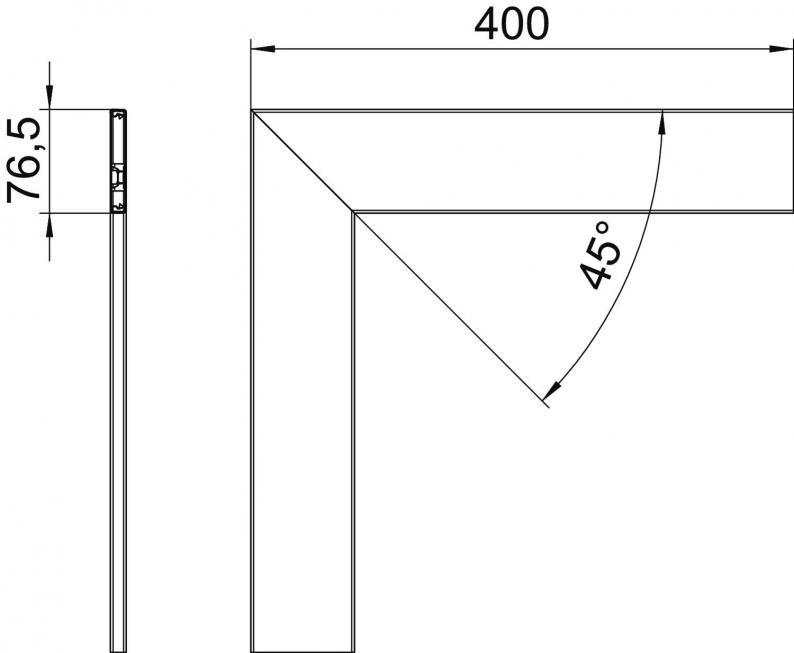

Dimensions
| Length | 400 mm |
|---|---|
| Width | 76,5 mm |
Technical data
| Halogen-free | no |
|---|---|
| Protective film | yes |
| Protection rating | IP30 |
| Cover mounting type | Internal |
| Protection rating IK code | IK08 |
| Version for | Profiled |
| Permitted temperature range, min. | -15 °C |
| Permitted temperature range, max. | 60 °C |
| Material | Polyvinylchloride |
| Colour | Pure white; RAL 9010 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4565 kg CO2e / 1 Piece |
