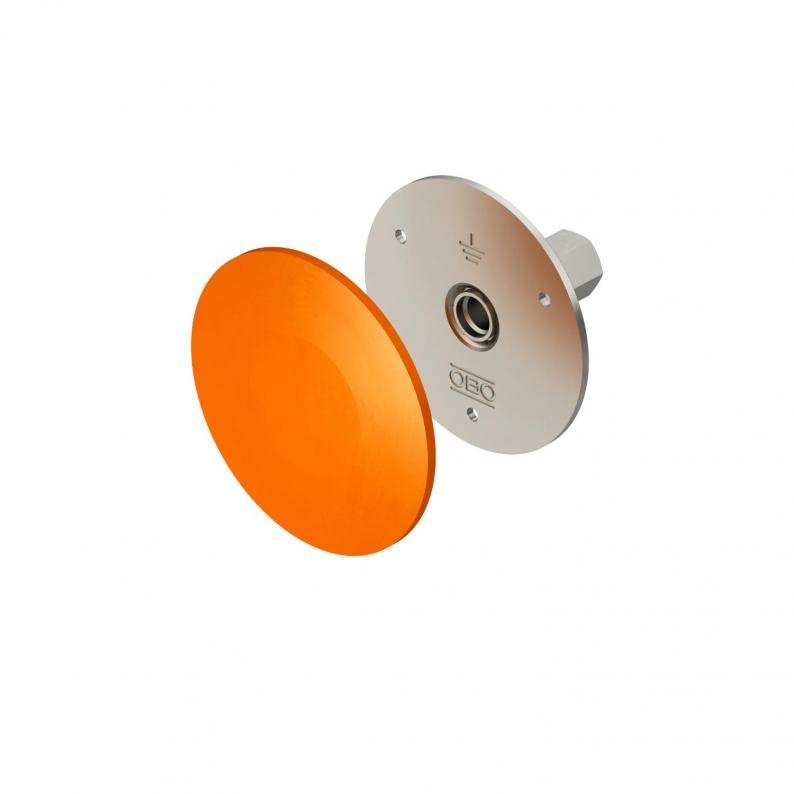

Fixed earthing terminal with double thread
Type 205 DG V4A | Item no. 5420020 | EAN 4012196505869
Item no. / Type
5420020 / 205 DG V4A
Material of the connection strap
Stainless steel, rustproof (V4A)
Smallest selling unit: 10 piece
10piece
Description
• For connection to earthing systems, conductors and reinforcements
• Contact plate: Ø 80 mm made of stainless steel, rustproof (V4A)
• Double thread M10/M12
• Incl. plastic cover for simple installation
• Contact plate: Ø 80 mm made of stainless steel, rustproof (V4A)
• Double thread M10/M12
• Incl. plastic cover for simple installation
Technical data
Technical data
| Thread | M10/M12 |
|---|---|
| Material of the connection strap | Stainless steel, rustproof (V4A) |
| Short-circuit current (50 HZ)(1 s;≤300°C) | 6,2 kA |
| Lightning current carrying capacity | H/100 kA |
| Dimension | M10/M12 |
| Material | Stainless steel 1.4404 |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,0155 kg CO2e / 1 Piece |

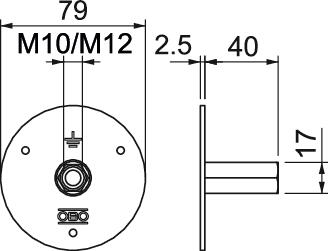

Dimensions
| Diameter of the connection plate | 79 mm |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (2)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (2)
