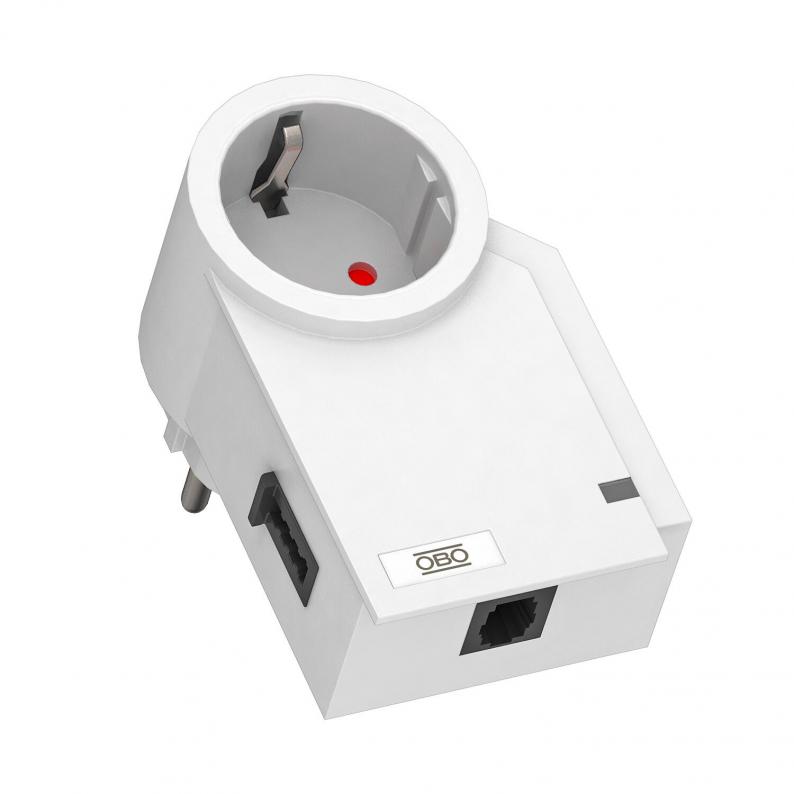

FineController FC-TAE for telephone systems and terminals

Type FC-TAE-D

Item no. 5092824

EAN 4012195035237

Data sheet (PDF)

RoHS Declaration of conformity (PDF)

Show all variants

Item no. / Type

5092824 / FC-TAE-D

Country-specific version

Smallest selling unit: 1 piece

piece

Description Technical data Downloads Variants

Description

Type 3 combined surge protection to EN 61643-11, designed for use in telephone systems with TAE connection (telephones upstream of the NTBA/DSL splitter).

• Adapter connector
• Cut-off unit and function display
• With increased contact protection
• Incl. 0.5 m connection cable TAE / RJ11
• Maximum continuous voltage, TAE connection 200 V DC / 1.5 A (25 °C)
• Limit frequency: type 4 MHz / VDSL up to 46 MBit/s

Note: The technical data in the table below refers to the power supply.

Technical data

Protection level (L-N / L/N-PE)	<1200 / <1500 V
Telecommunications contact	no
Blow-out	no
Signalling on device	Visual
Protection rating	IP20
Protection level (L-N)	< 1,2 kV
Protection level (N-PE)	< 1,5 kV
Nominal voltage	230 V
Test class, type 3	yes
With interference suppression filter	no
Frequency range, max.	4
Cut-off frequency	4 MHz
Country-specific version	D
Max. continuous operating voltage	275 V
SPD to IEC 61643-1	Class III
SPD to EN 61643-11	Type 3
Lightning protection zone LPZ	2→3
Protection level	< 1,5 kV
Nominal discharge surge current	3 kA
Rated current	16 A
Response time	<25 ns
Maximum back-up fuse	16 A
Permitted temperature range, min.	-25 °C
Permitted temperature range, max.	75 °C
Dimension	230V
Colour	Pure white; RAL 9010
CO2 Footprint (GWP) Cradle-to-Gate	0,0664 kg CO2e / 1 Piece

Network

Frequency range, min.	0
