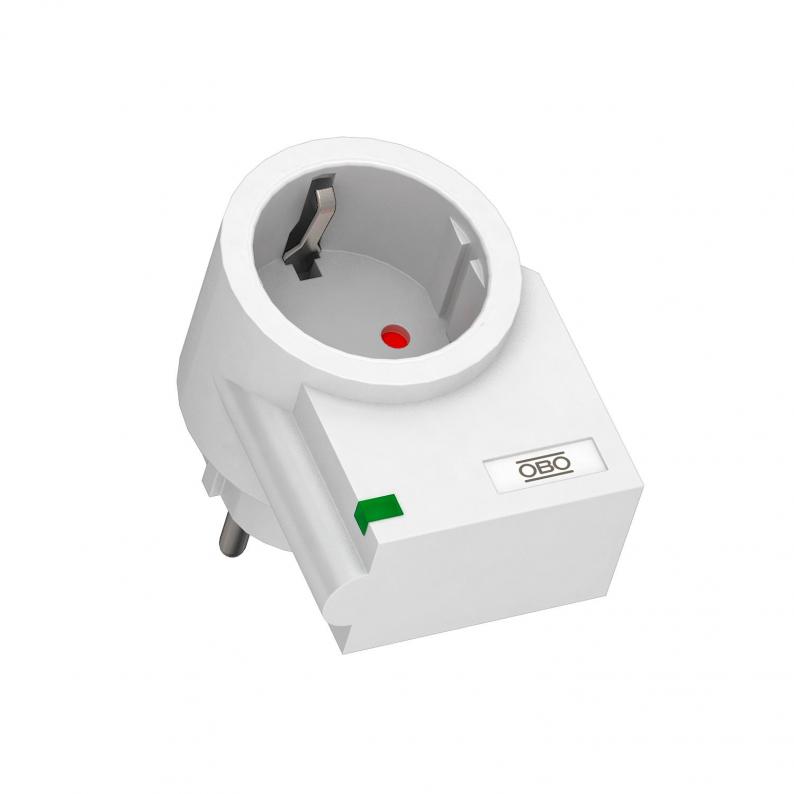

FineController FC-D for protective contact socket

Type FC-D

Item no. 5092800

EAN 4012195035053

Data sheet (PDF)

Declaration of conformity (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Show all variants

Item no. / Type

5092800 / FC-D

Country-specific version

Smallest selling unit: 1 piece

piece

Description Technical data Downloads Variants

Description

Type 3 surge protective device to EN 61643-11,

intended for use in protective contact sockets.

• Adapter connector

• Cut-off unit and function display

• With increased touch protection

Technical data

Dimensions

Length	78,3 mm
Width	55 mm
Height	75 mm

Technical data

Telecommunications contact	no
Blow-out	no
Signalling on device	Visual
Protection rating	IP20
Nominal voltage	230 V
Remote signalling	no
Test class, type 2	no
Test class, type 3	yes
Nominal voltage AC (50/60 Hz)	230 V
Integrated back-up fuse	no
Protection level [L-N]	≤1,5
Maximum continuous voltage AC	275 V
Nominal discharge current (8/20 µs)	3 kA
Installation type	Wall socket
Max. mains-side overcurrent protection	16 A
Version for	Schuko
OBO_Nominal load current (input/output terminal)	16 A
Operating temperature, min.	-25 °C
Operating temperature, max.	75 °C
Country-specific version	D
Max. continuous operating voltage	275 V
SPD to IEC 61643-1	Class III
SPD to EN 61643-11	Type 3
Lightning protection zone LPZ	2→3
Protection level	<1,5 kV
Nominal discharge surge current	3 kA
Maximum discharge current (8/20 μs)	8 kA
Rated current	16 A
Response time	<25 ns
Maximum back-up fuse	16 A
Permitted temperature range, min.	-25 °C
Permitted temperature range, max.	75 °C
Dimension	230V
Colour	Pure white; RAL 9010
