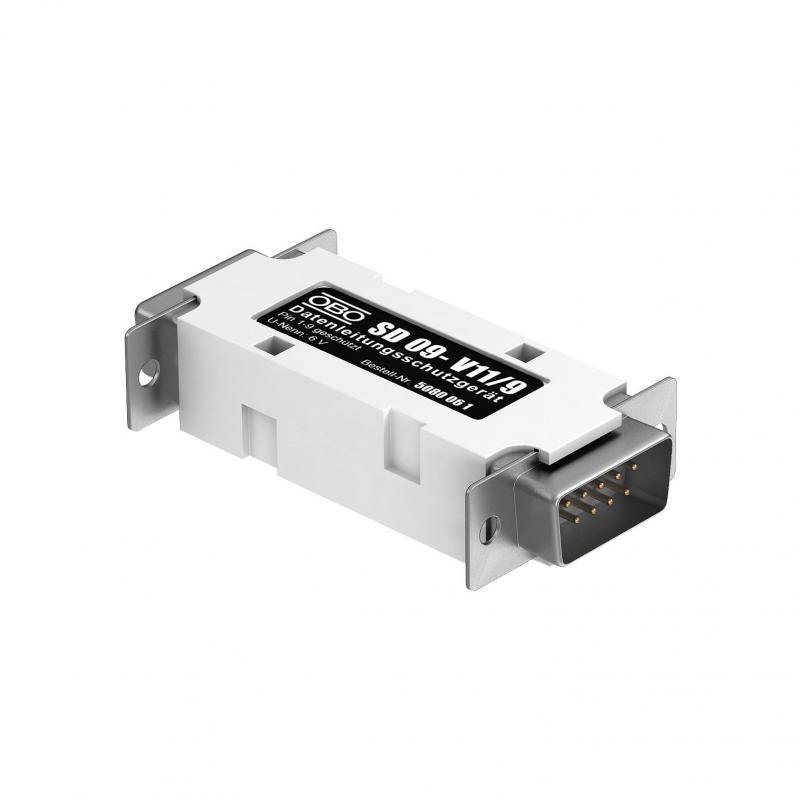

Fine protection for 9-pole RS485 interface
Type SD09-V11 9 | Item no. 5080061 | EAN 4012195916277
Item no. / Type
Number of poles
Plug-in system
Maximum continuous voltage DC
Version for
Smallest selling unit: 1 piece
1piece
Description
Data cable protection device for serial interfaces
• Various connection technologies available
• Low voltage protection level
Application: PLC, alarm systems, controllers
• Various connection technologies available
• Low voltage protection level
Application: PLC, alarm systems, controllers
Technical data
Dimensions
| Length | 60 mm |
|---|---|
| Width | 16 mm |
| Height | 34 mm |
Technical data
| Number of poles | 9 |
|---|---|
| Protection level, wire-wire at 1 kV/µs (C3) | <10 V |
| Protection level, wire-earth at 1 kV/µs (C3) | <10 |
| Telecommunications contact | no |
| Plug-in system | D-Sub 9-pin |
| Protection level wire-wire | <100 V |
| Protection level wire-earth | <100 V |
| Protection rating | IP40 |
| Testing standard | IEC 61643-21 |
| Nominal voltage | 6 V |
| Explosion-tested version | no |
| Shielding connection available | yes |
| Screening | Direct |
| Impulse durability wire-wire | 0,75 kA (8/20µs) |
| Impulse durability wire-earth | 0,75 kA (8/20µs) |
| Arrestor monitoring | no |
| Maximum continuous voltage AC | 5,2 V |
| Maximum continuous voltage DC | 8 V |
| Version for | SUB-D-9; V11 RS485 |
| SPD to IEC 61643-21 | Class III / C1 |
| Kategorie | Type 3 / C1 |
| Lightning protection zone LPZ | 2→3 |
| Response time | <10 ns |
| Permitted temperature range, max. | 80 °C |
| Permitted temperature range, min. | -40 °C |
| Dimension | 6V |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0926 kg CO2e / 1 Piece |
