Fastening set for table mounting, for Deskbox DB
Type DBZ-BST | Item no. 6116985 | EAN 4012195714392
Item no. / Type
6116985 / DBZ-BST
Smallest selling unit: 1 piece
1piece
Description

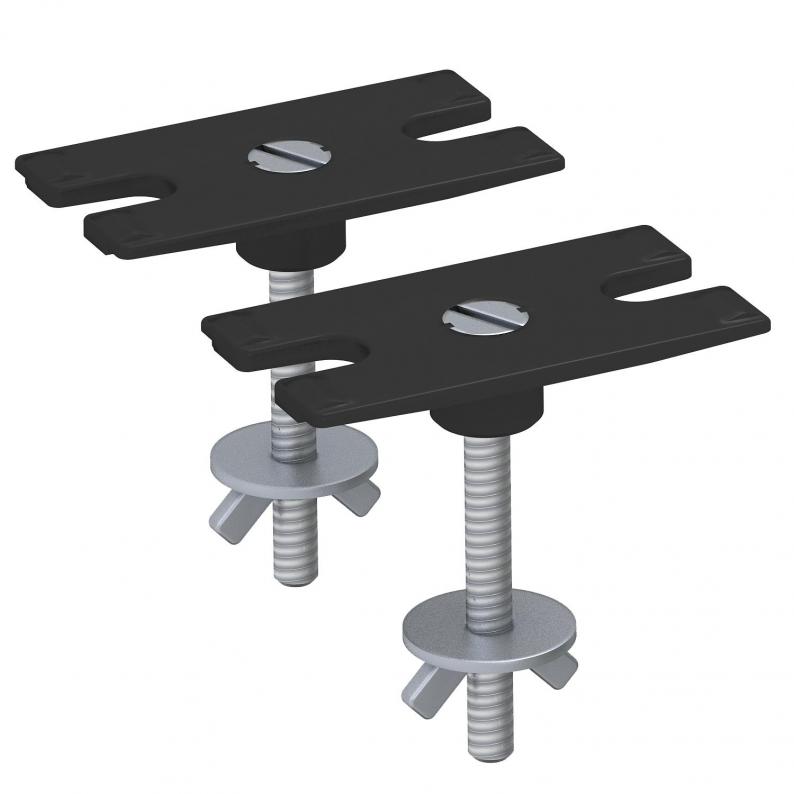

Fastening set for fixed mounting of a Deskbox, type DB, under the tabletop. It is mounted using a drill hole (Ø10 mm) in the tabletop.

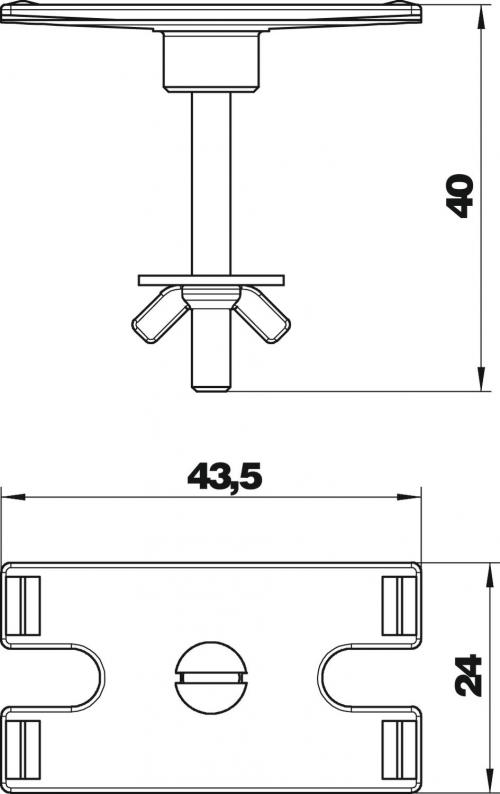

Note: The supplied fastening screws (M4 x 40 mm) can be used for tabletops of up to a maximum thickness of 32 mm.
The ready-for-connection type DB Deskbox is particularly suitable for the direct supply of workstations with energy, communication and data technology connections.
Note: The supplied fastening screws (M4 x 40 mm) can be used for tabletops of up to a maximum thickness of 32 mm.
The ready-for-connection type DB Deskbox is particularly suitable for the direct supply of workstations with energy, communication and data technology connections.
Technical data
Technical data
| Surge protection | no |
|---|---|
| Foldable | no |
| Extendable | no |
| Length of the supply cable | 3 m |
