External corner, design trunking
Type GAD AEL | Item no. 6115789 | EAN 4012195914211
Item no. / Type
6115789 / GAD AEL
Colour
aluminium
Smallest selling unit: 0 translation missing
0translation missing
Description

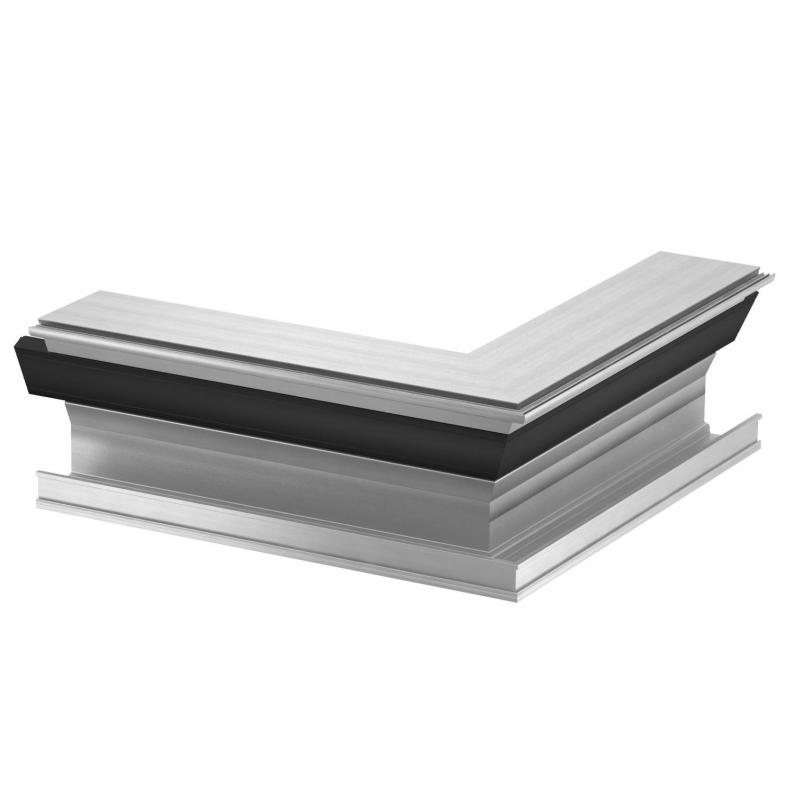

External corner base to create a design device installation trunking of the GAD series. 45 mm system opening for acceptance of Modul 45 switch and connection devices and appropriate PVC and aluminium covers of the Rapid 45 series. The fitting can be completed with fitting covers in the "Swing", "Soft" or "Style" design. The GAD OTA cover adapters are essential. A GAD OTD spacer must be placed between the trunking covers.
Standard version in anodised aluminium, different decoration on request.
Standard version in anodised aluminium, different decoration on request.
Technical data

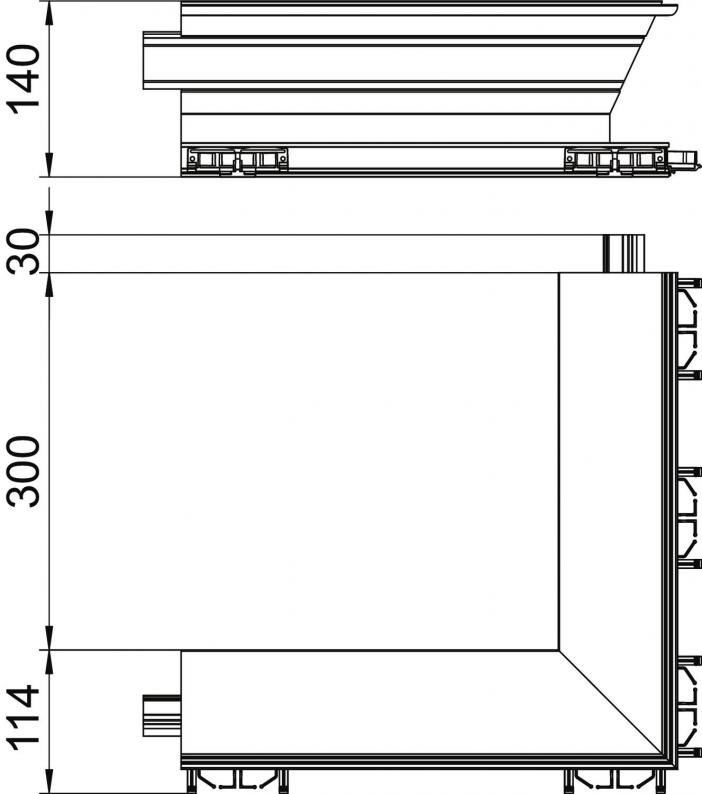

Dimensions
| Length | 300 mm |
|---|---|
| Width | 140 mm |
| Height | 114 mm |
Technical data
| Mounting perforation in base | no |
|---|---|
| Halogen-free | yes |
| Cable retaining clip | no |
| Protective film | yes |
| Duct connector | no |
| Angle range, min. | 90 mm |
| Symmetrical | no |
| Number of covers | 1 |
| Cover mounting type | Cross-over |
| Version for | Base |
| Cover width | 140 mm |
| Dimension | 114x140x300 |
| Surface | Anodised |
| Material | Aluminium |
| Colour | aluminium |
| Antibacterial treatment | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 31,8507 kg CO2e / 1 Piece |
