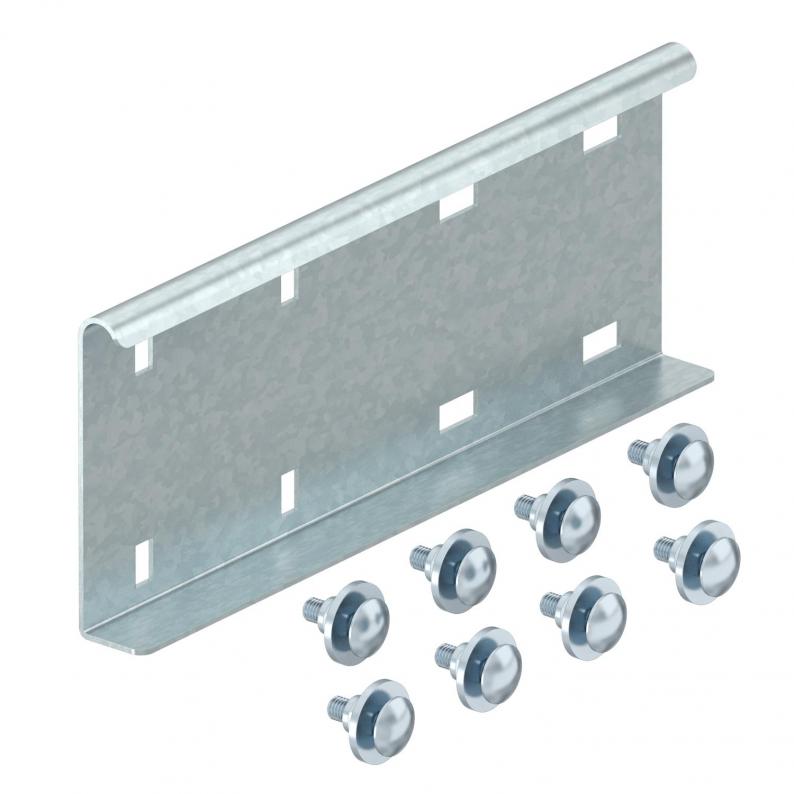

Expansion connector 110 FT
Type LDVG 110 FT | Item no. 6216670 | EAN 4012196464630
Item no. / Type
6216670 / LDVG 110 FT
Smallest selling unit: 2 piece
2piece
Description
Connector for expansion for compensation of linear thermal expansion. The tightening torques of the self-locking screws on the loose bearing side are 5 Nm.
Technical data

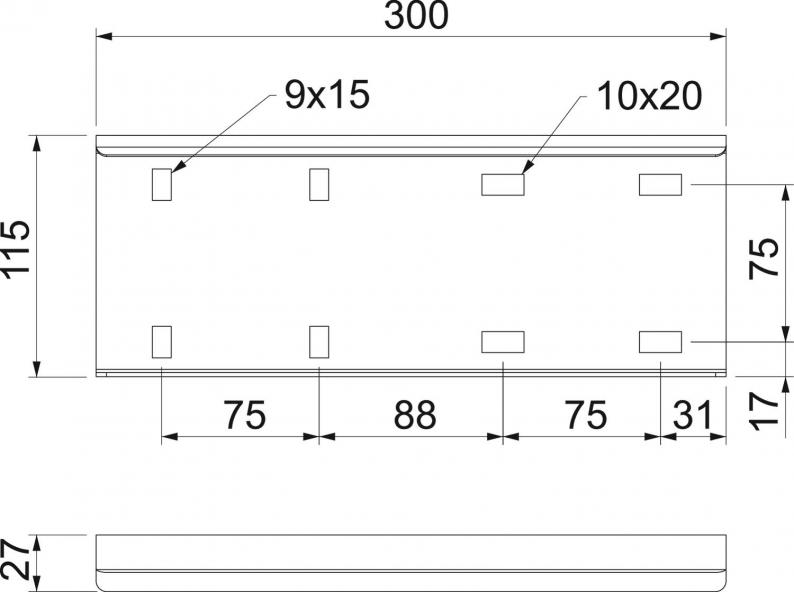

Dimensions
| Length | 300 mm |
|---|---|
| Width | 27 mm |
| Height | 110 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | yes |
| Suitable for cable tray | no |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Suitable for cable tray system height | 110 mm |
| Version for | Straight connector |
| Connection type | Screw connector |
| Dimension | 110x300 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,3189 kg CO2e / 1 Piece |
