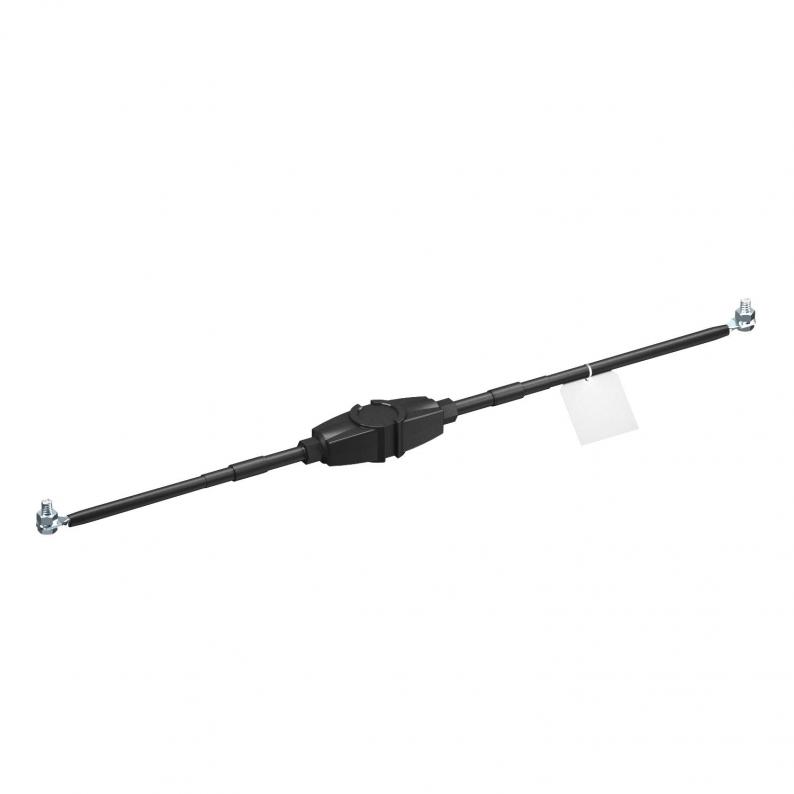

EX ISG H spark gap, jacketed

EX ISG H spark gap, jacketed

Type EX ISG H KU
|
Item no. 5240032
|
EAN 4012196522941
Show all variants
Item no. / Type
Lightning impulse current
Nominal discharge surge current

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

• Spark gap to VDE 0185-561-3 (IEC 62561-3)
• Ex certificate to ATEX
• Labelling to EN 60079-0/-1: II 2 G Ex db IIC T6 Gb
• Labelling to EN 60079-0/-31: II 2 D Ex td IIIC T80 °C Db IP67
• Ex certificate to IECEx
• Labelling to EN 60079-0/-1: Ex db IIC T6 Gb
• Labelling to EN 60079-0/-31: Ex td IIIC T80 °C Db IP67
• Ex certificate to INMETRO
• Labelling to ABNT NBR IEC 60079-0/-1: Ex db IIC T6 Gb
• Labelling to ABNT NBR IEC 60079-31: Ex td IIIC T80 °C Db IP67
• Water-proof shrinkage
• NYY-0 1 x 25 mm2 cable, mounted on both sides
• Particularly suitable for connections in the ground

Application: In potentially explosive areas zone 1/21 and 2/22, indirect bridging of insulating flanges and insulating glands, e.g. in cathodic, corrosion-protected (KKS) systems.
  • Lightning current-tested
  • ATEX certificate for explosive areas
  • ATEX certificate for explosive areas
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Materials and Packaging

Packaging made completely from recycled cardboard.yes

Technical data

Power frequency spark-over voltage0,56 kV
Protection ratingIP65/67
Explosion-tested versionyes
Ignition protection typePressure-resistant encapsulation
Connection Metric
Material of the connectionDie-cast zinc
Lightning current carrying capacityH/100 kA
Rated power frequency withstand voltage250 V
Rated DC withstand voltage354 V
Rated impulse sparkover voltage1,25 kV
Connecting cable length2 m
Lightning impulse current100 kA
Nominal discharge surge current100 kA
Permitted temperature range, min.-20 °C
Permitted temperature range, max.60 °C

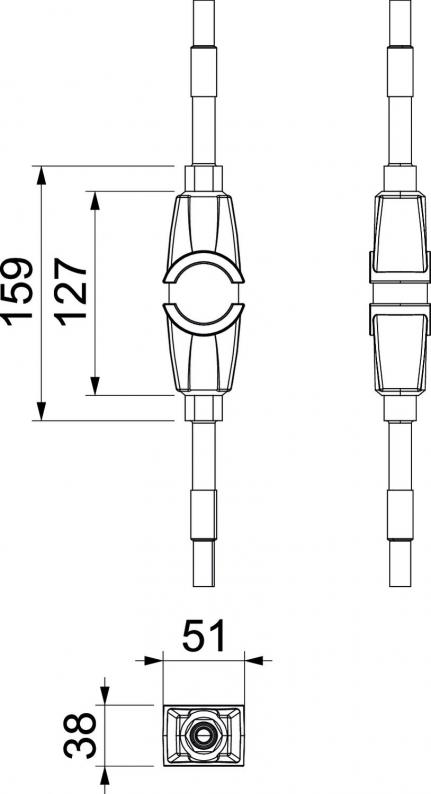

Dimension2x2000mm
MaterialHotmelt
ColourBlack

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate3,1196 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Certificates (4)
Instructions and Aid (2)
Product images (2)
Tender specifications (2)

Variants

EX ISG H KU
Item no.
5240032
Lightning impulse current
100
Nominal discharge surge current
100
EX ISG H 350 2L
Item no.
5240033
Lightning impulse current
100
Nominal discharge surge current
100
