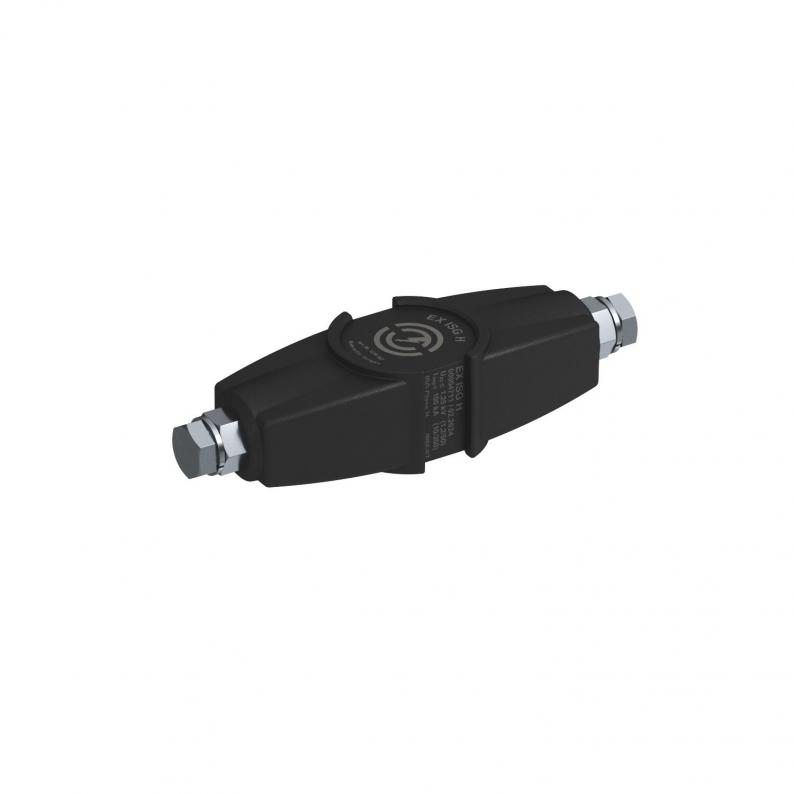

EX ISG H spark gap
Type EX ISG H | Item no. 5240030 | EAN 4012196517381
Item no. / Type
Lightning impulse current
Nominal discharge surge current
Smallest selling unit: 1 piece
1piece
Description
• Spark gap to VDE 0185-561-3 (IEC 62561-3)
• Ex certificate to ATEX
• Labelling to EN 60079-0/-1: II 2 G Ex db IIC T6 Gb
• Labelling to EN 60079-0/-31: II 2 D Ex td IIIC T80 °C Db IP67
• Ex certificate to IECEx
• Labelling to IEC 60079-0/-1: Ex db IIC T6 Gb
• Labelling to IEC 60079-0/-31: Ex td IIIC T80 °C Db IP67
• Ex certificate to INMETRO
• Labelling to ABNT NBR IEC 60079-0/-1: Ex db IIC T6 Gb
• Labelling to ABNT NBR IEC 60079-31: Ex tb IIIC T80 °C Db IP67
Application: In potentially explosive areas zones 1/21 and 2/22, indirect bridging of insulating flanges and insulating glands, e.g. in cathodic, corrosion-protected (KKS) systems.
• Ex certificate to ATEX
• Labelling to EN 60079-0/-1: II 2 G Ex db IIC T6 Gb
• Labelling to EN 60079-0/-31: II 2 D Ex td IIIC T80 °C Db IP67
• Ex certificate to IECEx
• Labelling to IEC 60079-0/-1: Ex db IIC T6 Gb
• Labelling to IEC 60079-0/-31: Ex td IIIC T80 °C Db IP67
• Ex certificate to INMETRO
• Labelling to ABNT NBR IEC 60079-0/-1: Ex db IIC T6 Gb
• Labelling to ABNT NBR IEC 60079-31: Ex tb IIIC T80 °C Db IP67
Application: In potentially explosive areas zones 1/21 and 2/22, indirect bridging of insulating flanges and insulating glands, e.g. in cathodic, corrosion-protected (KKS) systems.
Technical data
Technical data
| Power frequency spark-over voltage | 0,56 kV |
|---|---|
| Protection rating | IP65/67 |
| Explosion-tested version | yes |
| Ignition protection type | Pressure-resistant encapsulation |
| Connection | Metric |
| Material of the connection | Die-cast zinc |
| Lightning current carrying capacity | H/100 kA |
| Rated power frequency withstand voltage | 250 V |
| Rated DC withstand voltage | 354 V |
| Rated impulse sparkover voltage | 1,25 kV |
| Connecting cable length | 0 m |
| Lightning impulse current | 100 kA |
| Nominal discharge surge current | 100 kA |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -20 °C |
| Dimension | 160x45x35 |
| Material | Hotmelt |
| Colour | Black |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,1762 kg CO2e / 1 Piece |
