EÜK horizontal bend
Type KH DU 6025 90
|Item no. 7425920
|EAN 4012195817628
Item no. / Type
7425920 / KH DU 6025 90
Smallest selling unit: 1 piece
1piece
piece
Description

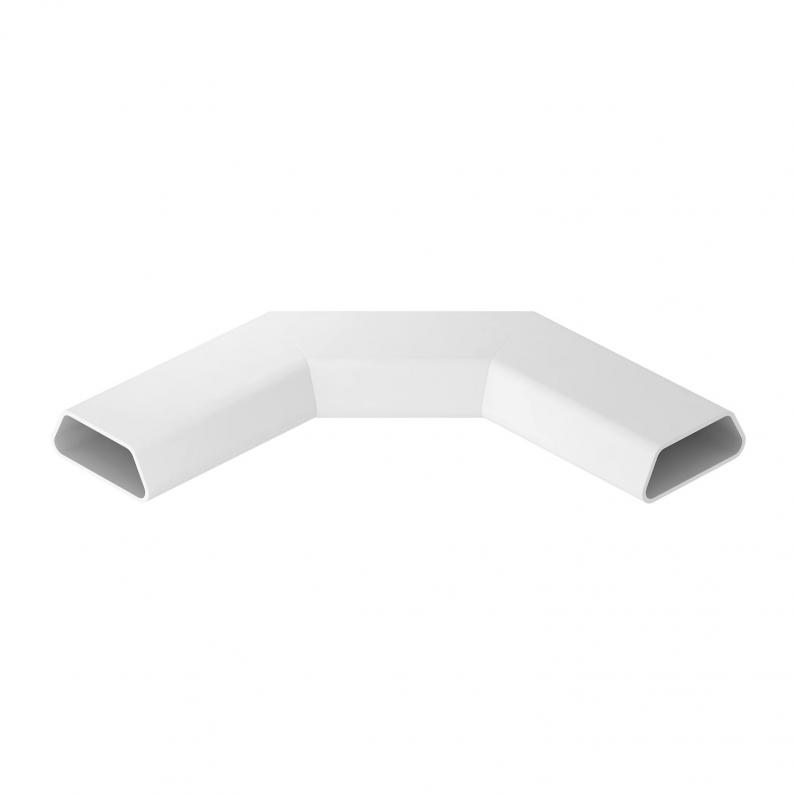

Horizontal bend, 90°, suitable for duct size 60x25.
Technical data

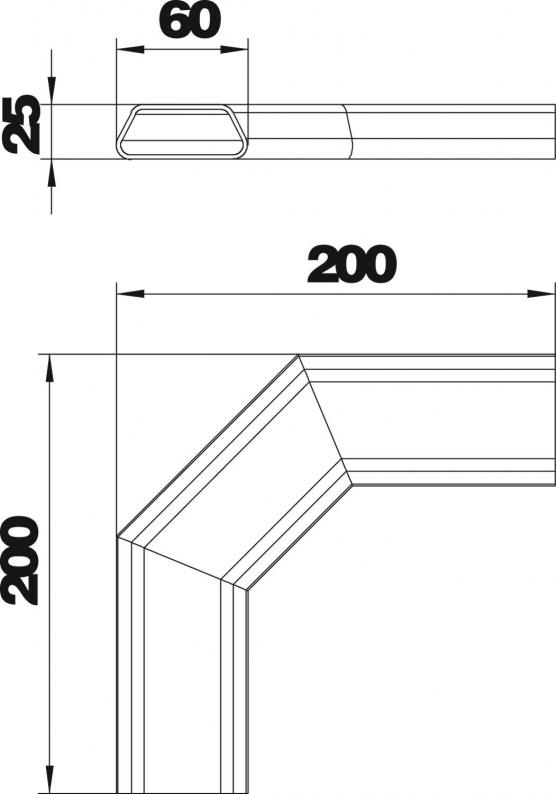

Dimensions
| Length | 200 mm |
|---|---|
| Width | 60 mm |
| Height | 25 mm |
Technical data
| Number of compartments | 1 St. |
|---|---|
| Cross-section, draw a | 1030 mm² |
| Trunking width, min. | 60 mm |
| Duct height, min. | 25 mm |
| Material | Polyvinylchloride |
| Colour | Light grey |
CO2 footprint (Product Carbon Footprint)
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3346 kg CO2e / 1 Piece |
|---|
