Equipotential busbar, solid version

Type 1810

Item no. 5015057

EAN 4012195378136

Data sheet (PDF)

Declaration of conformity (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Show all variants

Item no. / Type

5015057 / 1810

Smallest selling unit: 1 piece

piece

Description Technical data Downloads Variants

Description

• Base plate and screw-on cover made of strip-galvanised steel

• Sealable / labellable cover

• Contact strip made of strip-galvanised steel

• Screws and crossbar made of steel, hot-dip galvanised or electrogalvanised

Connection options:

• 6 cables 6-16 mm²

• 1 round conductor Rd 8-10

• 1 flat conductor to FL 40

• 2 cable shoe M8

Technical data

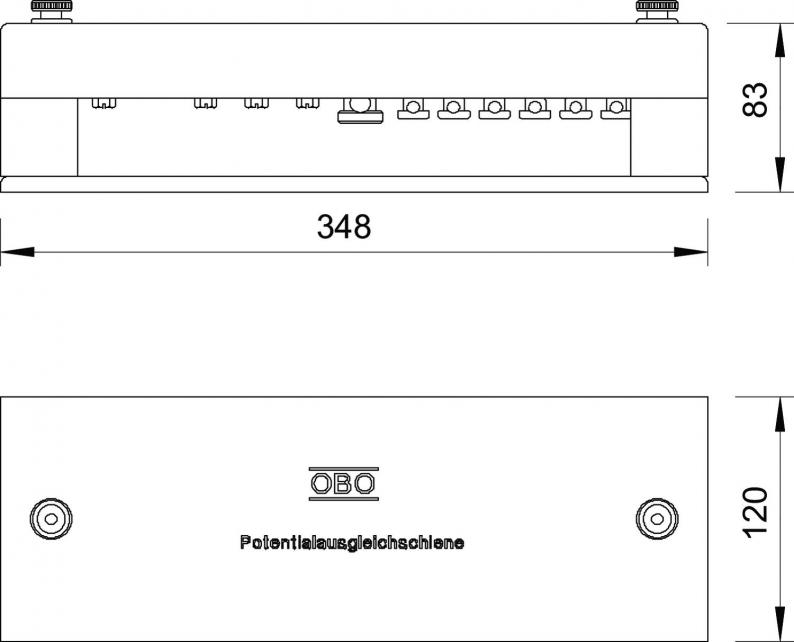

Dimensions

Length	348 mm
Width	120 mm
Height	83 mm

Materials and Packaging

Packaging made completely from recycled cardboard.	yes
Packaging without plastic	yes

Technical data

Insulator	no
Quantity of round conductor connections, total	1
Quantity of round conductor connections 8 mm	0
Quantity of round conductor connections 10 mm	0
Quantity of round conductor connections 8-10 mm	1
Quantity of flat conductor connections up to 30 mm	0
Quantity of flat conductor connections up to 40 mm	1
Quantity of cable connections up to 6 mm², rigid	0
Quantity of cable connections up to 16 mm², rigid	6
Quantity of cable connections up to 25 mm², rigid	0
Quantity of cable connections up to 95 mm², rigid	0
Material of the contact rail	Brass
Material of the terminal	Steel
Surface of the contact rail	Nickel-plated
Surface of the terminal	Electrogalvanised
Version for	With cover hood
Type	Fixed structure
Dimension	348mm
Surface	Hot galvanized
Material	Steel

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate	4,6032 kg CO2e / 1 Piece
