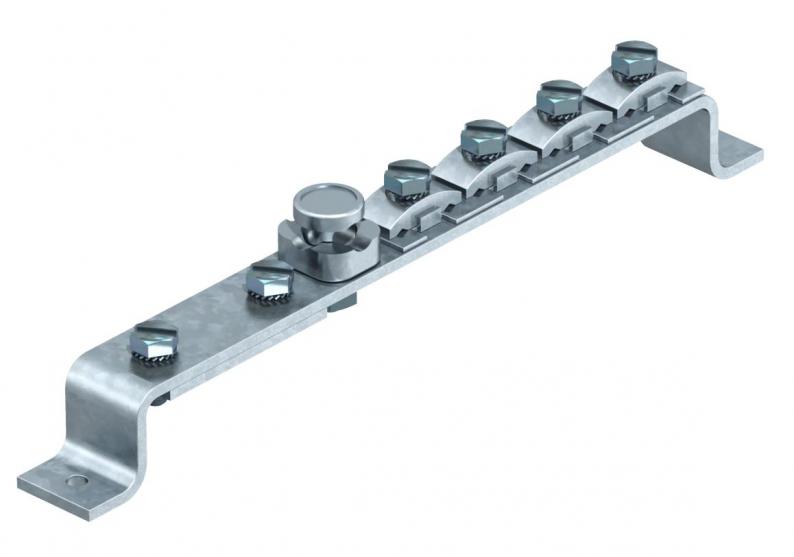

Equipotential busbar, simple version
Type 1808
|Item no. 5015014
|EAN 4012195378075
Item no. / Type
5015014 / 1808
Smallest selling unit: 1 piece
1piece
piece
Description
• Clamp and crossbar, electrogalvanised steel
• Clamping element and contact strip, brass, screws, hot dipped galvanised steel
Connection options:
• 8 x cables to 25 mm²
• 1 x round conductor Rd 8-10
• 1 x flat conductor to FL 40
• Clamping element and contact strip, brass, screws, hot dipped galvanised steel
Connection options:
• 8 x cables to 25 mm²
• 1 x round conductor Rd 8-10
• 1 x flat conductor to FL 40
Technical data

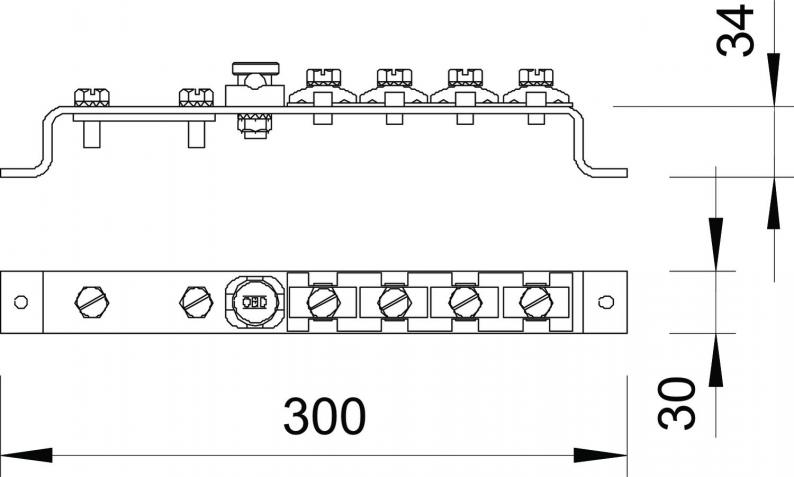

Dimensions
| Length | 300 mm |
|---|---|
| Width | 30 mm |
| Height | 34 mm |
Materials and Packaging
| Packaging without plastic | yes |
|---|
Technical data
| Insulator | no |
|---|---|
| Quantity of round conductor connections, total | 1 |
| Quantity of round conductor connections 8 mm | 0 |
| Quantity of round conductor connections 10 mm | 0 |
| Quantity of round conductor connections 8-10 mm | 1 |
| Quantity of flat conductor connections up to 30 mm | 0 |
| Quantity of flat conductor connections up to 40 mm | 1 |
| Quantity of cable connections up to 6 mm², rigid | 0 |
| Quantity of cable connections up to 16 mm², rigid | 0 |
| Quantity of cable connections up to 25 mm², rigid | 8 |
| Quantity of cable connections up to 95 mm², rigid | 0 |
| Material of the contact rail | Brass |
| Material of the terminal | Brass |
| Surface of the contact rail | Nickel-plated |
| Surface of the terminal | Nickel-plated |
| Version for | Without cover hood |
| Type | Fixed structure |
| Dimension | 300mm |
| Material | Brass |
CO2 footprint (Product Carbon Footprint)
| CO2 Footprint (GWP) Cradle-to-Gate | 1,5903 kg CO2e / 1 Piece |
|---|
