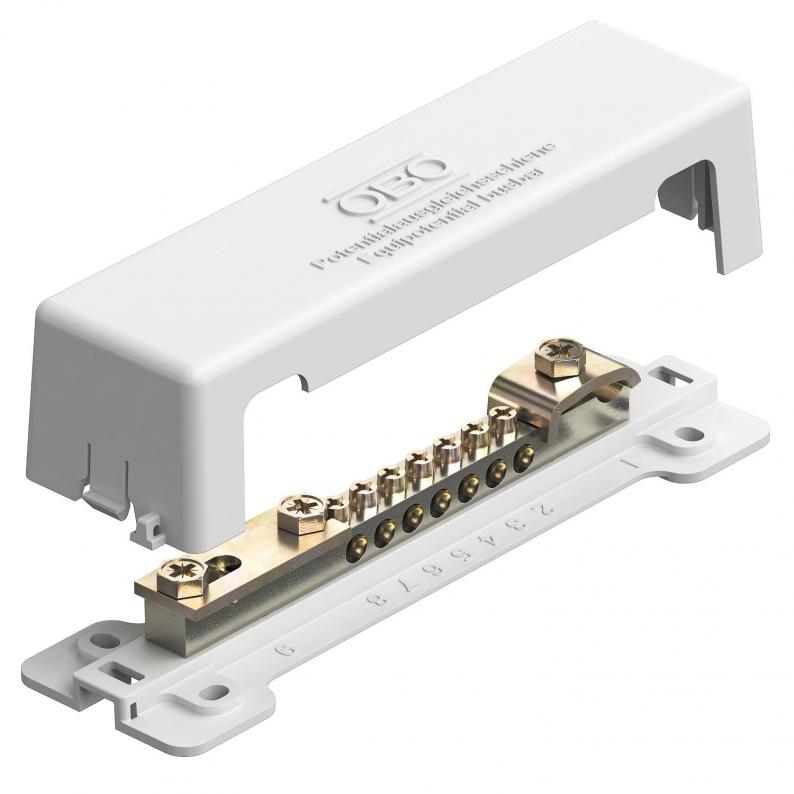

Equipotential busbar OBO Green
Type 1809 NR
|Item no. 5015075
|EAN 4012195931669
Item no. / Type
5015075 / 1809 NR
Colour
White
Smallest selling unit: 1 piece
1piece
piece
Description
The OBO Green equipotential busbar is a solution manufactured from cellulose acetate CA for the installation of the equipotential bonding according to DIN VDE 0100-410/-540 and lightning protection equipotential bonding according to DIN VDE 0185-305. The basic material is widely used in the paper industry.
• Base plate and cover hood made of CA, white
• Sealable and labellable cover
• Contact strip made of brass
• Bolts and crossbar made of electrogalvanised steel
• Capable of carrying lightning current 100 kA (10/350)
Connection options:
• 7x single or multi-wire cables to 25 mm² or fine-wire cables to 16 mm²
• 1x round conductor Rd 8–10
• 1x flat strip to FL 30 or round conductor Rd 8–10
with lead-sealable cover hood from renewable resources
• Base plate and cover hood made of CA, white
• Sealable and labellable cover
• Contact strip made of brass
• Bolts and crossbar made of electrogalvanised steel
• Capable of carrying lightning current 100 kA (10/350)
Connection options:
• 7x single or multi-wire cables to 25 mm² or fine-wire cables to 16 mm²
• 1x round conductor Rd 8–10
• 1x flat strip to FL 30 or round conductor Rd 8–10
with lead-sealable cover hood from renewable resources
Technical data

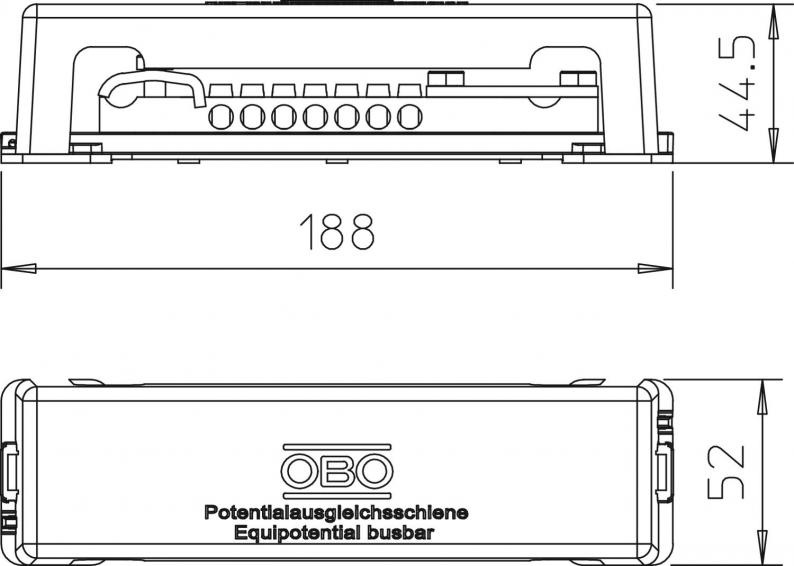

Dimensions
| Length | 188 mm |
|---|---|
| Width | 52 mm |
| Height | 44,5 mm |
Materials and Packaging
| Packaging without plastic | yes |
|---|
Technical data
| Insulator | yes |
|---|---|
| Quantity of round conductor connections, total | 1 |
| Quantity of round conductor connections 8 mm | 0 |
| Quantity of round conductor connections 10 mm | 0 |
| Quantity of round conductor connections 8-10 mm | 1 |
| Quantity of flat conductor connections up to 30 mm | 1 |
| Quantity of flat conductor connections up to 40 mm | 0 |
| Quantity of cable connections up to 6 mm², rigid | 0 |
| Quantity of cable connections up to 16 mm², rigid | 0 |
| Quantity of cable connections up to 25 mm², rigid | 7 |
| Quantity of cable connections up to 95 mm², rigid | 0 |
| Material of the contact rail | Brass |
| Material of the terminal | Steel |
| Surface of the contact rail | Nickel-plated |
| Surface of the terminal | Electrogalvanised |
| Version for | With cover hood |
| Lightning current carrying capacity | H/100 kA |
| Type | Fixed structure |
| Dimension | 188mm |
| Material | Brass |
| Colour | White |
