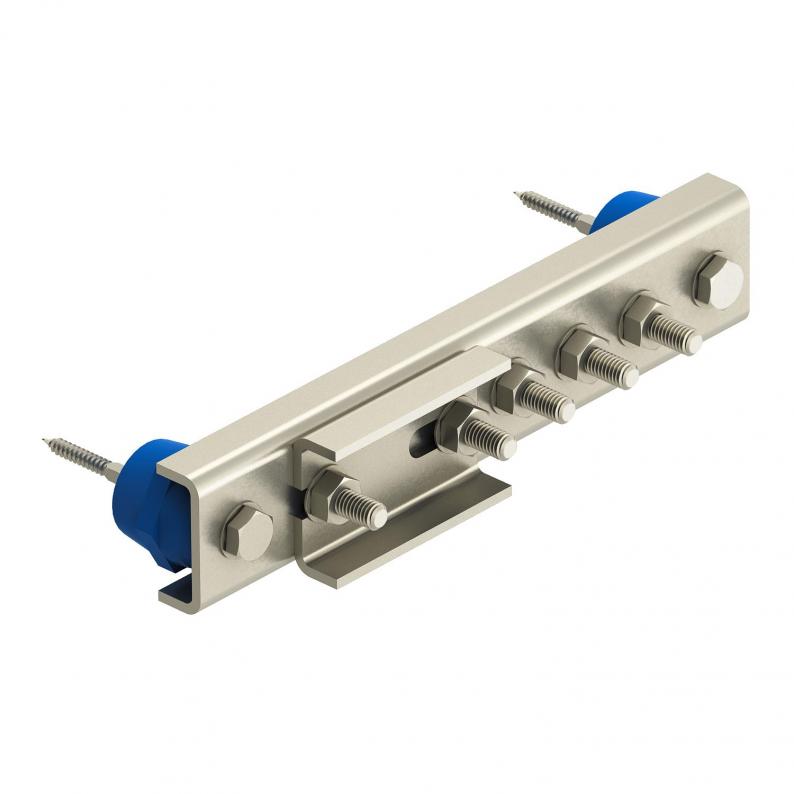

Equipotential busbar for EX zone 1/21, 2/22
Type EX PAS 5 | Item no. 5015265 | EAN 4012196427628
Item no. / Type
Length
Width
Height
Number of connections
Smallest selling unit: 1 piece
1piece
Description
For ignition spark-free protection/functional equipotential bonding to DIN VDE 0100-410/-540 as well as ignition spark-free lightning protection equipotential bonding to VDE 0185-305 (IEC 62305) in systems to VDE 0165-1 (IEC/ EN 60079-14)
• Use in potentially explosive areas, Ex zone 1 and 2/21 and 22
• Tested according to explosion group IIC
• Lightning current carrying capacity class H (100 kA) to VDE 0185-561-1 (IEC/EN 62561-1)
• UV-resistant and halogen-free insulation feet
• With spring washer for locking screws against self-loosening to VDE 0185-305-3 Supplementary sheet 2
• Suitable for indoor and outdoor applications
• Use in potentially explosive areas, Ex zone 1 and 2/21 and 22
• Tested according to explosion group IIC
• Lightning current carrying capacity class H (100 kA) to VDE 0185-561-1 (IEC/EN 62561-1)
• UV-resistant and halogen-free insulation feet
• With spring washer for locking screws against self-loosening to VDE 0185-305-3 Supplementary sheet 2
• Suitable for indoor and outdoor applications
Technical data
Dimensions
| Length | 279 mm |
|---|---|
| Width | 54 mm |
| Height | 4 mm |
Technical data
| Number of connections | 5 |
|---|---|
| Insulator | yes |
| Quantity of round conductor connections, total | 5 |
| Quantity of round conductor connections 8 mm | 0 |
| Quantity of round conductor connections 10 mm | 0 |
| Quantity of round conductor connections 8-10 mm | 0 |
| Quantity of flat conductor connections up to 30 mm | 0 |
| Quantity of flat conductor connections up to 40 mm | 1 |
| Quantity of cable connections up to 6 mm², rigid | 0 |
| Quantity of cable connections up to 16 mm², rigid | 0 |
| Quantity of cable connections up to 25 mm², rigid | 0 |
| Quantity of cable connections up to 95 mm², rigid | 0 |
| Material of the contact rail | Rustproof steel (V2A) |
| Material of the terminal | Rustproof steel (V2A) |
| Version for | Only terminal |
| Lightning current carrying capacity | H/100 kA |
| Type | Fixed structure |
| Dimension | 5xM10 |
| Material | Stainless steel 1.4301 |
| CO2 Footprint (GWP) Cradle-to-Gate | 7,7523 kg CO2e / 1 Piece |
