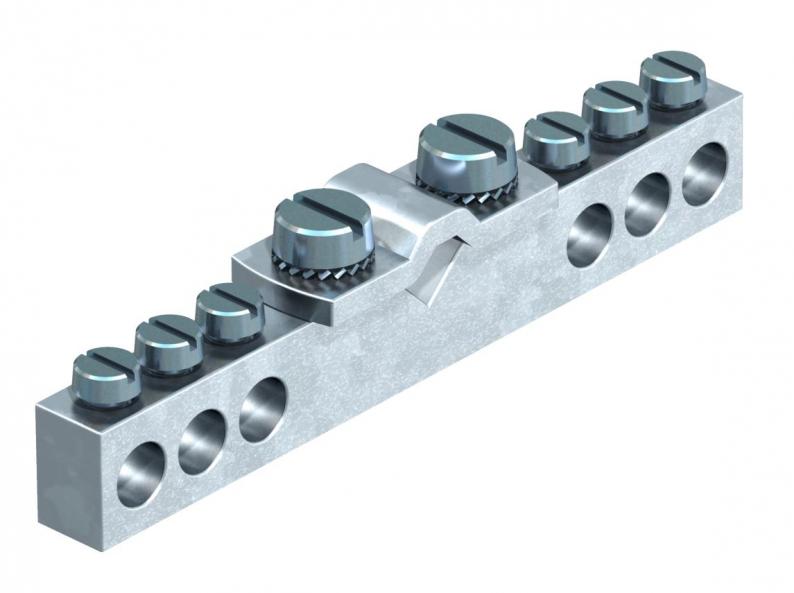

Equipotential busbar for bathrooms
Type 1804
|Item no. 5015553
|EAN 4012195378495
Item no. / Type
5015553 / 1804
Smallest selling unit: 5 piece
5piece
piece
Description
• Nickel-plated brass contact strip
• Screws and clamp made of electrogalvanised steel
Connection options:
• 6 cables 1.5-10 mm²
• 1 cable 6-16 mm²
• Screws and clamp made of electrogalvanised steel
Connection options:
• 6 cables 1.5-10 mm²
• 1 cable 6-16 mm²
Technical data

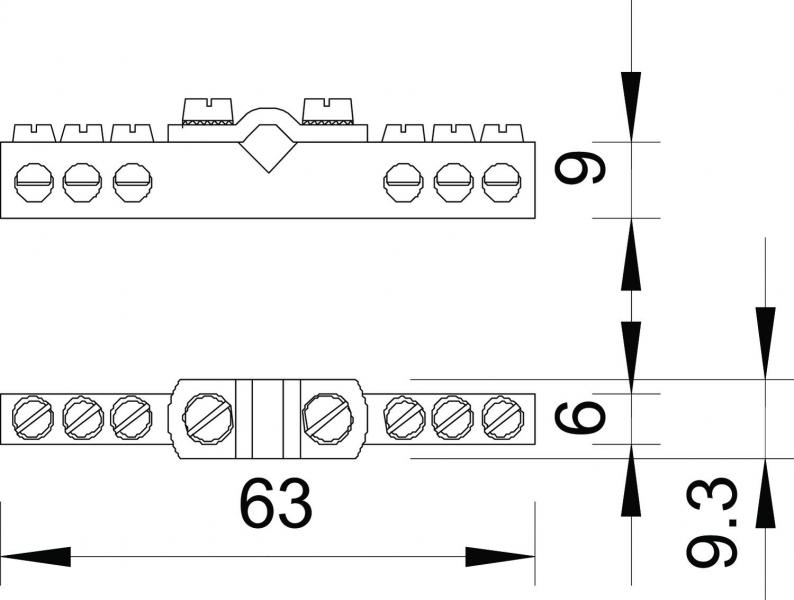

Dimensions
| Length | 63 mm |
|---|---|
| Width | 9,3 mm |
| Height | 9 mm |
Materials and Packaging
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
Technical data
| Insulator | no |
|---|---|
| Quantity of round conductor connections, total | 7 |
| Quantity of round conductor connections 8 mm | 0 |
| Quantity of round conductor connections 10 mm | 0 |
| Quantity of round conductor connections 8-10 mm | 0 |
| Quantity of flat conductor connections up to 30 mm | 0 |
| Quantity of flat conductor connections up to 40 mm | 0 |
| Quantity of cable connections up to 6 mm², rigid | 6 |
| Quantity of cable connections up to 16 mm², rigid | 1 |
| Quantity of cable connections up to 25 mm², rigid | 0 |
| Quantity of cable connections up to 95 mm², rigid | 0 |
| Material of the contact rail | Brass |
| Material of the terminal | Steel |
| Surface of the contact rail | Nickel-plated |
| Surface of the terminal | Electrogalvanised |
| Version for | Without cover hood |
| Type | Fixed structure |
| Dimension | 409 |
| Material | Brass |
CO2 footprint (Product Carbon Footprint)
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0917 kg CO2e / 1 Piece |
|---|
