Equipotential busbar 1809 for concealed mounting

Type 1809 UP | Item no. 5015065 | EAN 4012195378198

Data sheet (PDF)

RoHS Declaration of conformity (PDF)

REACH Declaration of conformity (PDF)

Declaration of conformity (PDF)

Show all variants

Item no. / Type

5015065 / 1809 UP

Smallest selling unit: 1 piece

Description Technical data Downloads Variants

Description

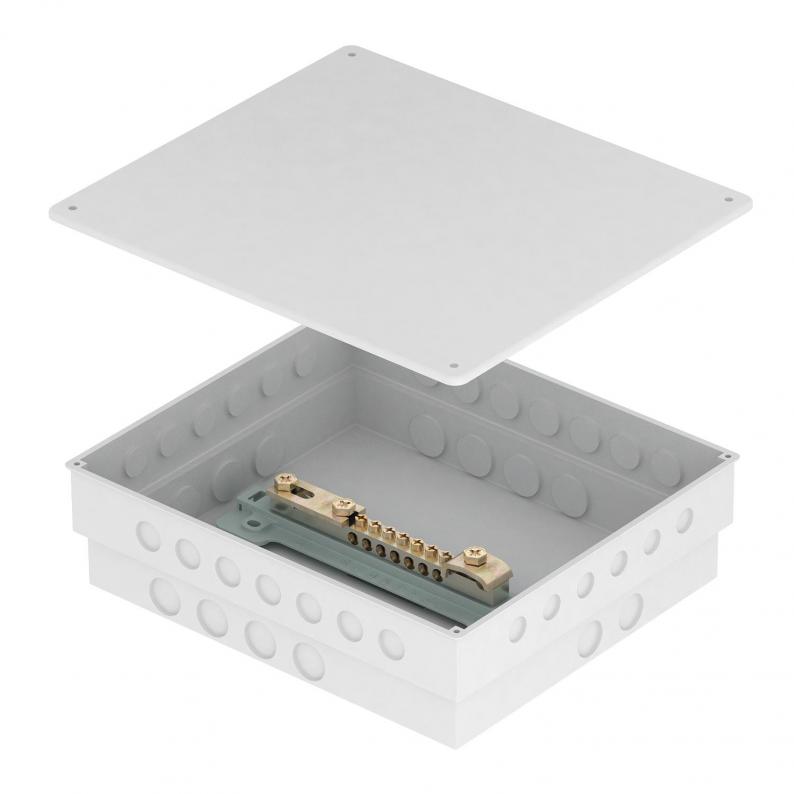

• Mounted equipotential busbar 1809 (without cover hood) in concealed housing

• Pre-marked concealed housing for inserting required cables and cover

• Contact strip made of nickel-plated brass

• Bolts and crossbar made of electrogalvanised steel

• Capable of carrying lightning current 100 kA (10/350)

Connection options:

• 7x cables up to 25 mm²

• 1 round conductor Rd 8–10

• 1 flat conductor up to FL 30 or round conductor Rd 8–10

Technical data

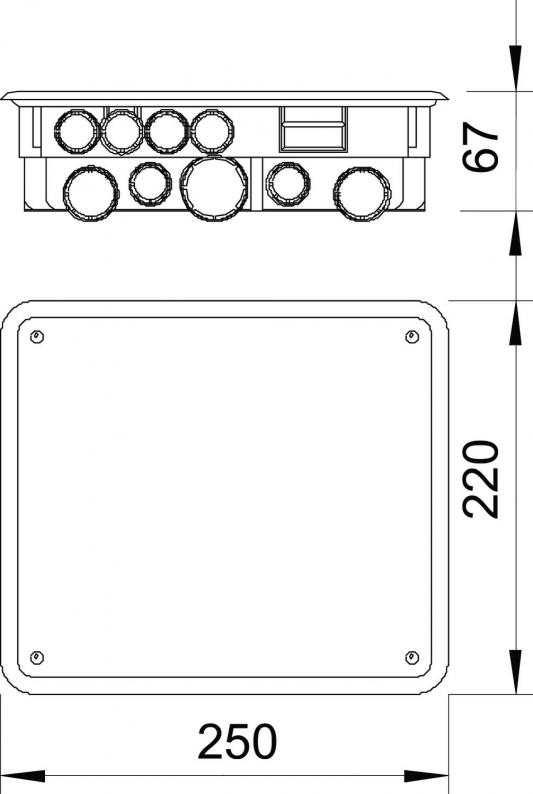

Dimensions

Length	250 mm
Width	220 mm
Height	67 mm

Technical data

Insulator	yes
Quantity of round conductor connections, total	1
Quantity of round conductor connections 8 mm	0
Quantity of round conductor connections 10 mm	0
Quantity of round conductor connections 8-10 mm	1
Quantity of flat conductor connections up to 30 mm	1
Quantity of flat conductor connections up to 40 mm	0
Quantity of cable connections up to 6 mm², rigid	0
Quantity of cable connections up to 16 mm², rigid	0
Quantity of cable connections up to 25 mm², rigid	7
Quantity of cable connections up to 95 mm², rigid	0
Material of the contact rail	Brass
Material of the terminal	Steel
Surface of the contact rail	Nickel-plated
Surface of the terminal	Electrogalvanised
Version for	In the housing
Type	Fixed structure
Dimension	50x5mm
Material	Brass
CO2 Footprint (GWP) Cradle-to-Gate	0,6007 kg CO2e / 1 Piece
