Equipotential busbar 1804 for surface mounting

Type 1804 AP

Item no. 5015557

EAN 4012195477839

Data sheet (PDF)

Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Show all variants

Item no. / Type

5015557 / 1804 AP

Colour

Light grey; RAL 7035

Smallest selling unit: 10 piece

piece

Description Technical data Downloads Variants

Description

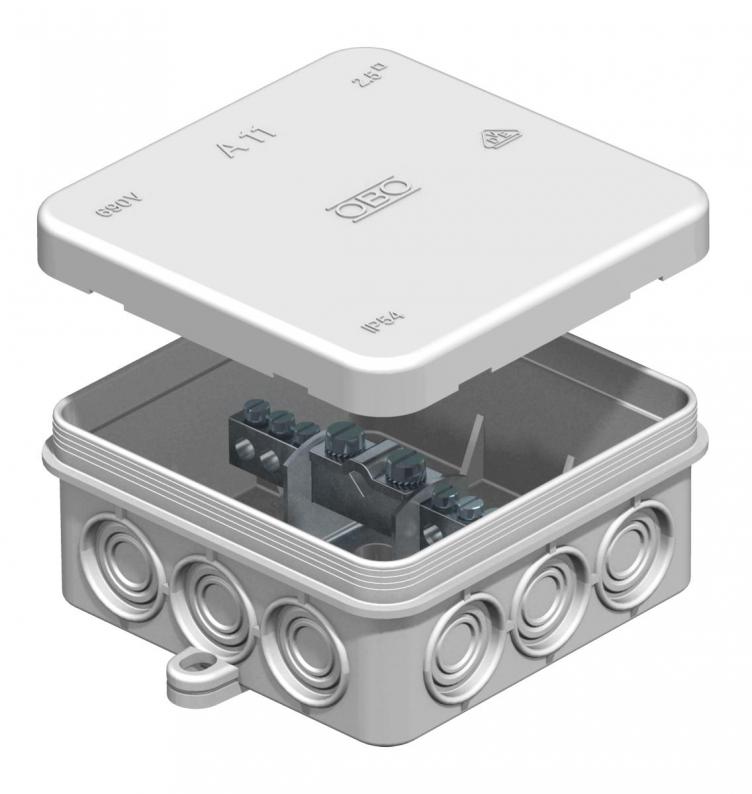

• Mounted equipotential busbar 1804 in junction box

• Pre-marked junction box for inserting required cables and covers

• Contact strip made of nickel-plated brass

• Screws and clamp strap from hot-dip galvanised steel

Connection options:

• 6x cables 1.5–10 mm²

• 1x cable 6–16 mm²

Technical data

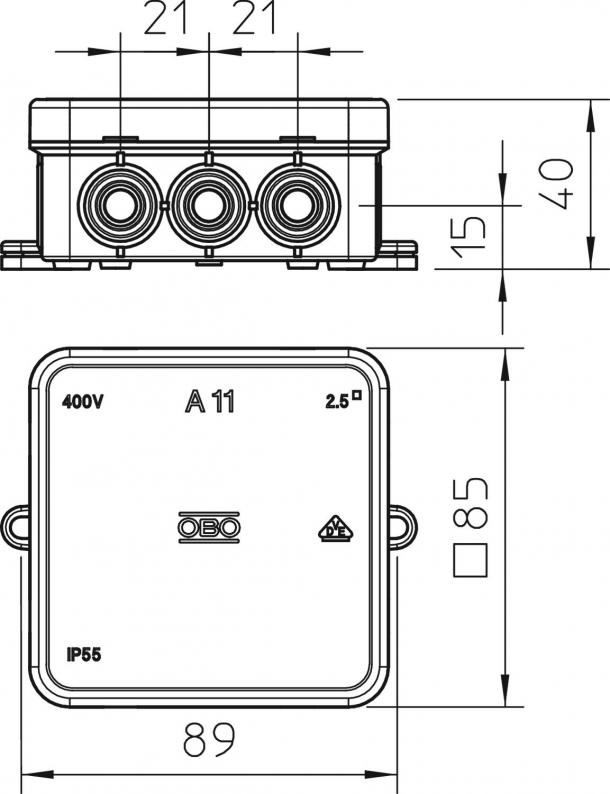

Dimensions

Length	90,5 mm
Width	90,5 mm
Height	39,3 mm

Materials and Packaging

Packaging made completely from recycled cardboard.	yes
Packaging without plastic	yes

Technical data

Insulator	yes
Quantity of round conductor connections, total	7
Quantity of round conductor connections 8 mm	0
Quantity of round conductor connections 10 mm	0
Quantity of round conductor connections 8-10 mm	0
Quantity of flat conductor connections up to 30 mm	0
Quantity of flat conductor connections up to 40 mm	0
Quantity of cable connections up to 6 mm², rigid	6
Quantity of cable connections up to 16 mm², rigid	1
Quantity of cable connections up to 25 mm², rigid	0
Quantity of cable connections up to 95 mm², rigid	0
Material of the contact rail	Brass
Material of the terminal	Steel
Surface of the contact rail	Nickel-plated
Surface of the terminal	Electrogalvanised
Version for	In the housing
Type	Fixed structure
Dimension	90,5x90,5x39
Material	Polyethylene
Colour	Light grey; RAL 7035

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate	0,2701 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)

Catalogues & Flyers (2)

Declarations (2)

Product images (2)

3D data downloads (1)

Tender specifications (2)

Variants

1804 AP

Item no.

5015557

Length

90,5

Width

90,5

Height

39,3

Colour

Light grey; RAL 7035
