Equipotential busbar 1804 for concealed mounting
Type 1804 UP | Item no. 5015545 | EAN 4012195378433
Item no. / Type
5015545 / 1804 UP
Smallest selling unit: 5 piece
5piece
Description

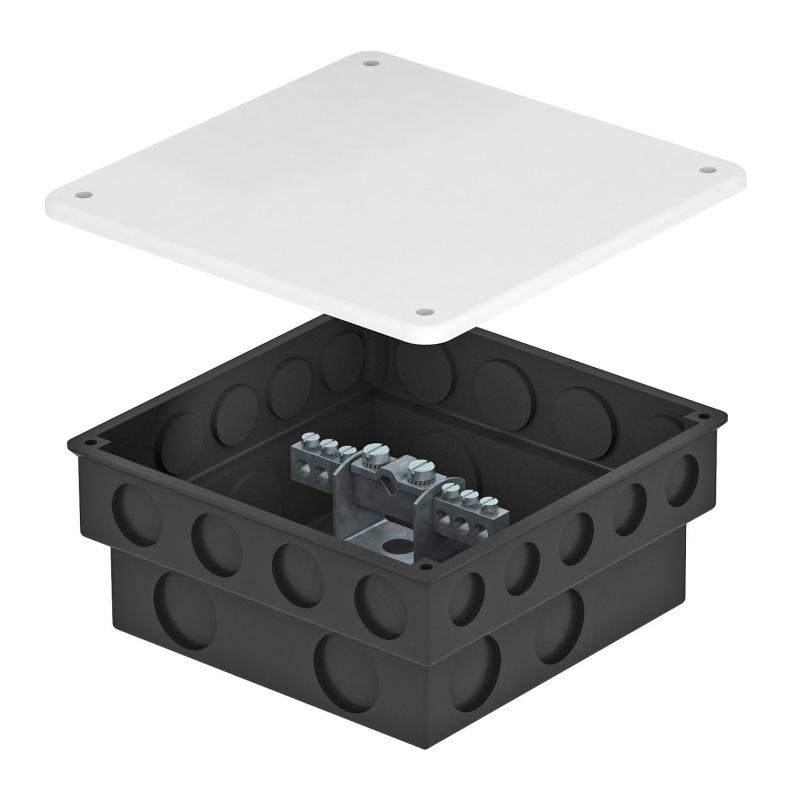

• Mounted equipotential busbar 1804 in concealed housing
• Pre-marked concealed housing for inserting required cables and covers
• Contact strip made of nickel-plated brass
• Bolts and crossbar made of electrogalvanised steel
Connection options:
• 6x cables 1.5–10 mm²
• 1x cable 6–16 mm²
• Pre-marked concealed housing for inserting required cables and covers
• Contact strip made of nickel-plated brass
• Bolts and crossbar made of electrogalvanised steel
Connection options:
• 6x cables 1.5–10 mm²
• 1x cable 6–16 mm²
Technical data

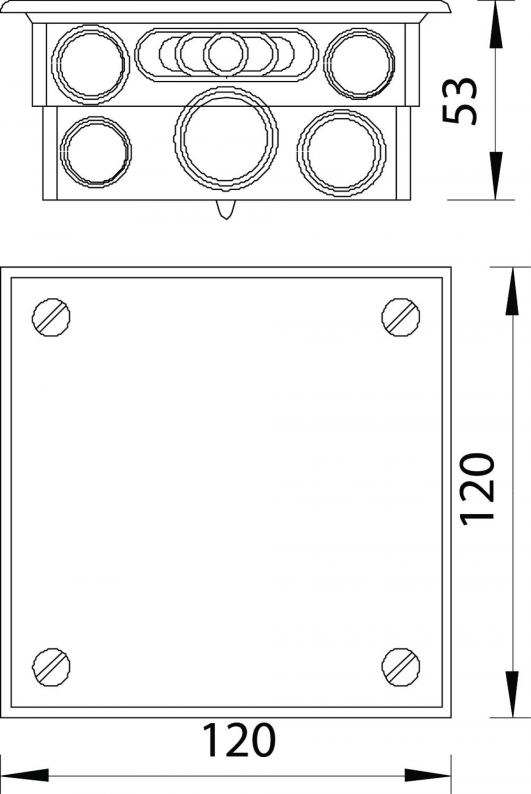

Dimensions
| Length | 120 mm |
|---|---|
| Width | 120 mm |
| Height | 53 mm |
Technical data
| Insulator | yes |
|---|---|
| Quantity of round conductor connections, total | 7 |
| Quantity of round conductor connections 8 mm | 0 |
| Quantity of round conductor connections 10 mm | 0 |
| Quantity of round conductor connections 8-10 mm | 1 |
| Quantity of flat conductor connections up to 30 mm | 1 |
| Quantity of flat conductor connections up to 40 mm | 0 |
| Quantity of cable connections up to 6 mm², rigid | 0 |
| Quantity of cable connections up to 16 mm², rigid | 7 |
| Quantity of cable connections up to 25 mm², rigid | 0 |
| Quantity of cable connections up to 95 mm², rigid | 0 |
| Material of the contact rail | Brass |
| Material of the terminal | Steel |
| Surface of the contact rail | Nickel-plated |
| Surface of the terminal | Electrogalvanised |
| Version for | In the housing |
| Type | Fixed structure |
| Dimension | 50x5mm |
| Material | Brass |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0748 kg CO2e / 1 Piece |
