End piece, Style, right
Type GAD ER Style EL | Item no. 6115965 | EAN 4012195914471
Item no. / Type
6115965 / GAD ER Style EL
Colour
aluminium
Smallest selling unit: 0 translation missing
0translation missing
Description
End piece for design device installation trunking of the GAD series. "Style" design version. The end piece can only be used for closing on the right side.
Standard version in anodised aluminium, different decoration on request.
Standard version in anodised aluminium, different decoration on request.
Technical data

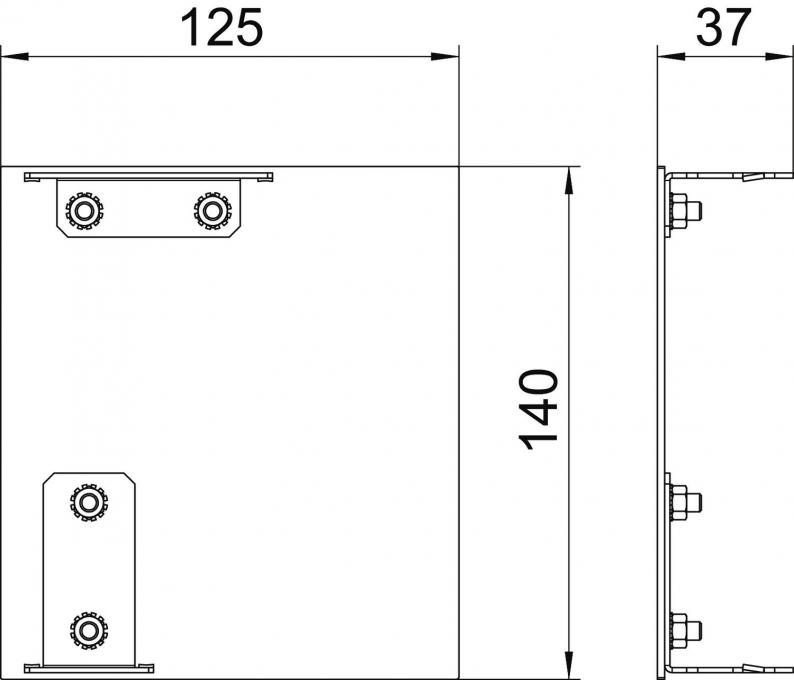

Dimensions
| Length | 37 mm |
|---|---|
| Width | 140 mm |
| Height | 125 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Protective film | yes |
| Cut lamination | no |
| for duct width | 140 mm |
| for trunking height | 114 mm |
| Version for | Asymmetrical |
| Fastening type | Lockable |
| Suitable for | Right |
| Dimension | 125x140x37 |
| Surface | Anodised |
| Material | Aluminium |
| Colour | aluminium |
| Antibacterial treatment | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,8795 kg CO2e / 1 Piece |
