End cap MS4022

End cap MS4022

Type MS4022 SK | Item no. 1124555 | EAN 4012195785316

Show all variants
Item no. / Type
1124555 / MS4022 SK
Version for
End cap

Smallest selling unit: 25 piece

DescriptionTechnical dataDownloadsVariants

Description

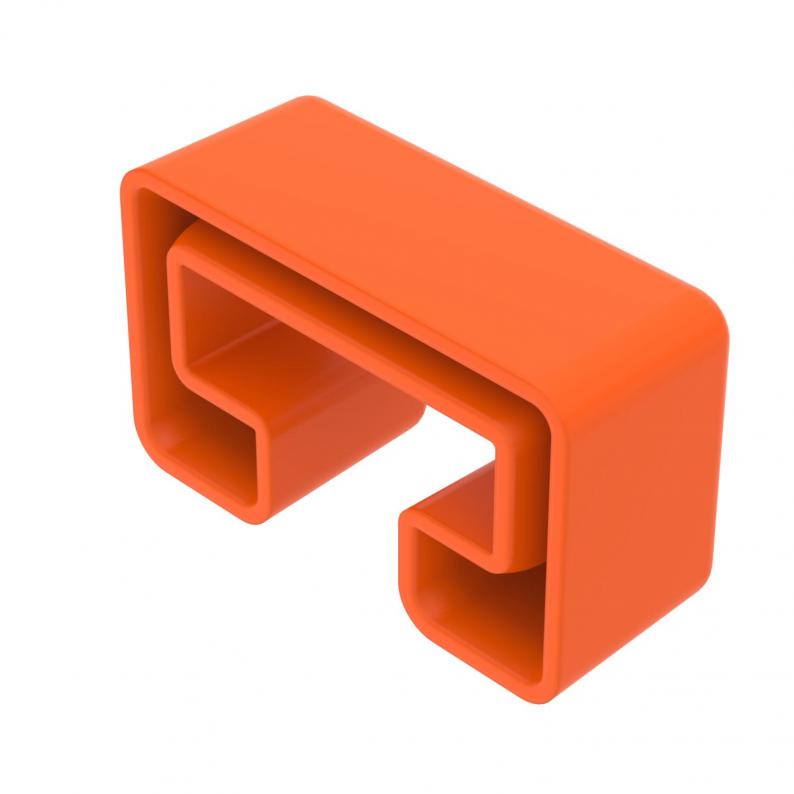

End caps for profile rail, type MS4022.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

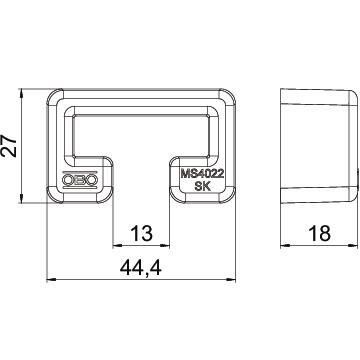

Dimensions

Length27 mm
Width44,4 mm
Height18 mm

Technical data

Halogen-freeyes
Suitable for profile shapesC profile
Version forEnd cap
Dimension45x18mm
MaterialPolyethylene
ColourPastel orange; RAL 2003
CO2 Footprint (GWP) Cradle-to-Gate0,0253 kg CO₂e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Product images (2)
3D data downloads (2)
Tender specifications (2)

Variants

MS4022 SK
Item no.
1124555
Version for
End cap
