Empty housing X 25

Empty housing X 25

Type X25C SW
|
Item no. 2005614
|
EAN 4012196580743
Show all variants
Item no. / Type
Clear internal dimensions
Colour

Smallest selling unit: 1 piece

piece

Description

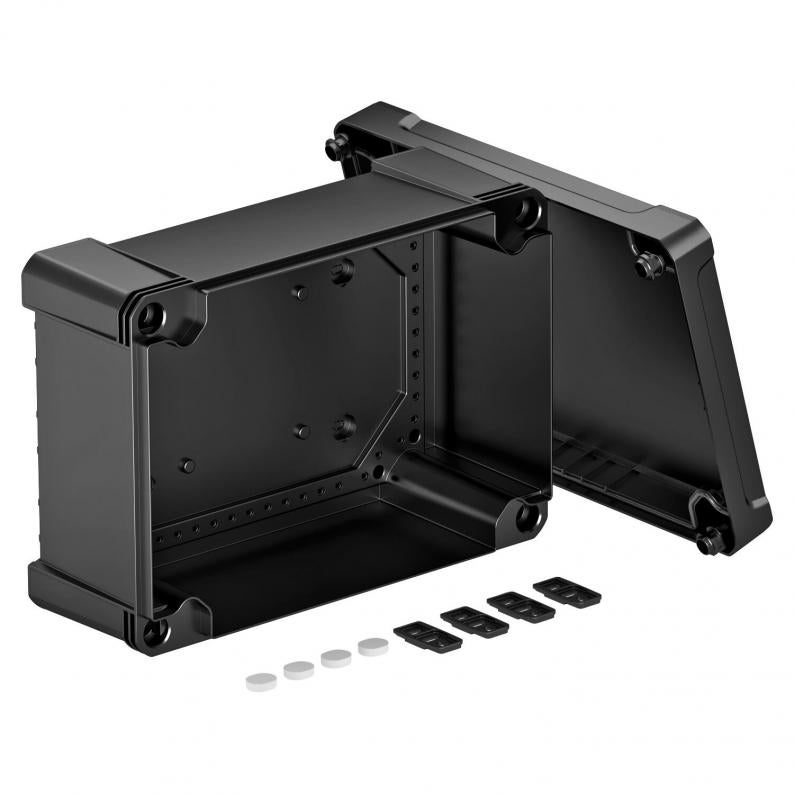

Junction box for the connection of cables and lines indoors and in outdoor areas. Rectangular design without entries. Suitable for wall and ceiling mounting with the option to fasten outside, inside or to mount via the corner domes. Particularly impact resistant with IK09. Cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.

Junction box according to EN 60670. Impact resistance IK09 according to EN 50102. Protection rating IP67 according to EN 60529.


  • ENEC Austria
  • Österreichischer Verband für Elektrotechnik, Austria
  • Flame resistant 650 °C
  • UV-resistant
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 67
  • IK Code 09
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

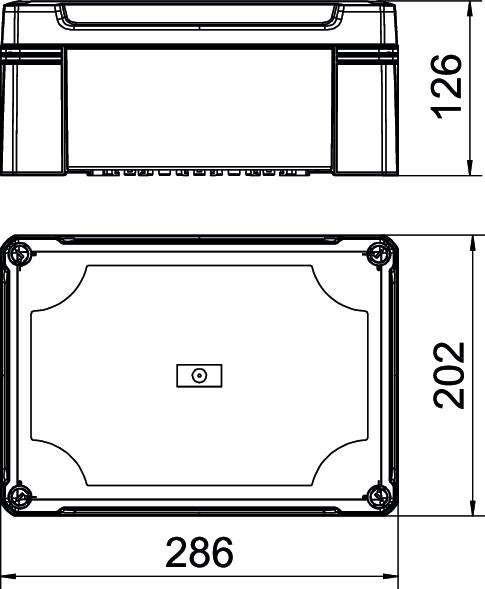

Dimensions

Length286 mm
Width202 mm
Height126 mm
Clear internal dimensions271x187x110 mm

Technical data

Protection ratingIP67
with lidyes
Extension optionno
Cover fasteningScrewed
ShapeRectangular
Weatherproofyes
Protection rating IK codeIK09
Suitable for outdoor useyes
Permitted temperature range, min.-25 °C
Permitted temperature range, max.65 °C
Dimension286x202x125
MaterialPolycarbonate
ColourGraphite black; RAL 9011

Environmental Data

3,7102 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate3,7102 kg CO2e / 1 Piece
CO₂ Footprint (GWP)3,7102 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
X25C LGR
Item no.
2005474
Clear internal dimensions
271x187x110
Protection rating
IP67
Colour
Light grey; RAL 7035
X25C SW
Item no.
2005614
Clear internal dimensions
271x187x110
Protection rating
IP67
Colour
Graphite black; RAL 9011
