Empty housing X 10 with hat profile rail

Type X10C R LGR-TR | Item no. 2005564 | EAN 4012196582907

Data sheet (PDF)

Declaration of conformity (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Show all variants

Item no. / Type

Clear internal dimensions

Colour

Protection rating

IP67

Smallest selling unit: 1 piece

Description Technical data Downloads Variants

Description

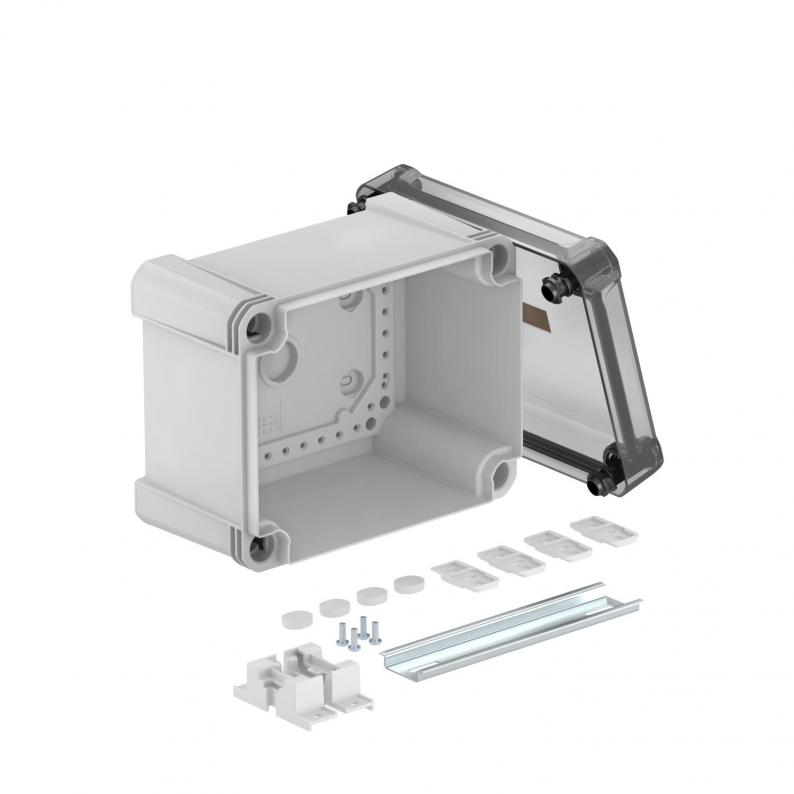

Junction box with hat profile rail for the connection of cables in indoor and outdoor areas. Rectangular design without entries. Suitable for wall and ceiling mounting with the option to fasten outside, inside or to mount via the corner domes. Particularly impact resistant with IK09. Transparent cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.

With hat profile rail, type 2069, and fastening set.

Junction box according to DIN EN 60670. Impact resistance IK09 according to DIN EN 50102. Protection rating IP67 according to DIN EN 60529.

Technical data

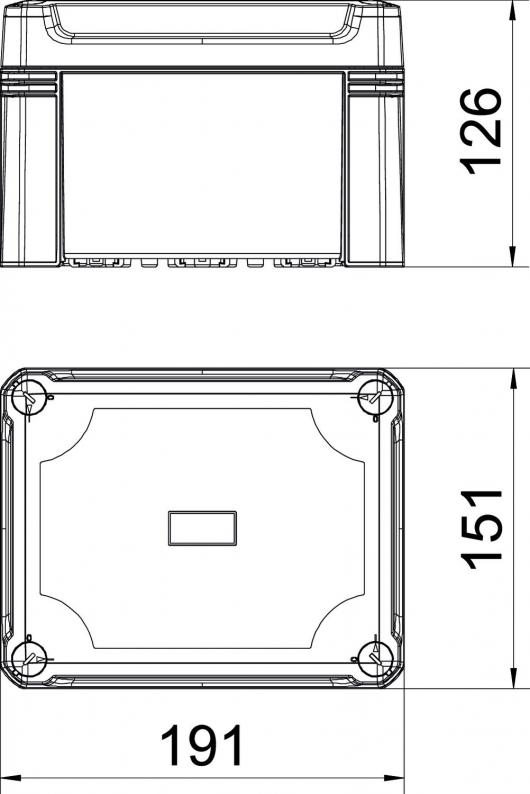

Dimensions

Length	191 mm
Width	151 mm
Height	126 mm
Clear internal dimensions	177x137x110 mm

Technical data

Transparent lid	yes
Protection rating	IP67
with lid	yes
Extension option	no
Cover fastening	Screwed
Shape	Square
Weatherproof	yes
Protection rating IK code	IK09
Suitable for outdoor use	yes
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Dimension	190x150x125
Material	Polycarbonate
Colour	Grey / transparent
CO2 Footprint (GWP) Cradle-to-Gate	2,4814 kg CO₂e / 1 Piece

Downloads

0 selected

Data sheet (1)

Catalogues & Flyers (4)

Declarations (4)

Certificates (1)

Instructions and Aid (2)

Product images (2)

Tender specifications (2)

Variants

Colour

X10C R LGR

Item no.

2005494

Clear internal dimensions

177x137x110

Protection rating

IP67

Colour

Light grey; RAL 7035

X10C R LGR-TR

Item no.

2005564

Clear internal dimensions

177x137x110

Protection rating

IP67

Colour

Grey / transparent
