Empty housing X 10

Empty housing X 10

Type X10C LGR-TR | Item no. 2005536 | EAN 4012196577781

Show all variants
Item no. / Type
Clear internal dimensions
Colour
Protection rating
IP67

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

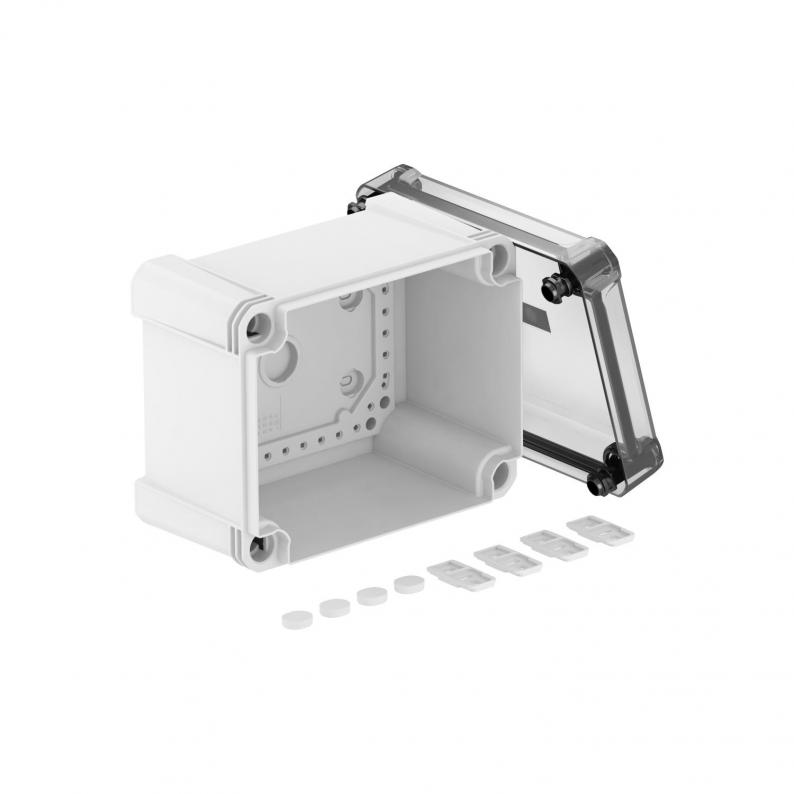

Junction box for the connection of cables and lines indoors and in outdoor areas. Rectangular design without entries. Suitable for wall and ceiling mounting with the option to fasten outside, inside or to mount via the corner domes. Particularly impact resistant with IK09. Transparent cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.

Junction box according to DIN EN 60670. Impact resistance IK09 according to DIN EN 50102. Protection rating IP67 according to DIN EN 60529.


  • ENEC Austria
  • Flame resistant 650 °C
  • UV-resistant
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 67
  • IK Code 09
  • Nominal voltage 750 V
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length191 mm
Width151 mm
Height126 mm
Clear internal dimensions177x137x110 mm

Technical data

Transparent lidyes
Protection ratingIP67
with lidyes
Extension optionno
Cover fasteningScrewed
ShapeSquare
Weatherproofyes
Protection rating IK codeIK09
Suitable for outdoor useyes
Permitted temperature range, max.60 °C
Permitted temperature range, min.-5 °C
Dimension190x150x125
MaterialPolycarbonate
ColourGrey / transparent
CO2 Footprint (GWP) Cradle-to-Gate2,2311 kg CO₂e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (3)
Certificates (1)
Instructions and Aid (2)
Product images (2)
Tender specifications (2)

Variants

Colour
X10C LGR
Item no.
2005466
Clear internal dimensions
177x137x110
Protection rating
IP67
Colour
Light grey; RAL 7035
X10C LGR-TR
Item no.
2005536
Clear internal dimensions
177x137x110
Protection rating
IP67
Colour
Grey / transparent
X10C SW
Item no.
2005606
Clear internal dimensions
177x137x110
Protection rating
IP67
Colour
Graphite black; RAL 9011
