Empty housing X 01

Type X01C LGR | Item no. 2005450 | EAN 4012196577569

Data sheet (PDF)

Declaration of conformity (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Show all variants

Item no. / Type

Clear internal dimensions

Colour

Protection rating

IP67

Smallest selling unit: 1 piece

Description Technical data Downloads Variants

Description

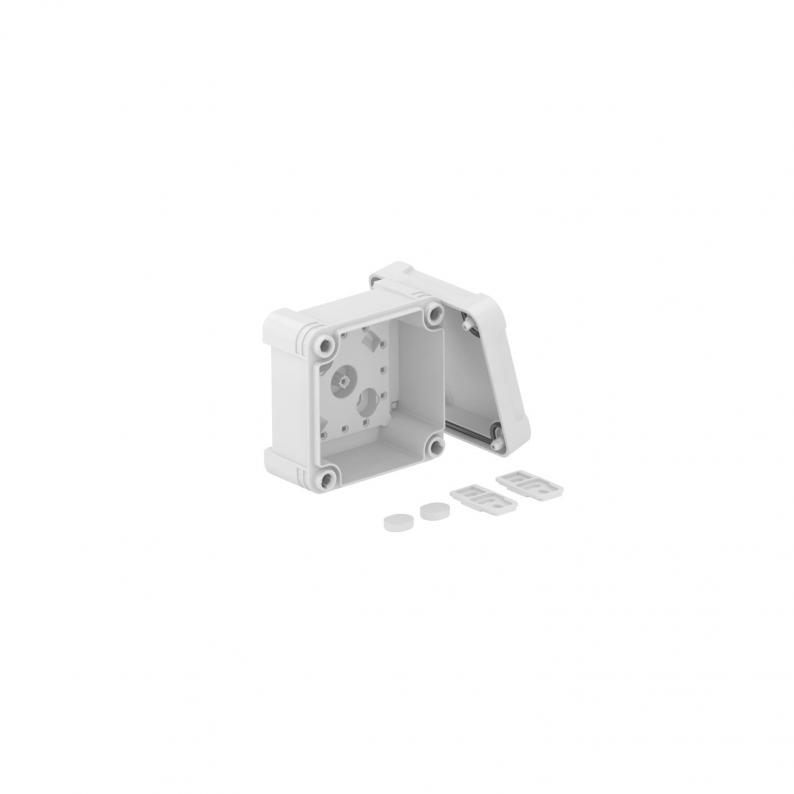

Junction box for the connection of cables and lines indoors and in outdoor areas. Square design without entries. Suitable for wall and ceiling mounting with the option to fasten outside, inside or to mount via the corner domes. Particularly impact resistant with IK09. Cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.

Junction box according to EN 60670. Impact resistance IK09 according to EN 50102. Protection rating IP67 according to EN 60529.

Technical data

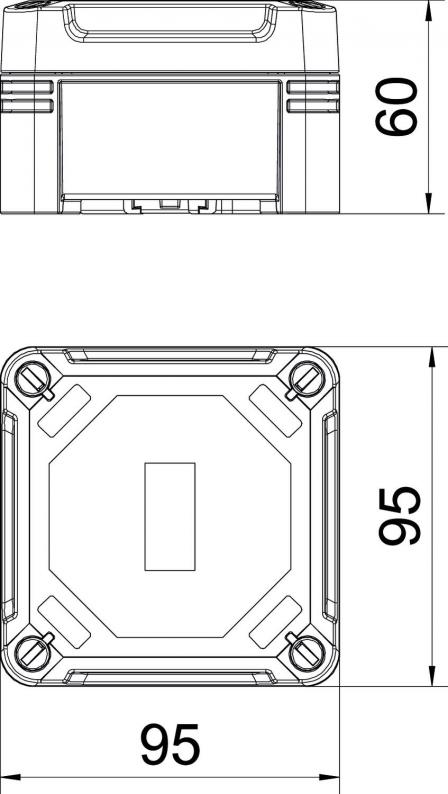

Dimensions

Length	95 mm
Width	95 mm
Height	60 mm
Clear internal dimensions	85x85x45 mm

Technical data

Protection rating	IP67
with lid	yes
Extension option	no
Cover fastening	Screwed
Shape	Square
Weatherproof	yes
Protection rating IK code	IK09
Suitable for outdoor use	yes
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Dimension	95x95x60
Material	Polycarbonate
Colour	Light grey; RAL 7035
CO2 Footprint (GWP) Cradle-to-Gate	0,6807 kg CO₂e / 1 Piece

Downloads

0 selected

Data sheet (1)

Catalogues & Flyers (4)

Declarations (4)

Certificates (1)

Instructions and Aid (2)

Product images (2)

Tender specifications (2)

Variants

Colour

X01C LGR

Item no.

2005450

Clear internal dimensions

85x85x45

Protection rating

IP67

Colour

Light grey; RAL 7035

X01C LGR-TR

Item no.

2005520

Clear internal dimensions

85x85x45

Protection rating

IP67

Colour

Grey / transparent

X01C SW

Item no.

2005590

Clear internal dimensions

85x85x45

Protection rating

IP67

Colour

Graphite black; RAL 9011
