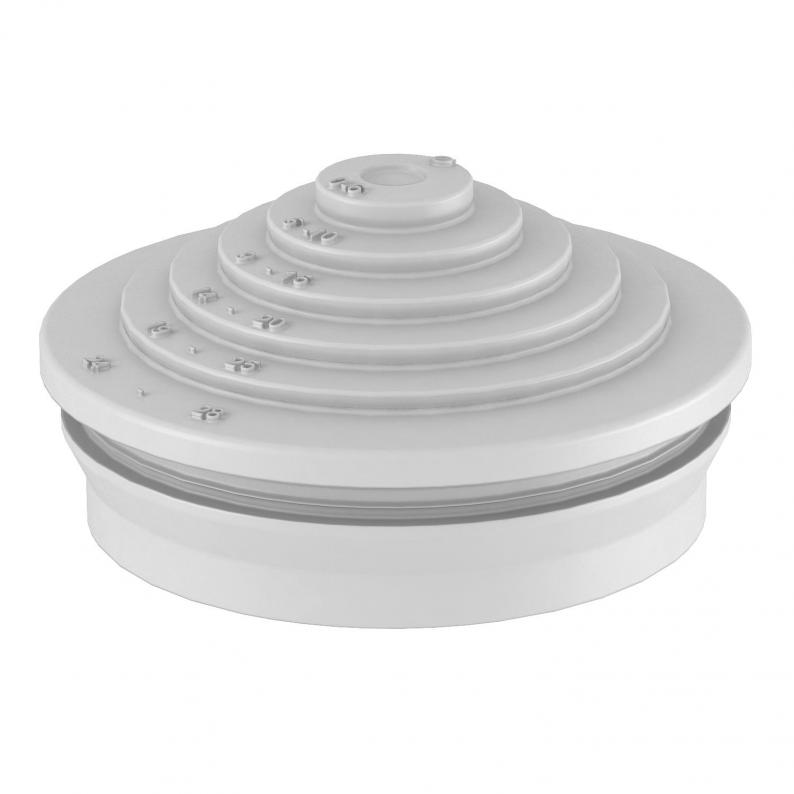

EDS plug-in seal, light grey
Type EDS M32 LGR | Item no. 2012358 | EAN 4012196478088
Item no. / Type
for diameter, max.
for diameter, min.
Size
Colour
Light grey; RAL 7035
Smallest selling unit: 50 piece
50piece
Description
The push-in nipple can be cut back to suit the relevant cable diameter.
Technical data

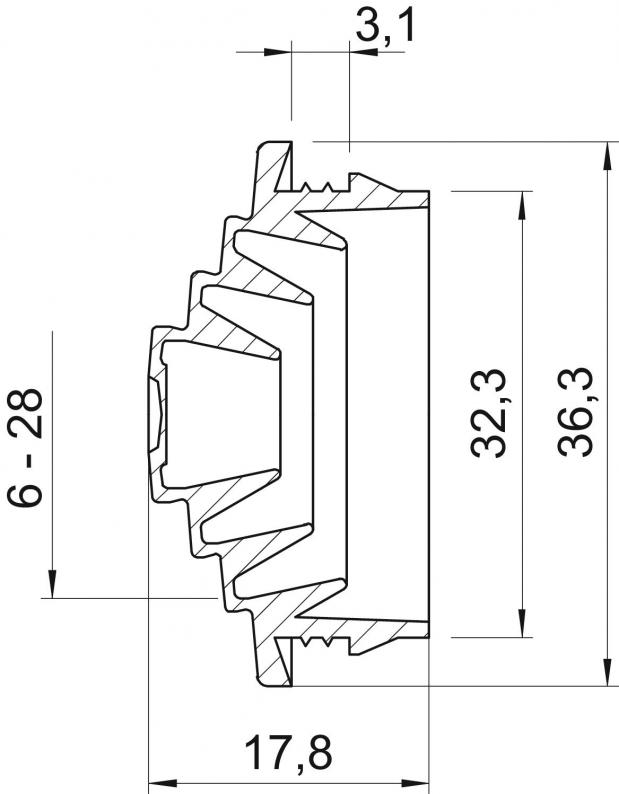

Dimensions
| Dimension D1 | 36,3 mm |
|---|---|
| Dimension D2 | 32,3 mm |
| Dimension L | 17,8 mm |
| Dimension A | 3,1 mm |
| Dimension D3 | 6 mm |
| Dimension D5 | 15 mm |
| Dimension t | 3,1 mm |
| Dimension D4 | 10 mm |
Technical data
| for diameter, max. | 28 mm |
|---|---|
| for diameter, min. | 0 mm |
| Halogen-free | yes |
| Protection rating | IP54 |
| Size | M32 |
| for wall thickness, max. | 3,1 |
| for wall thickness, min. | 2,5 |
| Nominal diameter | 32 mm |
| Version for | Cuttable |
| Flame-resistant | acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C |
| Dimension | M32 |
| Material | Thermoplastic elastomer |
| Colour | Light grey; RAL 7035 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0142 kg CO₂e / 1 Piece |
