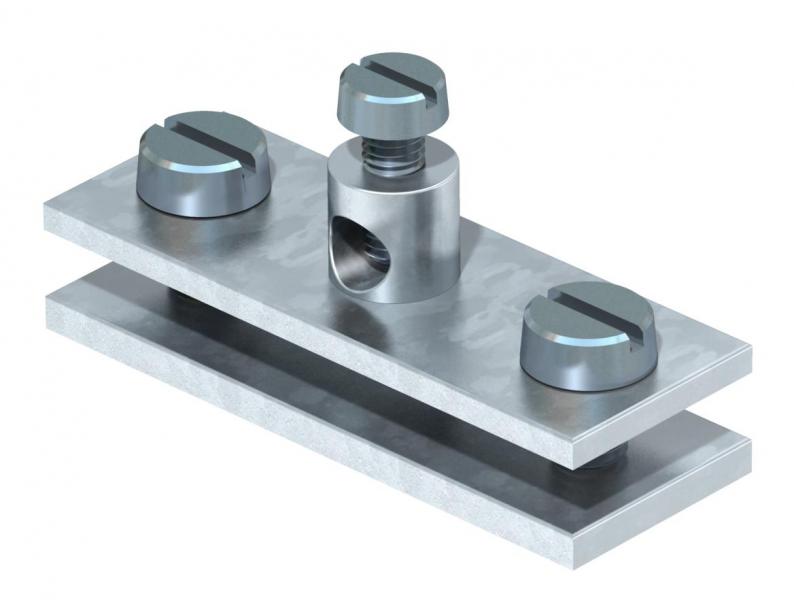

Earthing terminal for cables and flat conductors G
Type 939
|Item no. 5043107
|EAN 4012195386056
Item no. / Type
5043107 / 939
Suitable for
Round conductor
Smallest selling unit: 25 piece
25piece
piece
Description
• For cables up to 16 mm2 and flat conductors
• Fit: Cable up to 16 mm2, or 10 mm2 cable with wire ferrule X max. FL 30
• With connection terminal riveted from brass and with 1 cylinder bolt M5 x 12, with 2 cylinder bolts M6 x 16
• Fit: Cable up to 16 mm2, or 10 mm2 cable with wire ferrule X max. FL 30
• With connection terminal riveted from brass and with 1 cylinder bolt M5 x 12, with 2 cylinder bolts M6 x 16
Technical data
Materials and Packaging
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
Technical data
| Suitable for | Round conductor |
|---|---|

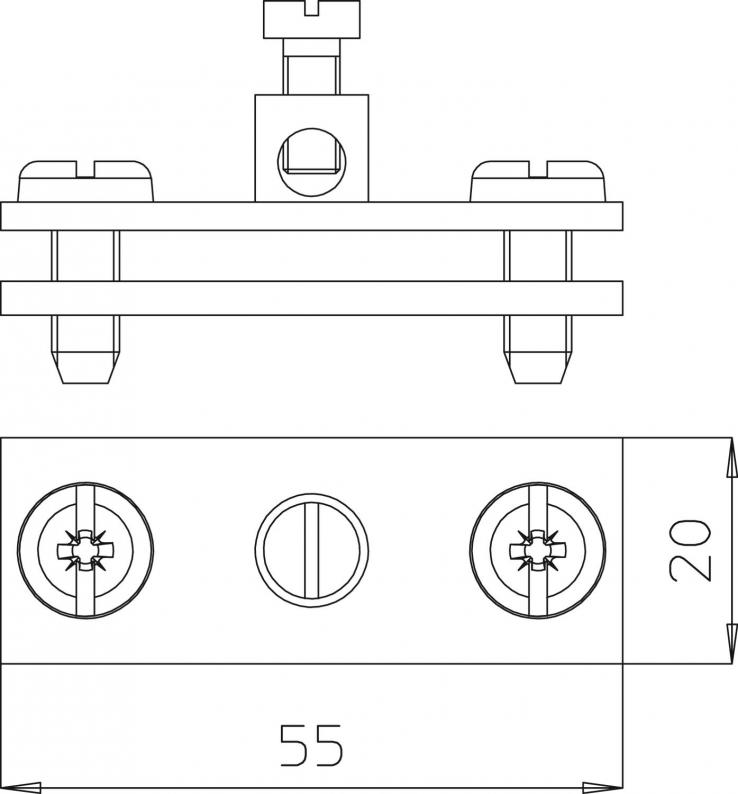

| Dimension | 55mm |
| Surface | Electrogalvanized |
| Material | Steel |
CO2 footprint (Product Carbon Footprint)
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1255 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Product images (2)
3D data downloads (3)
Tender specifications (2)
