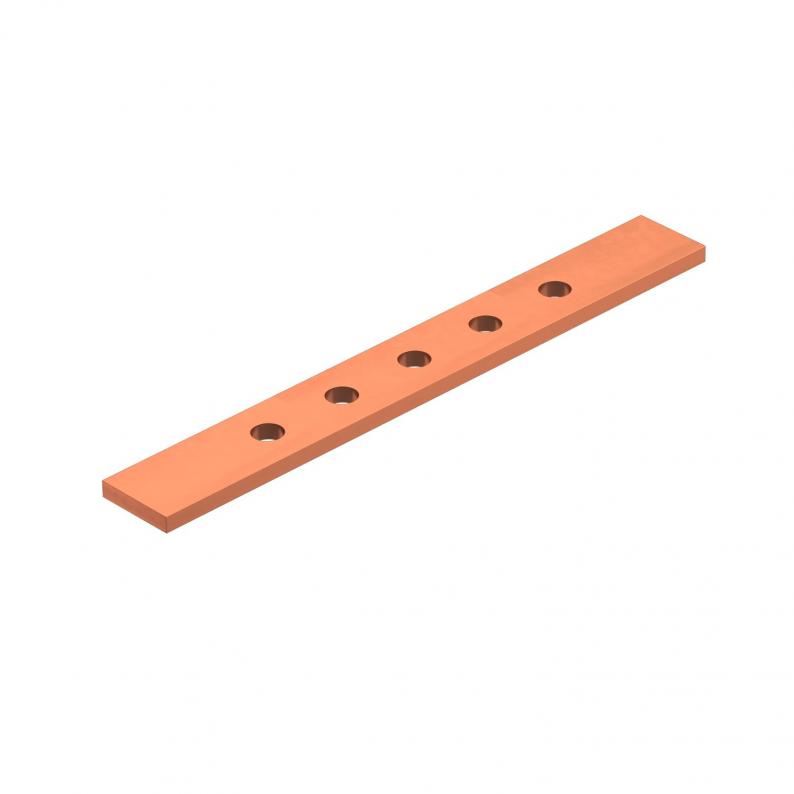

Earthing rail for UF separation point
Type 5700 PIP EB
|Item no. 5106050
|EAN 4012196439614
Item no. / Type
5106050 / 5700 PIP EB
Material
Copper
Smallest selling unit: 1 piece
1piece
piece
Description
• For UF test box 5700 CIP/PIP
• With 5 connection holes
• Diameter of drill hole 11 mm
• With 5 connection holes
• Diameter of drill hole 11 mm
Technical data

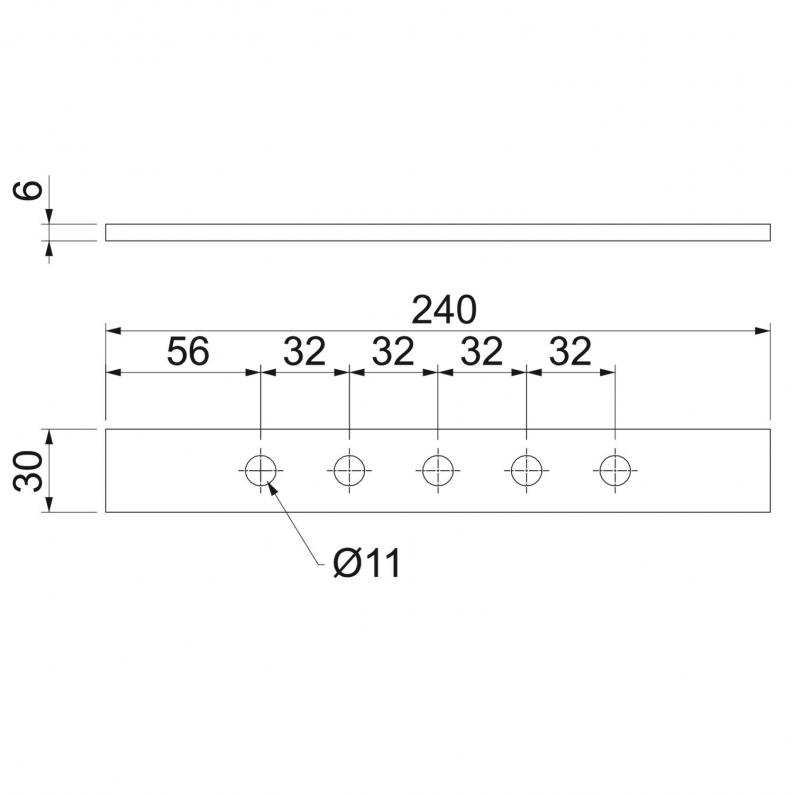

Dimensions
| Length | 240 mm |
|---|---|
| Width | 30 mm |
| Height | 6 mm |
Materials and Packaging
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
Technical data
| Fit | M10 mm |
|---|---|
| Dimension | 240mm |
| Material | Copper |
CO2 footprint (Product Carbon Footprint)
| CO2 Footprint (GWP) Cradle-to-Gate | 1,1572 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Length
Material
Item no.
5700 PIP EB
240
Copper
5106050
5700 PIP EB
Item no.
5106050
Length
240
Material
Copper
