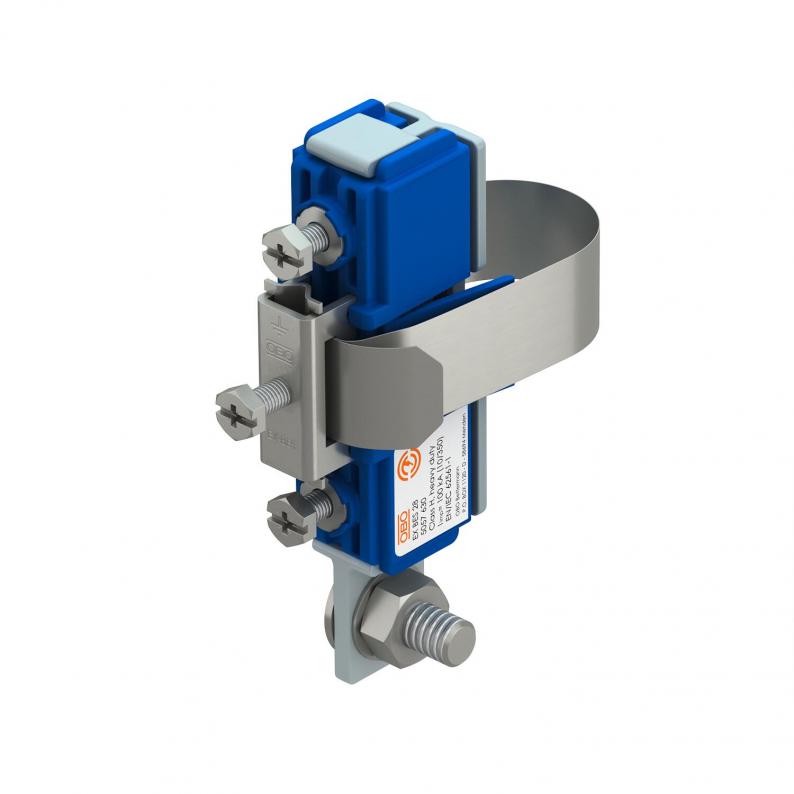

Earthing pipe clamp for EX Zone 1/21, 2/22

Type EX BES 28 | Item no. 5057630 | EAN 4012196672813

Data sheet (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Declaration of conformity (PDF)

Show all variants

Item no. / Type

Dimension L

Smallest selling unit: 1 piece

Description Technical data Downloads Variants

Description

For ignition spark-free protection/functional equipotential bonding according to DIN VDE 0100-410/-540 and ignition spark-free lightning protection equipotential bonding according to VDE 0185-305 (IEC 62305) in systems according to VDE 0165-1 (IEC/EN 60079-14).

• For pipes of 6–500 mm external diameter

• Use in potentially explosive areas, Ex zone 1 and 2/21 and 22

• Tested according to explosion group IIC

• Lightning current carrying capacity class H (100 kA) to VDE 0185-561-1 (IEC/EN 62561-1)

• UV-resistant and halogen-free plastic hood

• Secured with bolts against self-loosening to VDE 0185-305-3, Supplementary Sheet 2

• Suitable for indoor and outdoor applications

Technical data

For pipe diameter, max.	28 mm
For pipe diameter, min.	6 mm
Number of conductors	2
Cross-section of cable to be connected, max.	78 mm²
Cross-section of cable to be connected, min.	16 mm²
Lightning current carrying capacity	H/100 kA
Dimension	28mm
CO2 Footprint (GWP) Cradle-to-Gate	1,9879 kg CO2e / 1 Piece

Dimensions

Dimension L	215 mm

Downloads

0 selected

Data sheet (1)

Catalogues & Flyers (3)

Declarations (3)

Certificates (1)

Instructions and Aid (1)

Product images (3)

3D data downloads (1)

Tender specifications (2)

Variants

Dimension L

EX BES 28

Item no.

5057630

Dimension L

215

EX BES 300

Item no.

5057640

Dimension L

1170

EX BES 500

Item no.

5057645

Dimension L

1800
