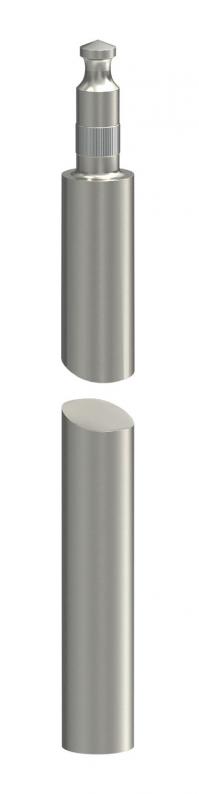

Earth rod V4A 20 mm

Earth rod V4A 20 mm

Type 219 20 BP V4A | Item no. 5000866 | EAN 4012195371830

Show all variants
Item no. / Type
Length
External diameter
Material
Stainless steel 1.4401

Smallest selling unit: 5 piece

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

• "BP" system (Bundespost)
• Very good contacting properties with soft metal inlay in the bore hole
• With peg and bore for linking together
• Conforms to the requirements according to VDE 0185-305 (IEC 62305) and DIN EN 62561-2
• Short circuit current Ik (50 Hz), time 1 s, max. temp. 300 °C: 4.5 kA (219 20 BP V4A)
  • Lightning current-tested
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length1500 mm
Dimension L1500 mm

Technical data

Profile typeRound D=20 mm
External diameter20 mm
Short-circuit current (50 HZ)(1 s;≤300°C)4,2 kA
Lightning current carrying capacityH1/150 kA
Dimension1,5m
MaterialStainless steel 1.4401
CO2 Footprint (GWP) Cradle-to-Gate18,6066 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Instructions and Aid (2)
Product images (3)
3D data downloads (1)
Tender specifications (2)

Accessories

Mounting accessories
Type
1819 20BP

Smallest selling unit: 5 piece

Type
1820 20

Smallest selling unit: 1 piece

Type
2760 20 V4A

Smallest selling unit: 5 piece

Variants

Length
219 20 BP V4A
Item no.
5000858
Length
1000
External diameter
20
Material
Stainless steel 1.4401
219 20 BP V4A
Item no.
5000866
Length
1500
External diameter
20
Material
Stainless steel 1.4401
