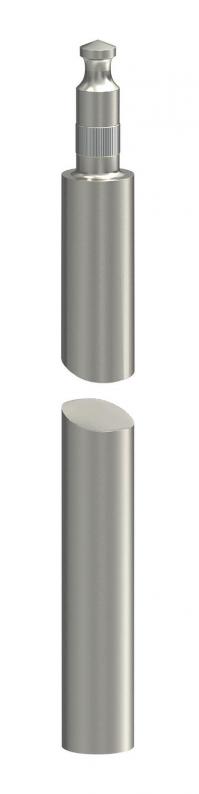

Earth rod V4A 20 mm

Type 219 20 BP V4A | Item no. 5000858 | EAN 4012195740650

Data sheet (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Show all variants

Item no. / Type

Length

External diameter

Material

Stainless steel 1.4401

Smallest selling unit: 5 piece

Description Technical data Downloads Accessories Variants

Description

• "BP" system (Bundespost)
• Very good contacting properties with soft metal inlay in the bore hole
• With peg and bore for linking together
• Conforms to the requirements according to VDE 0185-305 (IEC 62305) and DIN EN 62561-2
• Short circuit current Ik (50 Hz), time 1 s, max. temp. 300 °C: 4.5 kA (219 20 BP V4A)

Technical data

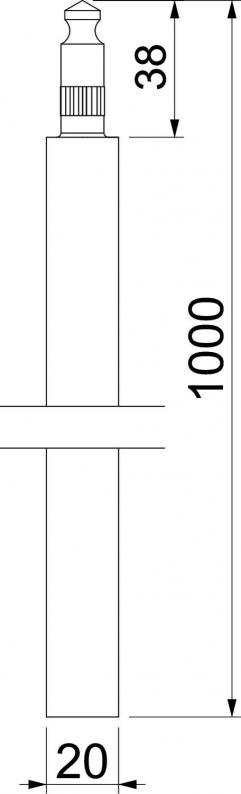

Dimensions

Length	1000 mm
Dimension L	1000 mm

Technical data

Profile type	Round D=20 mm
External diameter	20 mm
Short-circuit current (50 HZ)(1 s;≤300°C)	4,2 kA
Lightning current carrying capacity	H1/150 kA
Dimension	1m
Material	Stainless steel 1.4401
CO2 Footprint (GWP) Cradle-to-Gate	12,3875 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)

Catalogues & Flyers (4)

Declarations (2)

Instructions and Aid (2)

Product images (2)

3D data downloads (1)

Tender specifications (2)

Accessories

Mounting accessories

Item no. 3041212

Driving spike for ST and BP earth rod

Type

1819 20BP

Smallest selling unit: 5 piece

Item no. 3042200

Driving head for ST, BP and OMEX earth rods

Type

1820 20

Smallest selling unit: 1 piece

Item no. 5001633

Connection clip for earth rod, universal A4

Type

2760 20 V4A

Smallest selling unit: 5 piece

Variants

Length

219 20 BP V4A

Item no.

5000858

Length

1000

External diameter

Material

Stainless steel 1.4401

219 20 BP V4A

Item no.

5000866

Length

1500

External diameter

Material

Stainless steel 1.4401
