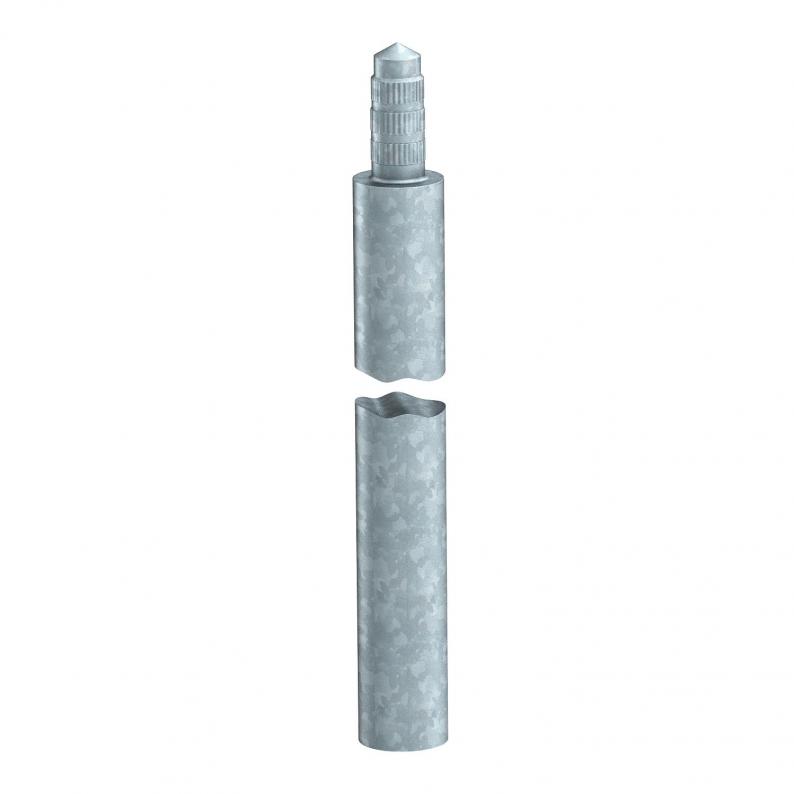

Earth rod for standard applications, hot galvanised, 25 mm
Type 219 25 ST FT | Item no. 5000769 | EAN 4012195111047
Item no. / Type
5000769 / 219 25 ST FT
Material
Steel
Smallest selling unit: 5 piece
5piece
Description
• High corrosion resistance
• Zinc support approx. 130 µm
• With peg and bore for linking together
• Round pegs with three knurls
• Conforms to the requirements according to VDE 0185-305 (IEC 62305) and DIN EN 62561-2
• Short-circuit current Ik (50 Hz), time 1 s, temp. max. 300 °C: 12.3 kA
• Zinc support approx. 130 µm
• With peg and bore for linking together
• Round pegs with three knurls
• Conforms to the requirements according to VDE 0185-305 (IEC 62305) and DIN EN 62561-2
• Short-circuit current Ik (50 Hz), time 1 s, temp. max. 300 °C: 12.3 kA
Technical data

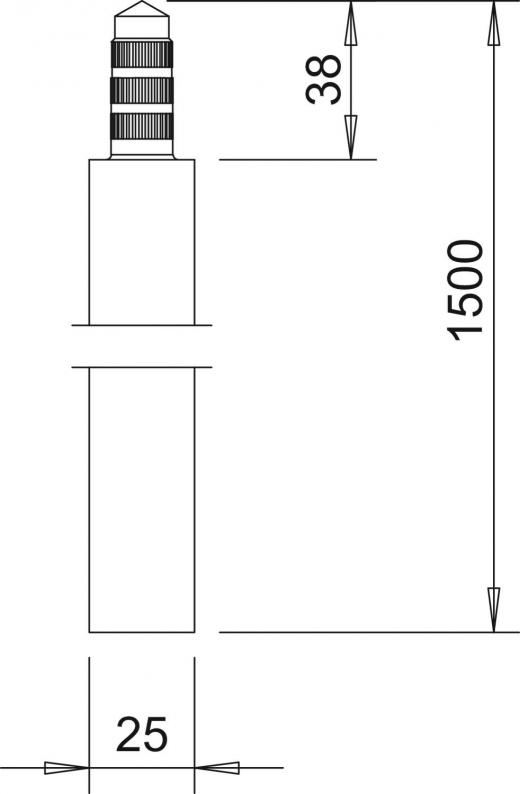

Dimensions
| Length | 1500 mm |
|---|
Technical data
| Profile type | Round D=25 mm |
|---|---|
| External diameter | 25 mm |
| Short-circuit current (50 HZ)(1 s;≤300°C) | 12,3 kA |
| Lightning current carrying capacity | H/100 kA |
| Dimension | 1,5m |
| Surface | Hot-dip galvanised |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 15,7568 kg CO2e / 1 Piece |
