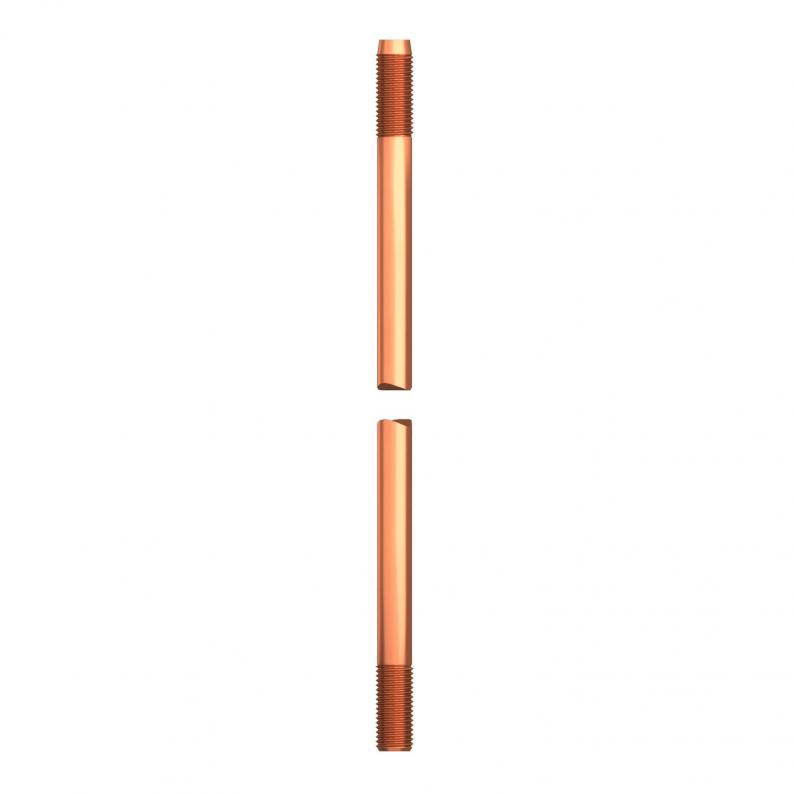

Earth rod BS with copper sheath
Type 219 16 CU
|Item no. 5000481
|EAN 4012196431229
Item no. / Type
5000481 / 219 16 CU

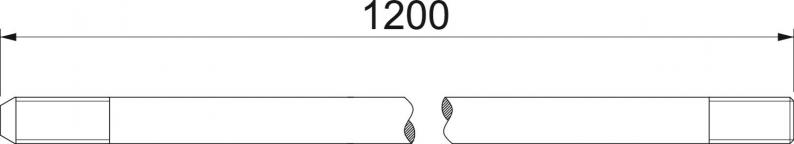

Length
1200 mm
External diameter
14,2 mm
Material
Steel
Smallest selling unit: 5 piece
5piece
piece
Description
• Made of steel with a copper jacket of min. 0.25 mm
• With thread for linking together
• Tensile strength min. 600 N/mm²
• Meets the requirements of VDE 0185-305 (IEC 62305)
• With thread for linking together
• Tensile strength min. 600 N/mm²
• Meets the requirements of VDE 0185-305 (IEC 62305)
Technical data
Dimensions
| Length | 1200 mm |
|---|---|
| Dimension D | 16 mm |
Technical data
| Profile type | Miscellaneous |
|---|---|
| External diameter | 14,2 mm |
| Dimension | 1200 |
| Surface | Copper-plated |
| Material | Steel |
Environmental Data
0,0074 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0074 kg CO2e / 1 Piece |
|---|
