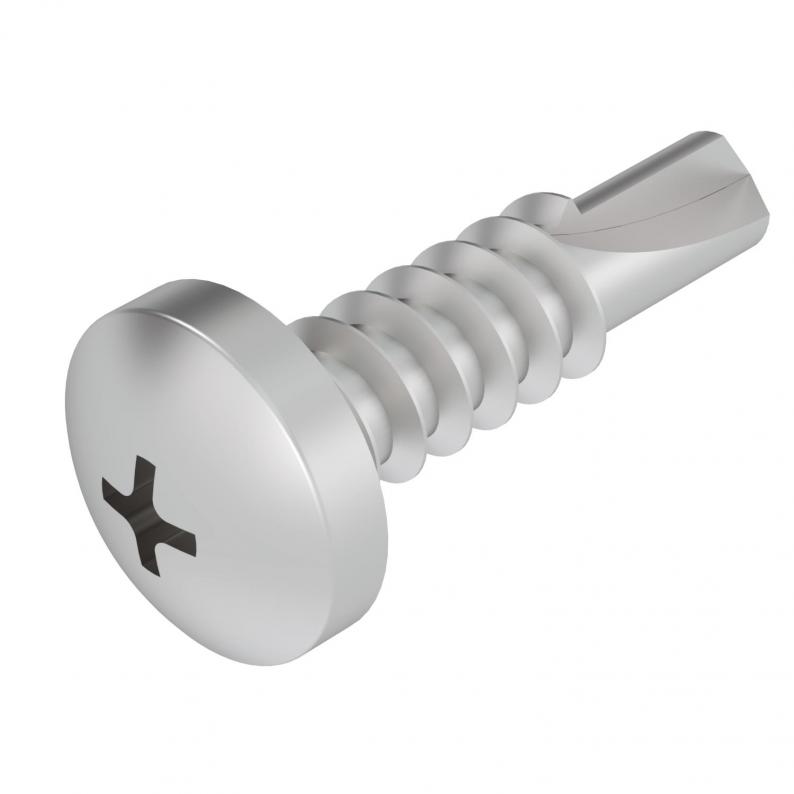

Drilling screw
Type BS BKS KP | Item no. 6049250 | EAN 4012196147878
Item no. / Type
6049250 / BS BKS KP
Smallest selling unit: 100 piece
100piece
Description
Drilling screw to fasten components to the stand-offs of the walkable cable tray system. Corresponds to DIN 7504.
Technical data

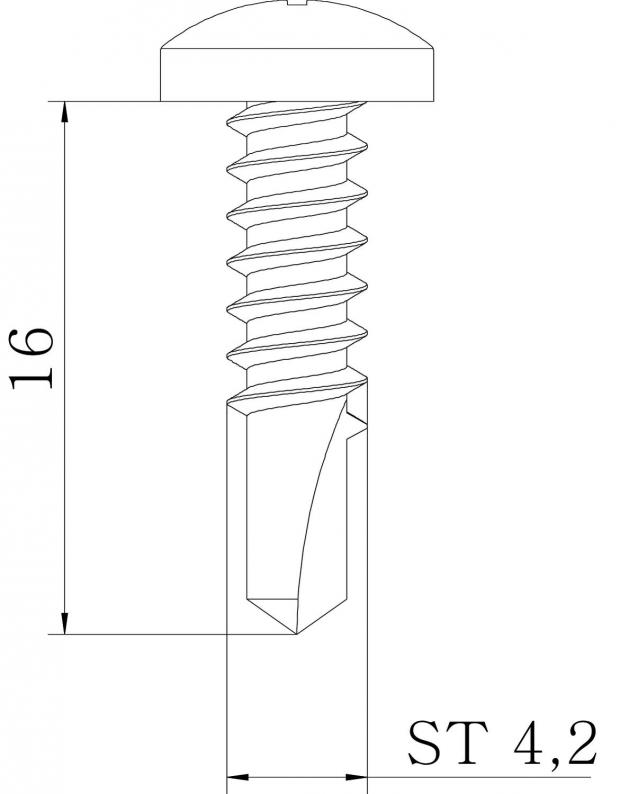

Dimensions
| Length | 16 mm |
|---|---|
| Dimension d | 4,2 mm |
| Dimension l | 16 mm |
Technical data
| Dimension | 4,2x16 |
|---|---|
| Thread diameter ST | 4,2 |
| Head shape | Flat sphere |
| Screw system | Phillips PH |
| Dimension | M4,2x16 |
| Surface | Electrogalvanized |
| Material | Steel |
| Colour | zinc |
