DR 920 PE cable protection ring
Type KSR-DR 920 PE
|Item no. 6087965
|EAN 4012196346639
Item no. / Type
6087965 / KSR-DR 920 PE
Smallest selling unit: 25 piece
25piece
piece
Description

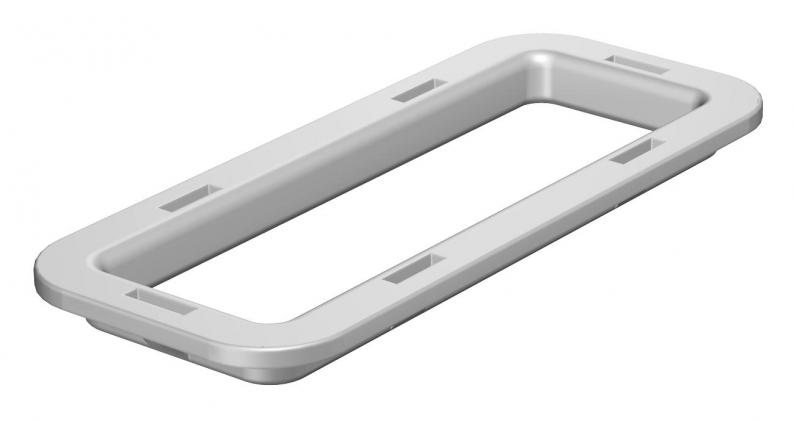

Cable protection ring for side perforation in the side rails of the IKS cable tray.
Technical data

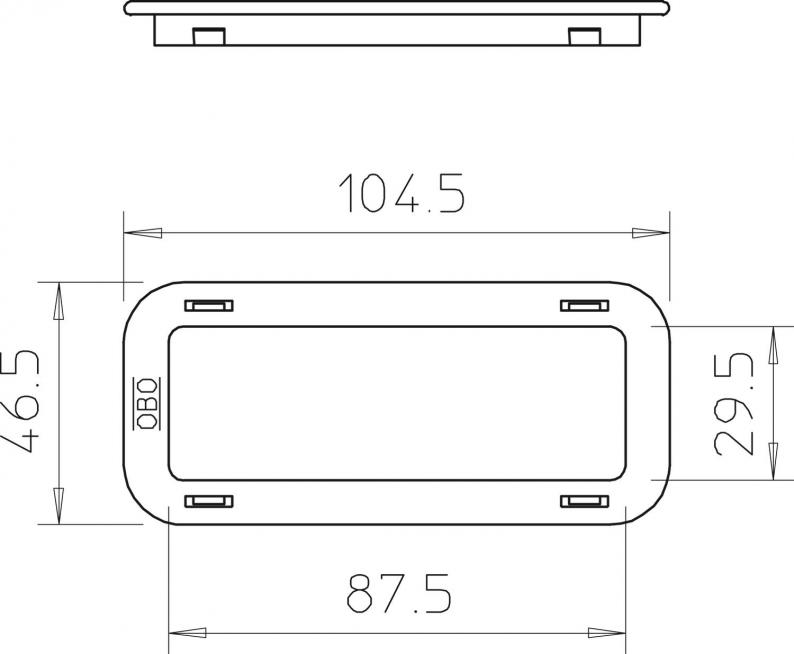

Dimensions
| Length | 101 mm |
|---|---|
| Width | 43 mm |
| Height | 7,5 mm |
| Dimension L | 87,5 mm |
| Dimension b | 29,5 mm |
Materials and Packaging
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
Technical data
| Halogen-free | yes |
|---|---|
| Hole width | 32 mm |
| Suitable for | Cable tray |
| Type | Injection-moulded part |
| Material | Polyethylene |
| Colour | Light grey |
| Type of accessory | Miscellaneous |
| Accessories | yes |
| Spare part | no |
CO2 footprint (Product Carbon Footprint)
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0223 kg CO2e / 1 Piece |
|---|
