Dolü branch terminals, open on one side
Type 70 S | Item no. 2055201 | EAN 4012195183853
Item no. / Type
2055201 / 70 S
No. of terminals
12
Smallest selling unit: 10 piece
10piece
Description

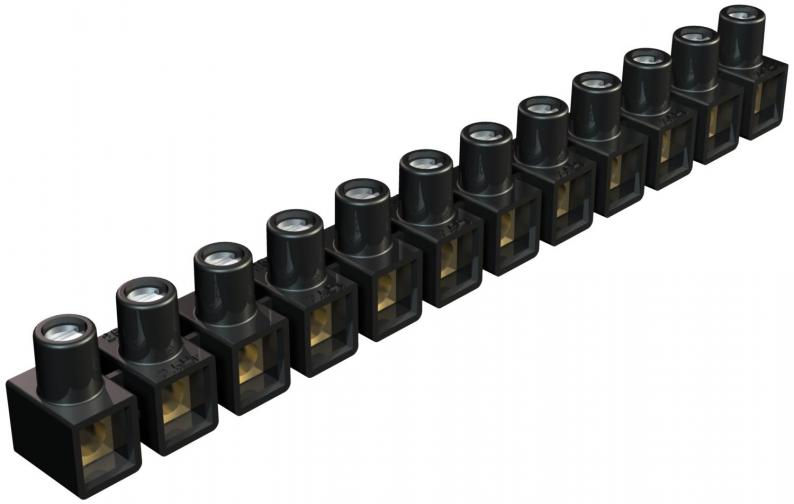

Terminals made of brass, screws of steel, galvanised and transparently passivated, 12-pole, strip separable into individual terminals, only open on one side.
Closed on one side, captive upwards screw.
Nominal cross-section 2.5 ÷ mm².
Nominal voltage 250 V.
Nominal current 24 A.
Max. connectable cross-sections per terminal: 4 x 2.5 mm², 5 x 1.5 mm² or 6 x 1 mm².

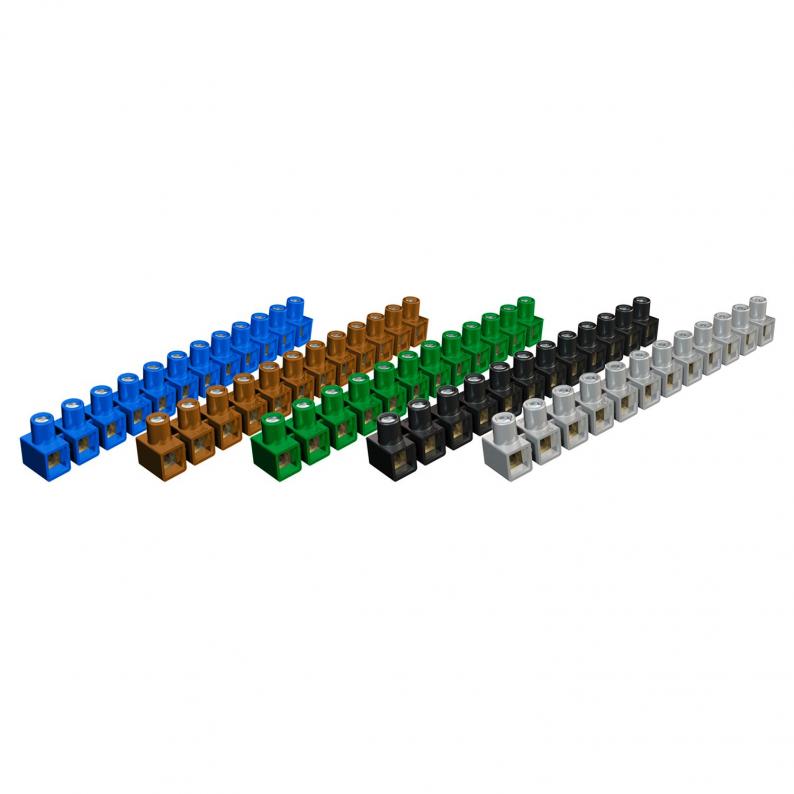

Delivery sorted by colour: 3 black, 2 blue, 3 yellow-green, 1 brown and 1 grey strip in each packaging unit.
Closed on one side, captive upwards screw.
Nominal cross-section 2.5 ÷ mm².
Nominal voltage 250 V.
Nominal current 24 A.
Max. connectable cross-sections per terminal: 4 x 2.5 mm², 5 x 1.5 mm² or 6 x 1 mm².
Delivery sorted by colour: 3 black, 2 blue, 3 yellow-green, 1 brown and 1 grey strip in each packaging unit.
Technical data

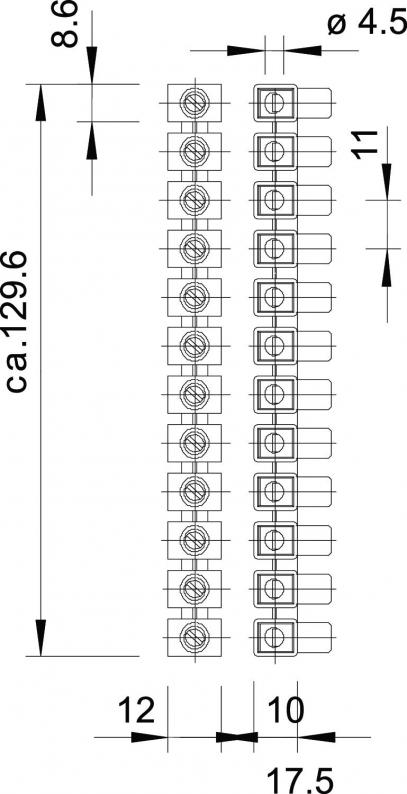

Dimensions
| Length | 129,6 mm |
|---|---|
| Width | 12 mm |
| Height | 17,5 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Pole number | 12 |
| Nominal current | 24 A |
| Nominal voltage | 250 V |
| Explosion-tested version | no |
| Closing plate required | no |
| Drill hole spacing, centre | 11 mm |
| Insulation material | Thermoplast |
| Suitable for solid conductors | no |
| Suitable for flexible conductors | yes |
| Suitable for multi-wire conductors | yes |
| Transparent | no |
| Number of screwless terminals per pole | 1 |
| Version of electrical connection 1 | Screw connection |
| Connection position | Side |
| Connectable conductor cross-section, single-wire, max. | 2,5 mm² |
| Connectable conductor cross-section, single-wire, min. | 1 mm² |
| Nominal cross-section, min. | 2,5 mm² |
| Cross-section | Max. connectable cross-sections per terminal: 4 x 2.5 mm², 5 x 1.5 mm² or 6 x 1 mm² mm² |
| No. of terminals | 12 |
| Dimension | 2,5mm² |
| Material | Polyamide |
| Colour | (sorted) |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2561 kg CO₂e / 1 Piece |
