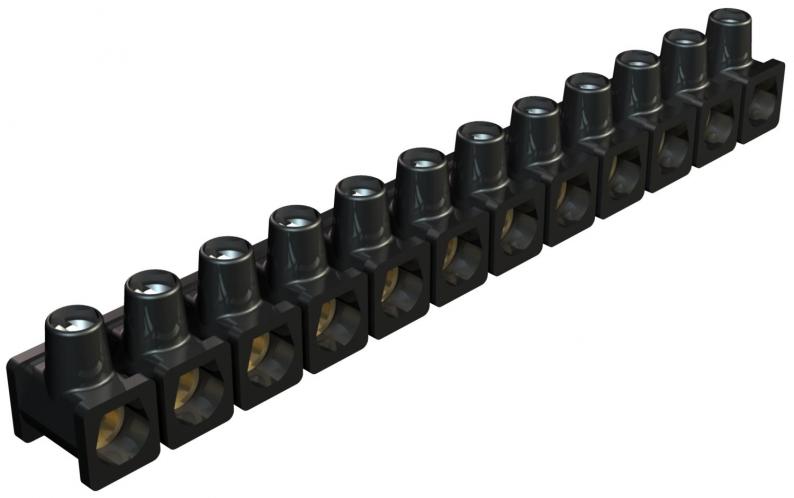

Dolü branch terminals, open on both sides, 12-pole
Type 70 VDE | Item no. 2055023 | EAN 4012195183433
Item no. / Type
2055023 / 70 VDE
No. of terminals
12
Smallest selling unit: 10 piece
10piece
Description

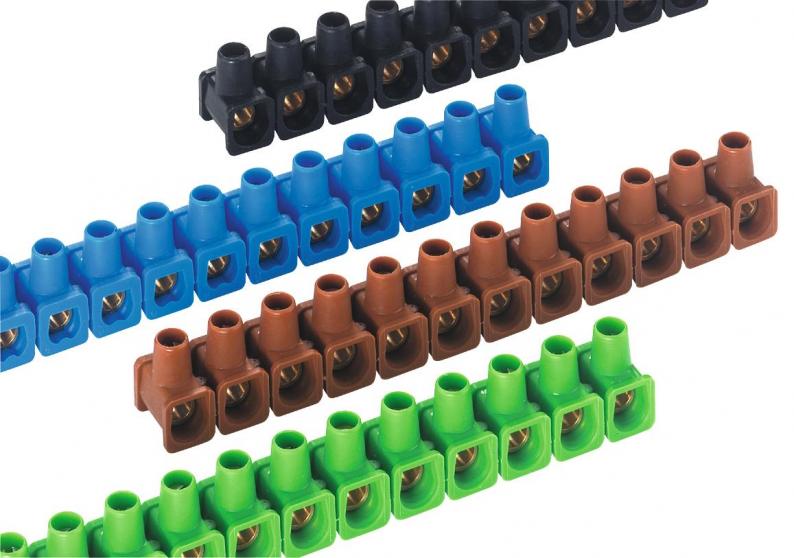

Sorted in colours black, brown, blue and yellow-green.
Terminals made of brass, screws of steel, galvanised and transparently passivated, 12-pole, strip separable into individual terminals, open on both sides.
Captive upwards screw.
Nominal cross-section 2.5 ÷ mm².
Nominal voltage 380 V.
Nominal current 16 A.
Max. connectable cross-sections per terminal: 4 x 2.5 mm², 5 x 1.5 mm² or 6 x 1 mm².
Delivery sorted by colour: 5 black, 2 blue, 2 yellow-green and 1 brown strip in each packaging unit.
Terminals made of brass, screws of steel, galvanised and transparently passivated, 12-pole, strip separable into individual terminals, open on both sides.
Captive upwards screw.
Nominal cross-section 2.5 ÷ mm².
Nominal voltage 380 V.
Nominal current 16 A.
Max. connectable cross-sections per terminal: 4 x 2.5 mm², 5 x 1.5 mm² or 6 x 1 mm².
Delivery sorted by colour: 5 black, 2 blue, 2 yellow-green and 1 brown strip in each packaging unit.
Technical data

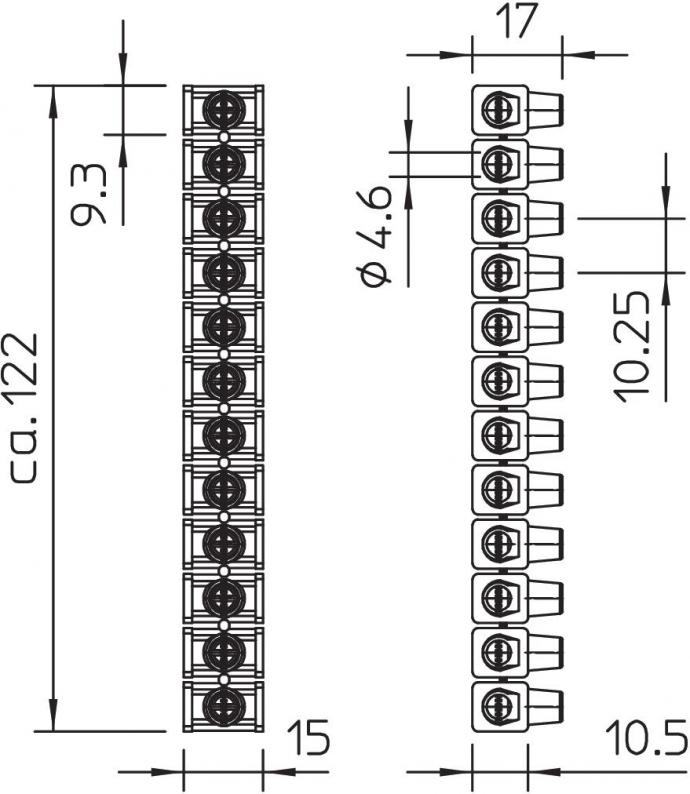

Dimensions
| Length | 122 mm |
|---|---|
| Width | 15 mm |
| Height | 17 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Pole number | 12 |
| Nominal current | 16 A |
| Nominal voltage | 380 V |
| Explosion-tested version | no |
| Closing plate required | no |
| Drill hole spacing, centre | 10,25 mm |
| Insulation material | Thermoplast |
| Suitable for solid conductors | no |
| Suitable for flexible conductors | yes |
| Suitable for multi-wire conductors | yes |
| Transparent | no |
| Number of screwless terminals per pole | 1 |
| Version of electrical connection 1 | Screw connection |
| Connection position | Side |
| Connectable conductor cross-section, single-wire, max. | 2,5 mm² |
| Connectable conductor cross-section, single-wire, min. | 1 mm² |
| Nominal cross-section, min. | 2,5 mm² |
| Cross-section | Max. connectable cross-sections per terminal: 4 x 2.5 mm², 5 x 1.5 mm² or 6 x 1 mm² mm² |
| No. of terminals | 12 |
| Dimension | 2,5mm² |
| Material | Polyamide |
| Colour | (sorted) |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1012 kg CO₂e / 1 Piece |
