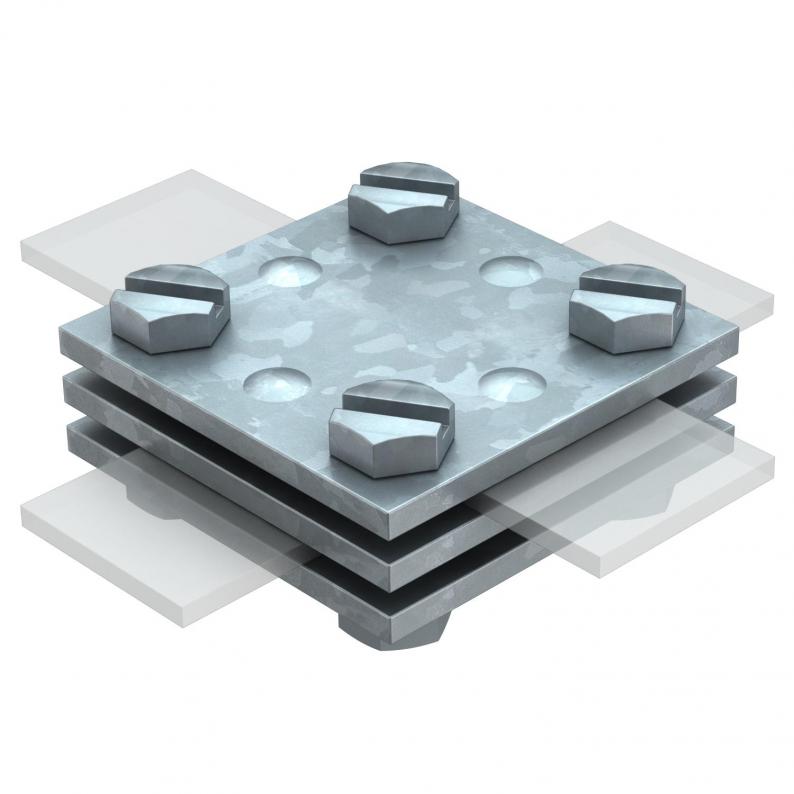

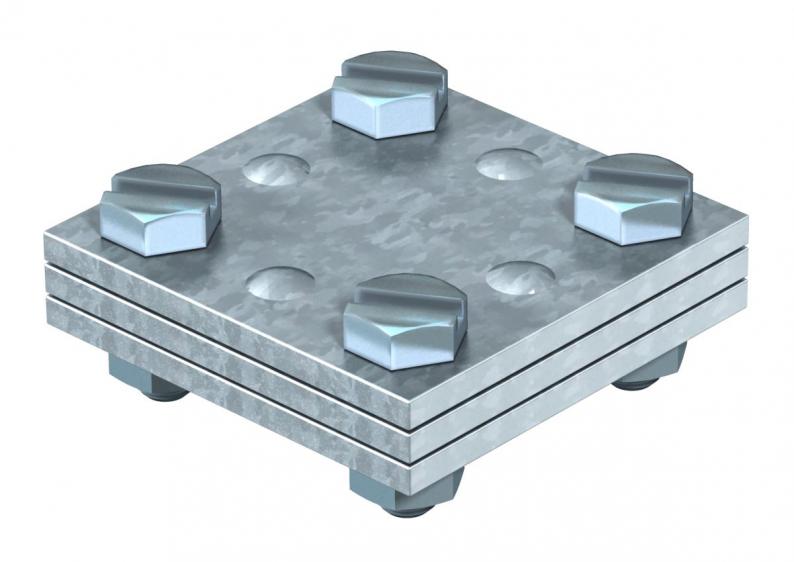

DIN cross-connector for flat conductor, with intermediate plate

DIN cross-connector for flat conductor, with intermediate plate

Type 256 DIN 30 FT | Item no. 5314615 | EAN 4012195419297

Show all variants
Item no. / Type
Fit
Surface
Hot-dip galvanised

Smallest selling unit: 10 piece

DescriptionTechnical dataDownloadsVariants

Description

• Meets the requirements of VDE 0185-305-3 (IEC/EN 62305-3)

• Fit: Max. FL 30 x FL 30 or max. FL 40 x FL 40

• With adapter plate

• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8
  • Lightning current-tested
  • CO₂ footprint (PCF)

Technical data

Technical data

Intermediate plateyes
Type of fastening screwHexagonal bolt
Type of connectorCross-connectors
Suitable for connectionFlat conductor Fl 30 / Fl 30
Lightning current carrying capacityH/100 kA
Fitmax. FL30 mm
Dimension30mm
SurfaceHot-dip galvanised
MaterialSteel
CO2 Footprint (GWP) Cradle-to-Gate0,6083 kg CO2e / 1 Piece

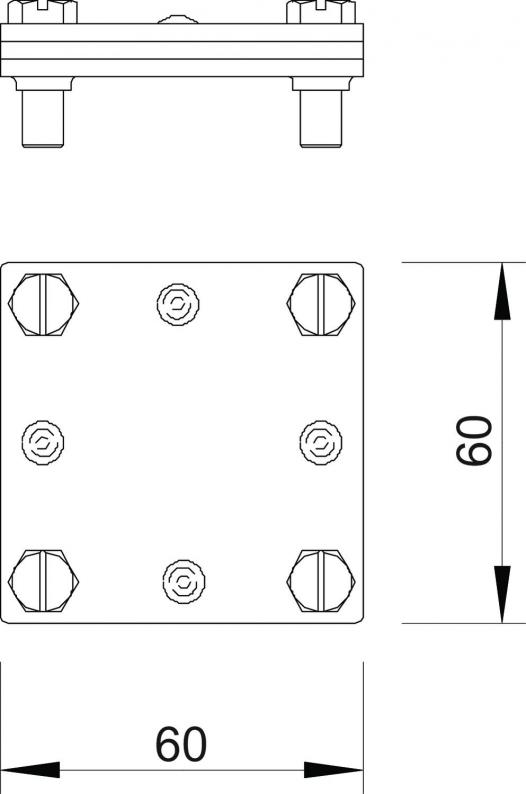

Dimensions

Dimension A60 mm
Dimension B60 mm

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Instructions and Aid (2)
Product images (3)
3D data downloads (1)
Tender specifications (2)

Variants

Fit
256 DIN 30 FT
Item no.
5314615
Fit
max. FL30
Surface
Hot-dip galvanised
256 DIN 40 FT
Item no.
5314623
Fit
max. FL40
Surface
Hot-dip galvanised
